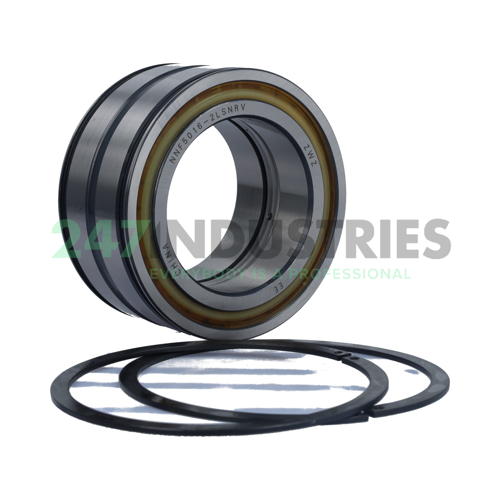

NNF5016-2LS-NR-V ZWZ

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 125
3. Width (B) MM 60
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.9213
6. Width (B) Inch 2.3622

Suffix description

1. 2LS LS Contact Seal On Both Sides Of The Bearing
2. NR Two Locking Groove In Outer Ring
3. V Bearing Without Cage, With Full Complement Of Rolling Elements

Technical details

1. Availability 0 pcs
2. Brand ZWZ
3. Item number NNF5016-2LS-NR-V ZWZ
4. Also known as NNF5016ADA-2LSV
   SL045016-D-PP-2NR

5. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.71

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2L - LS-seal at Both Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification 2R - 2 Snap Rings in O.D.
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
