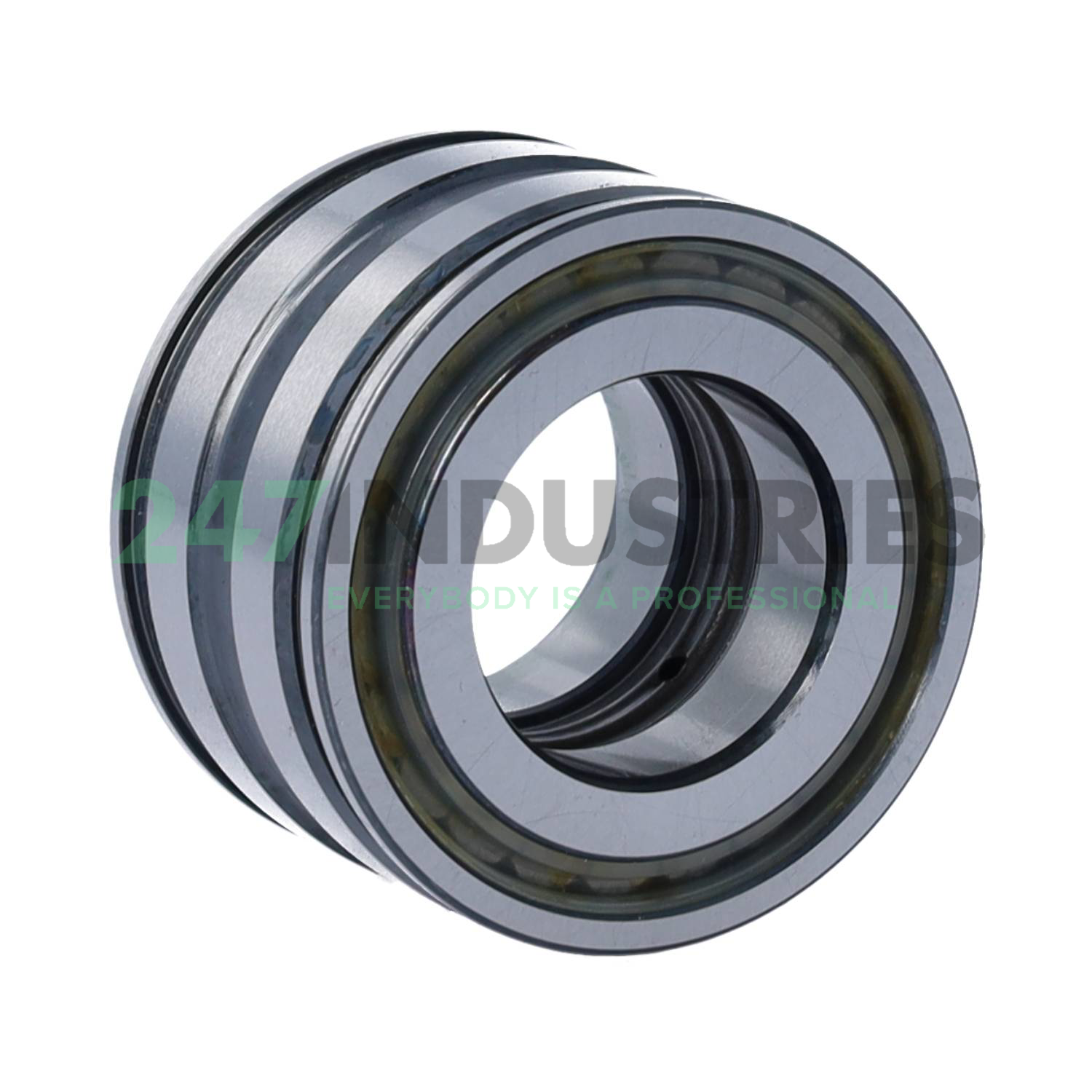

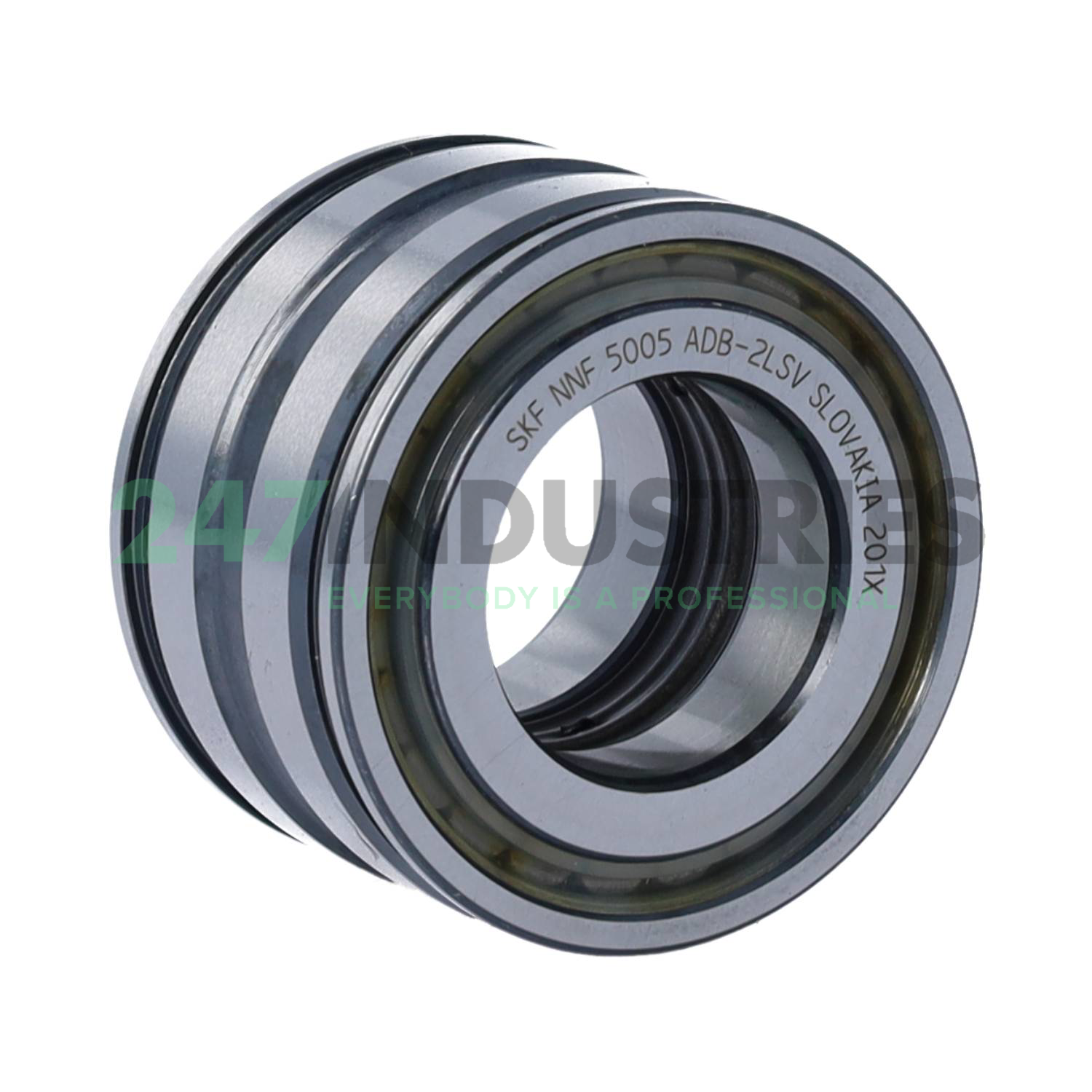

NNF5005ADB-2LSV SKF

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 47,00
3. Width (B) MM 30,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.1811

Suffix description

1. ADB Modified Snap Ring Grooves In The Outer Ring; Two-Piece Inner Ring Held Together By A Retaining Ring
2. 2LS Contact Seal Of Polyurethane (AU) On Both Sides Of The Bearing,
3. V Full Complement Of Rollers (Without Cage)

Technical details

1. Availability 10 pcs
2. Brand SKF
3. Item number NNF5005ADB-2LSV SKF
4. EAN 7316572507735
5. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.23

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2L - LS-seal at Both Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification 2R - 2 Snap Rings in O.D.
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
