NNCF5013CV Rollway

€ 96,88 ex VAT
€ 117,23 in VAT
€ 117,23 in VAT
€ 96,88 ex VAT

33 similar products for NNCF5013CV Rollway in stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

NNCF5013CV Rollway

Double-row full-complement cylindrical roller bearing

Stock
not in stock
Brand Rollway
Article number NNCF5013CV Rollway
Inside diameter 65mm
Outside diameter 100mm
Width 46mm
Product description

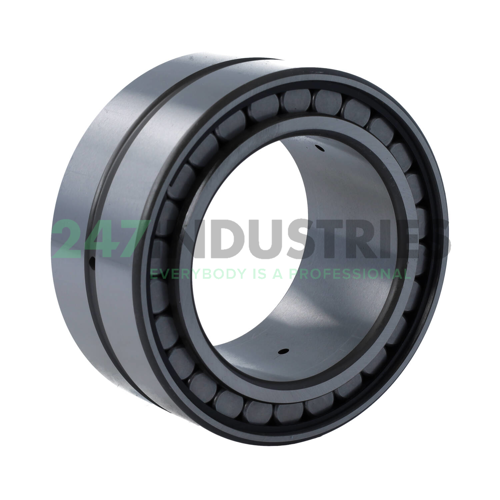

The NNCF5013CV Rollway is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Help with this product

Similar to: NNCF5013CV Rollway

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 65
  2. Outer (D) MM 100
  3. Width (B) MM 46
  4. Inner (d) Inch 2.5591
  5. Outer (D) Inch 3.937
  6. Width (B) Inch 1.811

Suffix description

  1. C Deviating Or Modified Internal Design With Same Boundary Dimensions
  2. V Full Complement Of Rollers (Without Cage)

Technical details

  1. Availability 0 pcs
  2. Brand Rollway
  3. Item number NNCF5013CV Rollway
  4. Also known as SL185013-A
  5. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 1.32

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type FC - Full Complement, No Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
