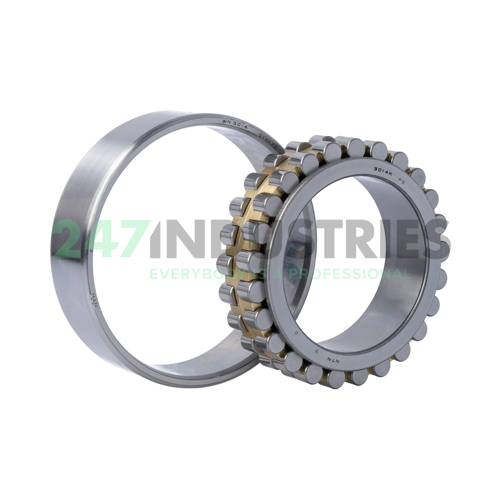

NN3014KC1NAP5 NTN

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 110
3. Width (B) MM 30
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.1811

Suffix description

1. K Tapered Bore, Taper 1:12
2. C1NA Non-Interchangeable Radial Internal Clearance For Cylindrical Roller Bearing
3. P5 ISO Precision class P5

Technical details

1. Availability 2 pcs
2. Brand NTN
3. Item number NN3014KC1NAP5 NTN
4. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.02

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C1 Internal Play (Less than C2)
6. Precision P5 Precision (Higher than P6)
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
