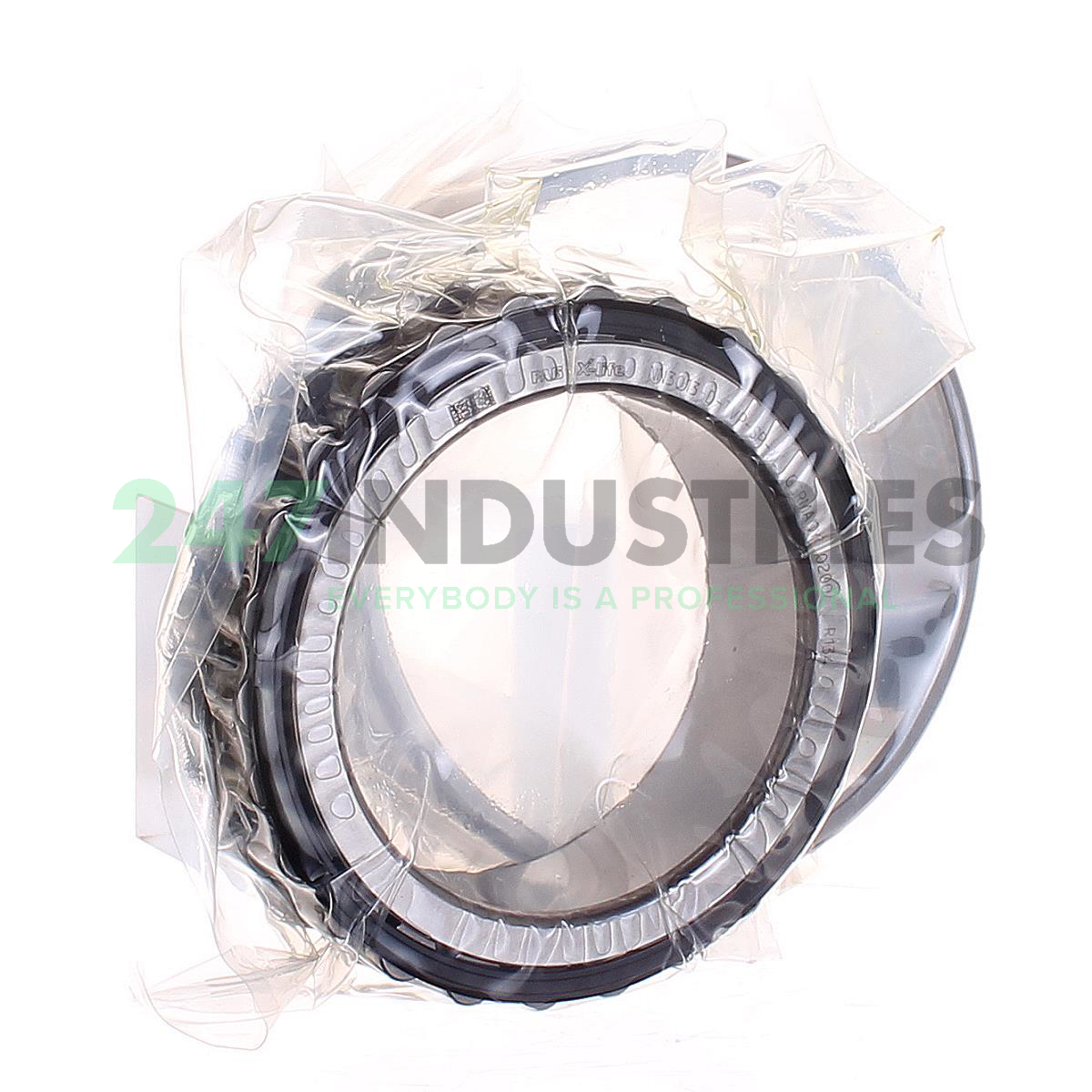

NN3013-D-TVP-SP-XL FAG

All dimensions

1. Inner (d) MM 65,00
2. Outer (D) MM 100,00
3. Width (B) MM 26,00
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.9370
6. Width (B) Inch 1.0236
7. Width (b) mm 26,00

Suffix description

1. D Bearings With A Modified Internal Construction And The Suffix D Do Not Have A Lubrication Hole Or Lubrication Groove As Standard
2. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding
3. SP Super Precision Specification, Tolerance Class SP, Radial Clearance C1
4. XL X-Life

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number NN3013-D-TVP-SP-XL FAG
4. Also known as 0929766970000
   NN3013-D-TVP-SP

5. EAN 4054371105914
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.686

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision SP - Precision Higher than P4S
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 116000
2. Radial Dynamic Load Rating Cr (N) 91000
3. Basic static load rating, radial (C 0r) "116000.0000"
4. Fatigue load limit, radial (C ur) "19000.0000"
5. Limiting speed for grease lubrication (n G Grease) "10800.0000"
6. Limiting speed for oil lubrication (n G Oil) "12700.0000"
7. ECLASS number 23-05-09-01
8. ECLASS2 number 23-05-09-01
9. Medias description Cylindrical roller bearing NN..-D-TVP-SP-XL, with cage, two-row, non-locating bearing, 0 ribs on outer ring (smooth), 3 ribs on inner ring, type NN
