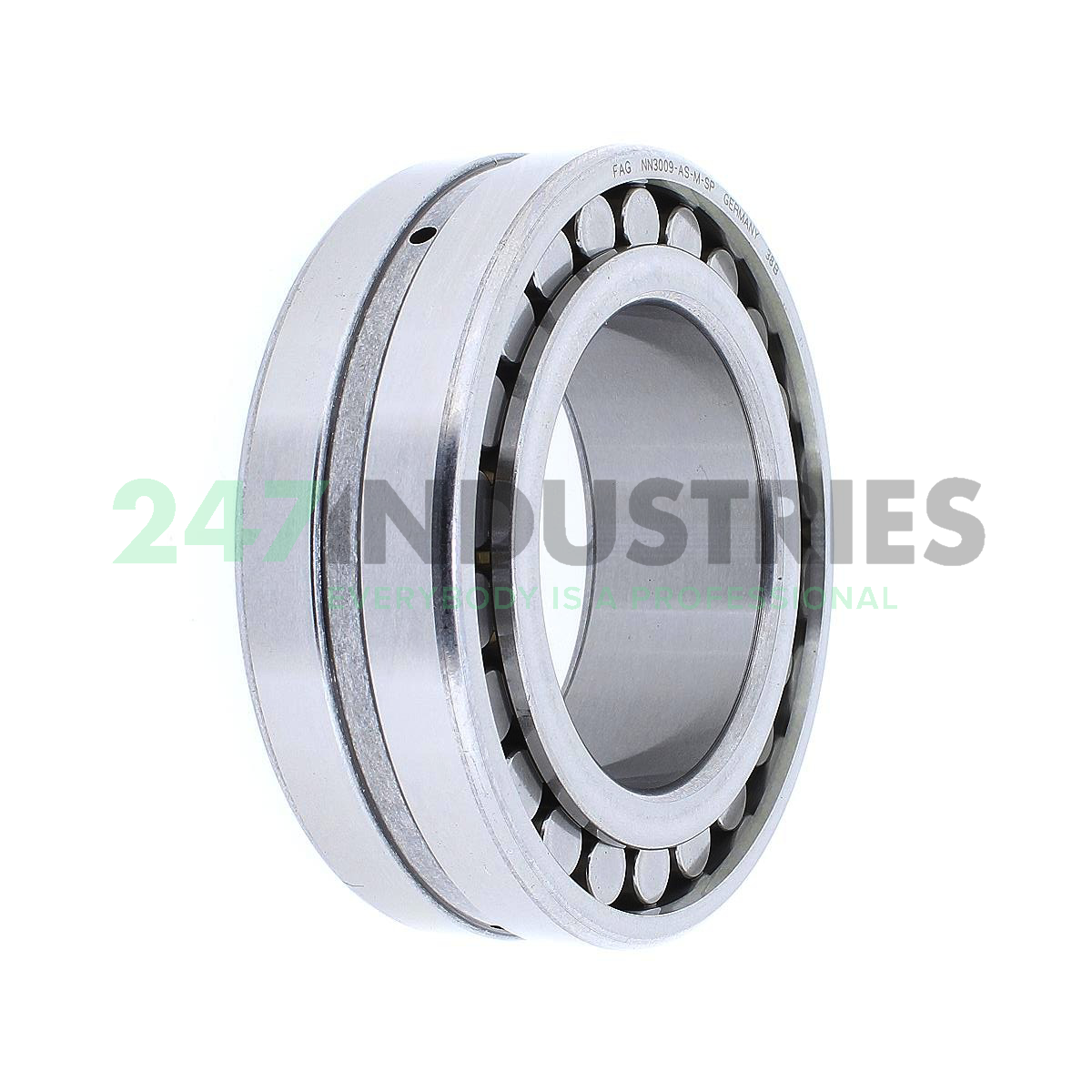

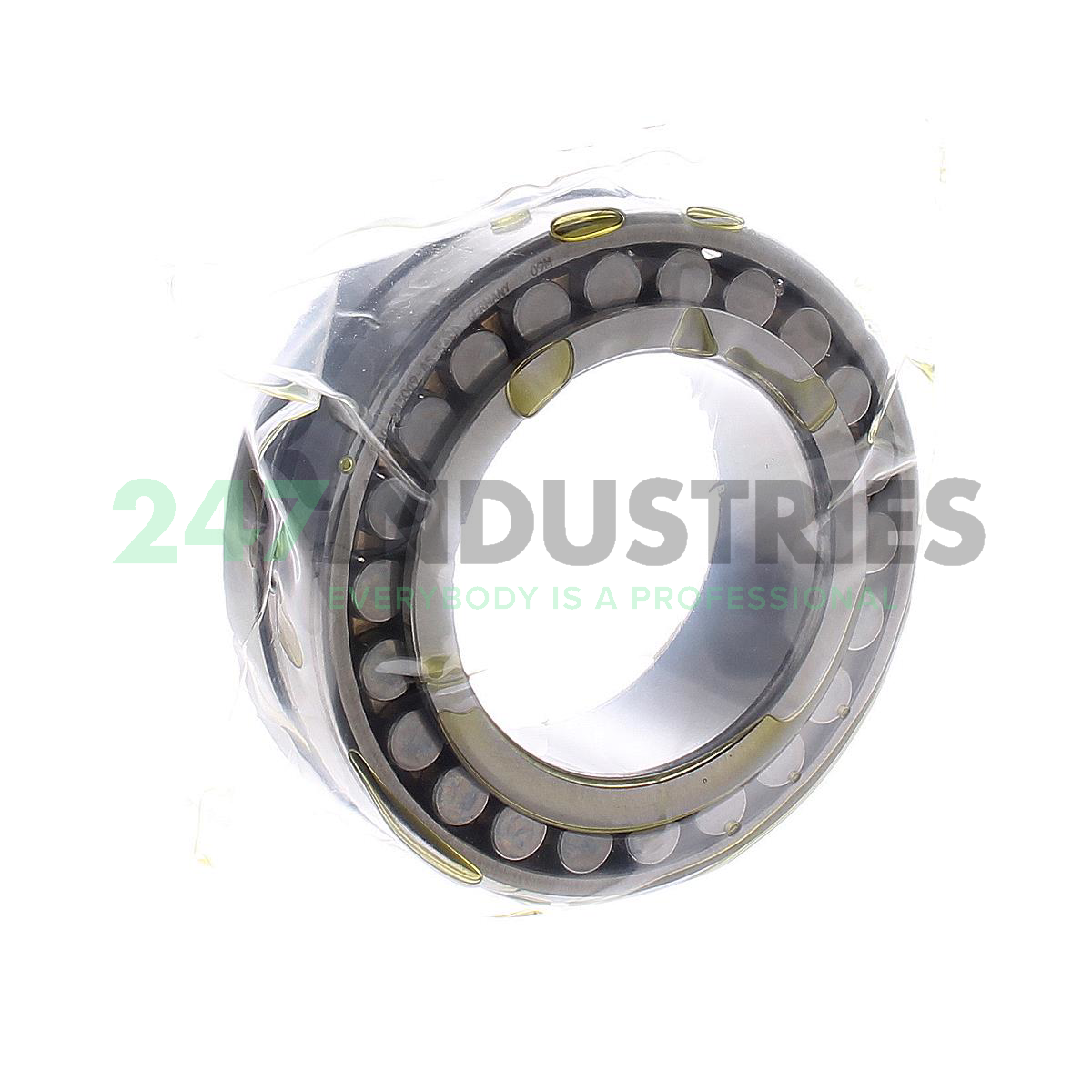

NN3009-AS-M-SP FAG

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 75,00
3. Width (B) MM 23,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.9528
6. Width (B) Inch 0.9055

Suffix description

1. A Cylindrical Roller Bearings, Parts Interchangeable
2. S Lubrication Groove And Three Holes In Bearing Outer Ring
3. M Solid Brass Cage, Roller Guided
4. SP Super Precision Specification, Tolerance Class SP, Radial Clearance C1

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number NN3009-AS-M-SP FAG
4. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.384

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision SP - Precision Higher than P4S
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
