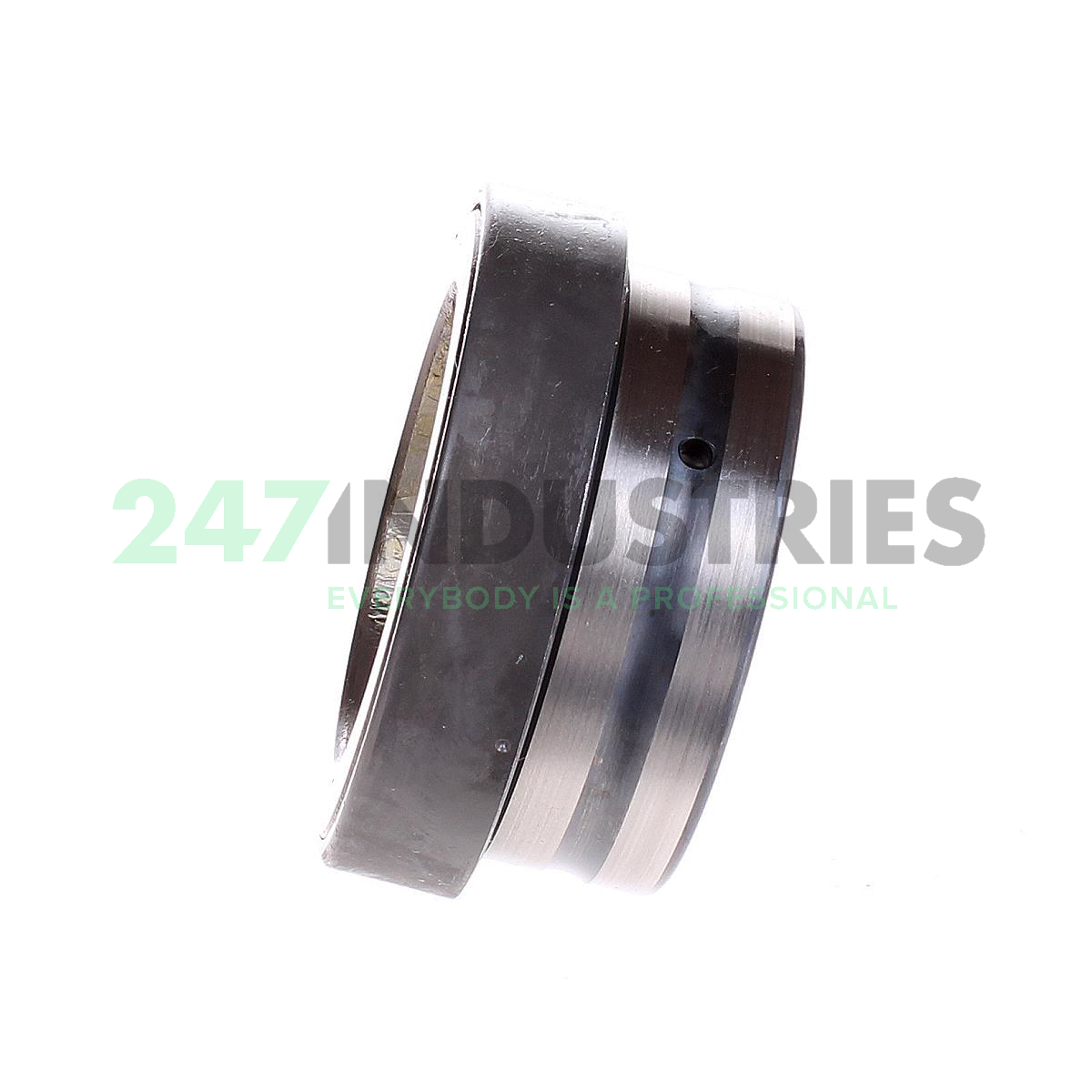

NKXR45-Z-XL INA

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 58,00
3. Width (B) MM 32,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.2835
6. Width (B) Inch 1.2598
7. Height (C) mm 32,00

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. XL X-Life

Technical details

1. Availability 19 pcs
2. Brand INA
3. Item number NKXR45-Z-XL INA
4. Also known as 0507918340000
   NAXR45X.Z
   NKXR45-Z

5. EAN 4012802736274
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.26

Product Properties

1. Seal Z - Steel Seal on One Side

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "59000.0000"
2. Radial Static Load Rating C0r (N) 53000
3. Radial Dynamic Load Rating Cr (N) 31000
4. Axial Static Load Rating C0a (N) 163000
5. Basic static load rating, axial (C 0a) "163000.0000"
6. Basic static load rating, radial (C 0r) "53000.0000"
7. Axial Dynamic Load Rating Ca (N) 59000
8. Limiting speed (n G) "5000.0000"
9. Reference speed (n ϑr) "1900.0000"
10. ECLASS number 23-05-12-03
11. ECLASS2 number 23-05-12-03
12. Medias description Needle roller/axial cylindrical roller bearings NKXR..-Z, axial component, single direction, to DIN 5429, with end cap, for grease lubrication
