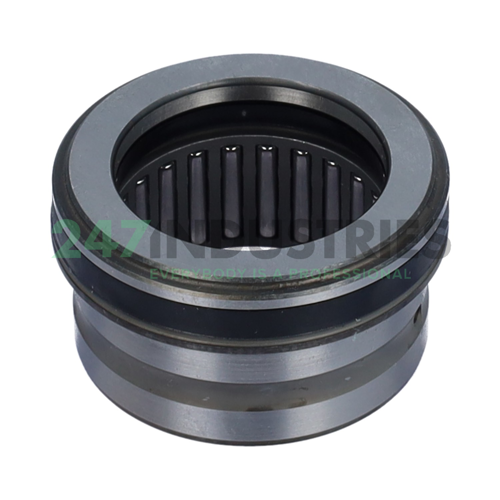

NKXR35-XL INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 47
3. Width (B) MM 30
4. Inner (d) Inch 1.378
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.1811
7. Height (C) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 12 pcs
2. Brand INA
3. Item number NKXR35-XL INA
4. Also known as 0507807780000
   NKXR35

5. EAN 4012802704693
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.156

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 41500
2. Radial Dynamic Load Rating Cr (N) 27500
3. Axial Static Load Rating C0a (N) 101000
4. Axial Dynamic Load Rating Ca (N) 39000
5. Limiting speed (n G) 6500
6. Reference speed (n ϑr) 2500
7. ECLASS number 23-05-12-03
8. ECLASS2 number 23-05-12-03

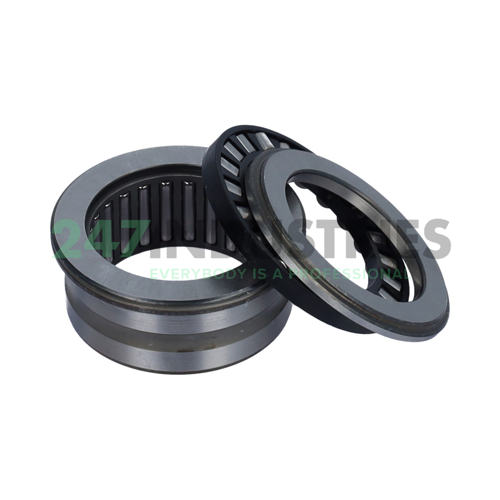

9. Medias description Needle roller/axial cylindrical roller bearings NKXR, axial component, single direction, to DIN 5429, without end cap, for oil lubrication
