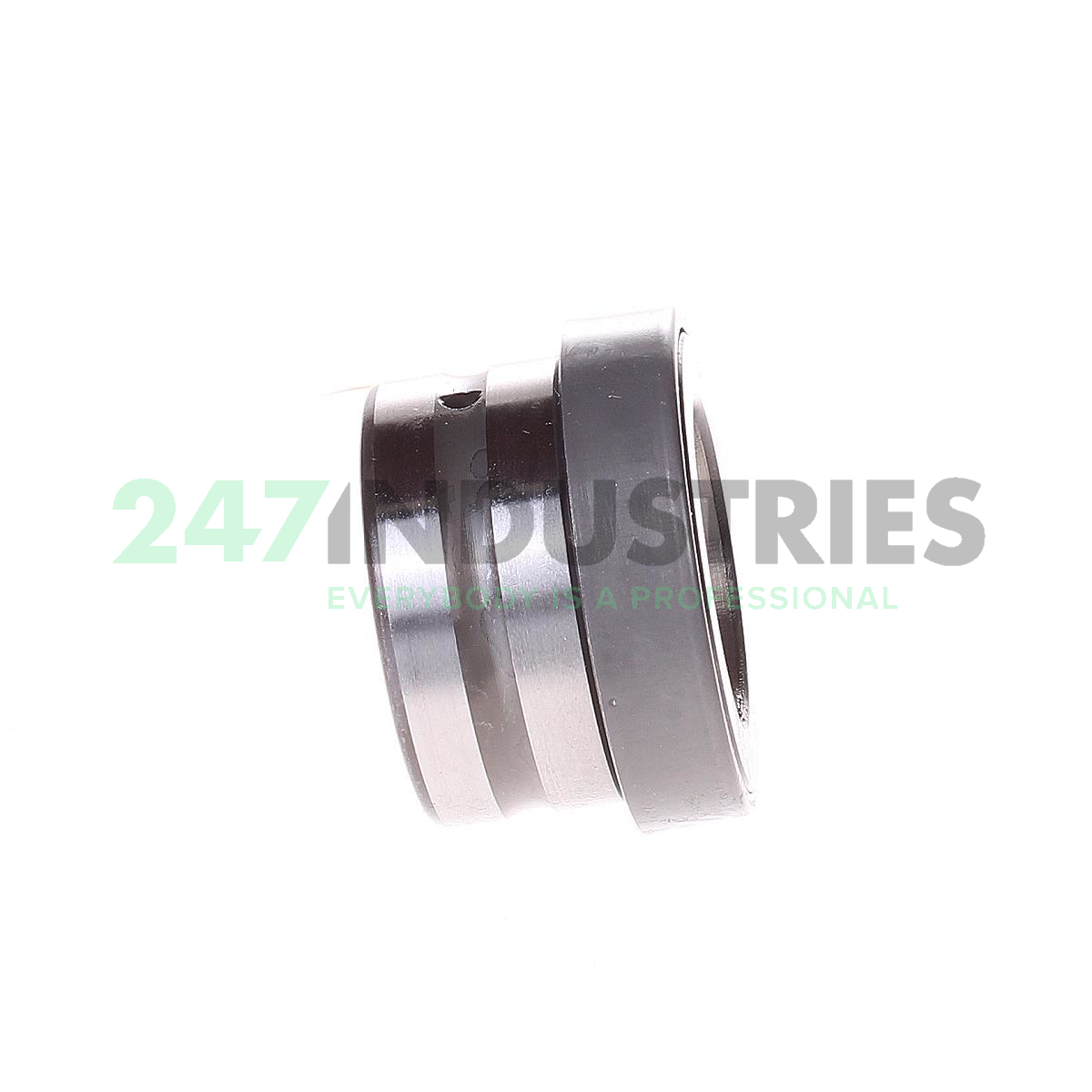

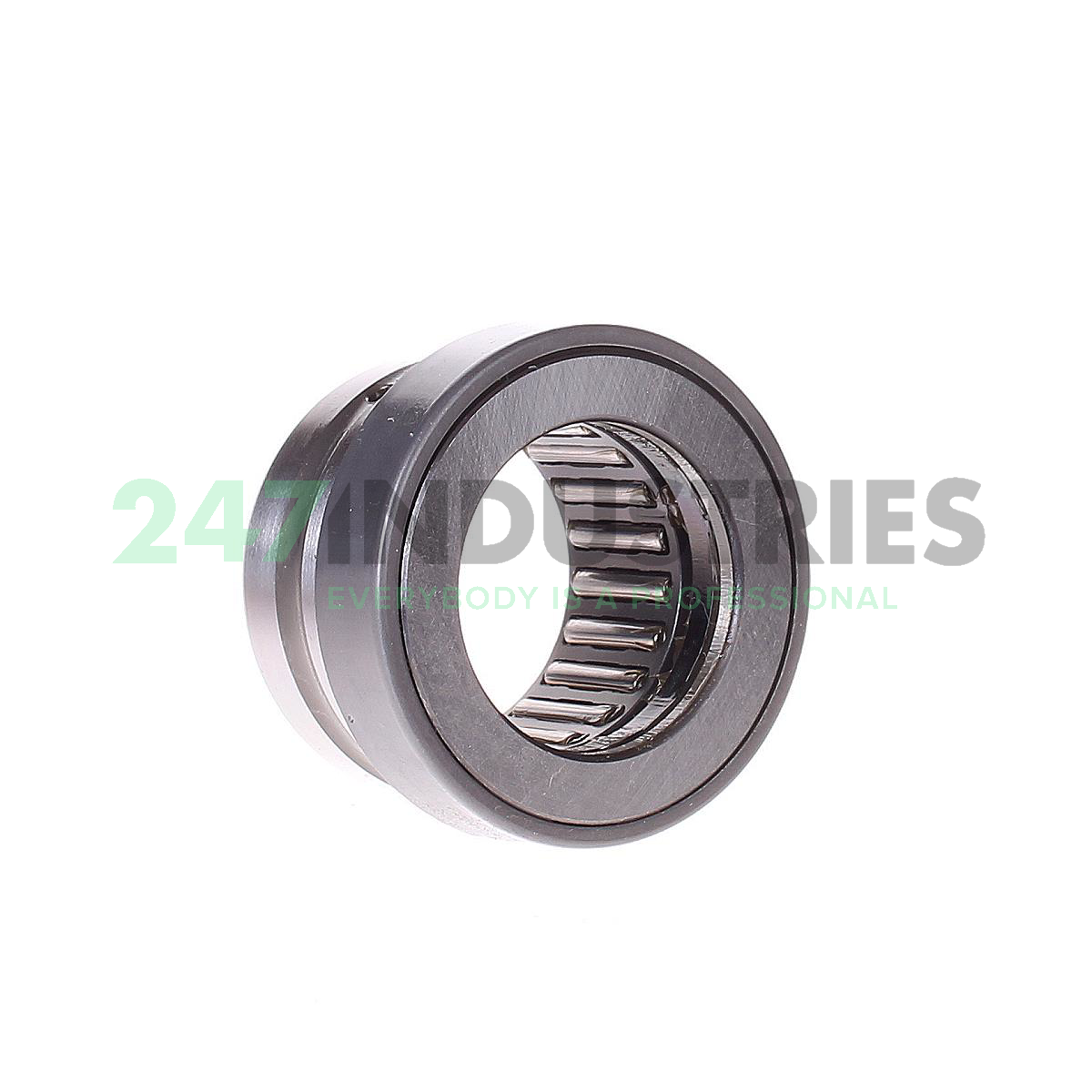

NKXR30-Z-XL INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 42
3. Width (B) MM 30
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.6535
6. Width (B) Inch 1.1811
7. Height (C) mm 30

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. XL X-Life

Technical details

1. Availability 61 pcs
2. Brand INA
3. Item number NKXR30-Z-XL INA
4. Also known as 0507918000000
   NKXR30-Z

5. EAN 4012802844849
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.1434

Product Properties

1. Seal Z - Steel Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 36000
2. Radial Dynamic Load Rating Cr (N) 25500
3. Axial Static Load Rating C0a (N) 86000
4. Axial Dynamic Load Rating Ca (N) 35500
5. Limiting speed (n G) 7500
6. Reference speed (n ϑr) 2900
7. ECLASS number 23-05-12-03
8. ECLASS2 number 23-05-12-03
9. Medias description Needle roller/axial cylindrical roller bearings NKXR..-Z, axial component, single direction, to DIN 5429, with end cap, for grease lubrication
