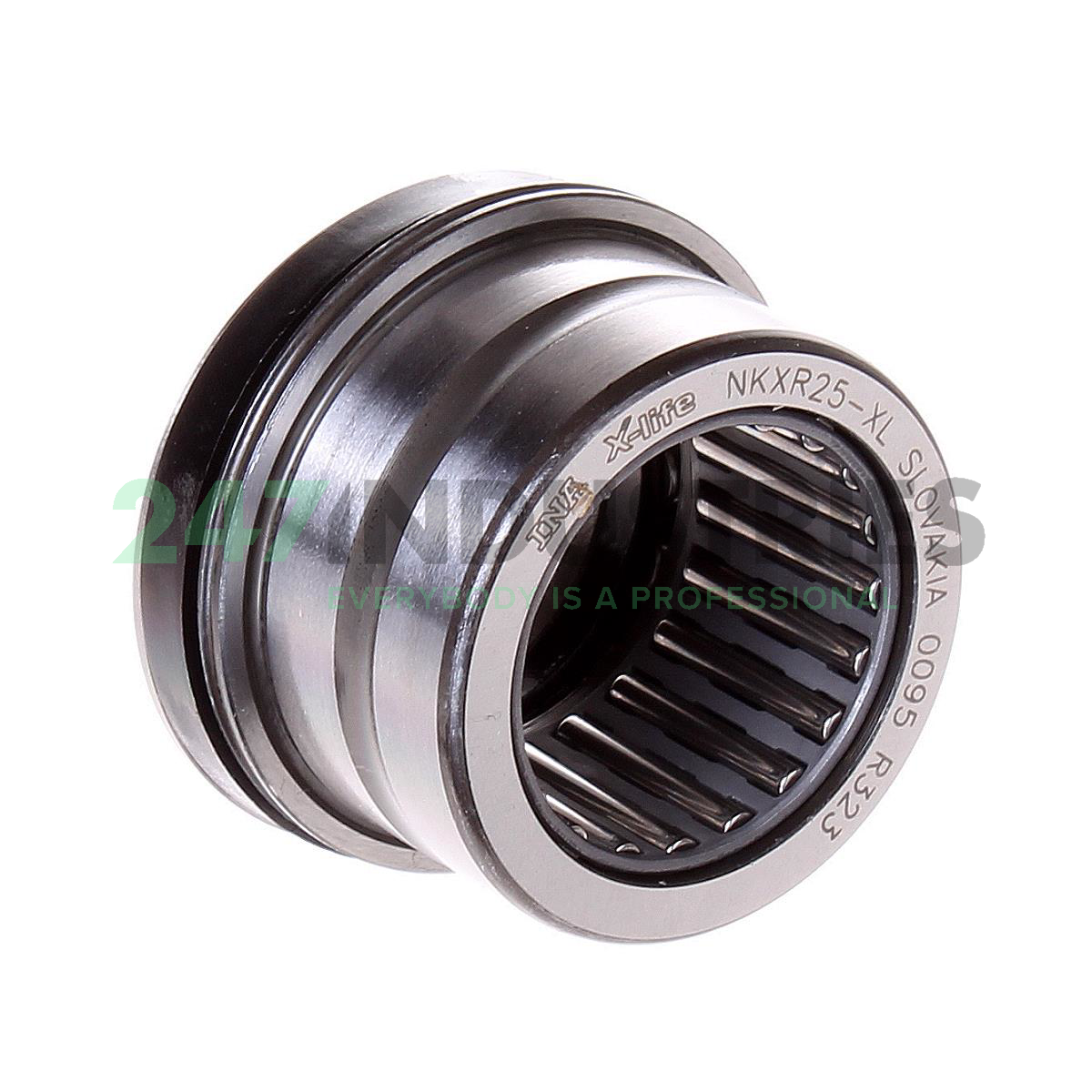

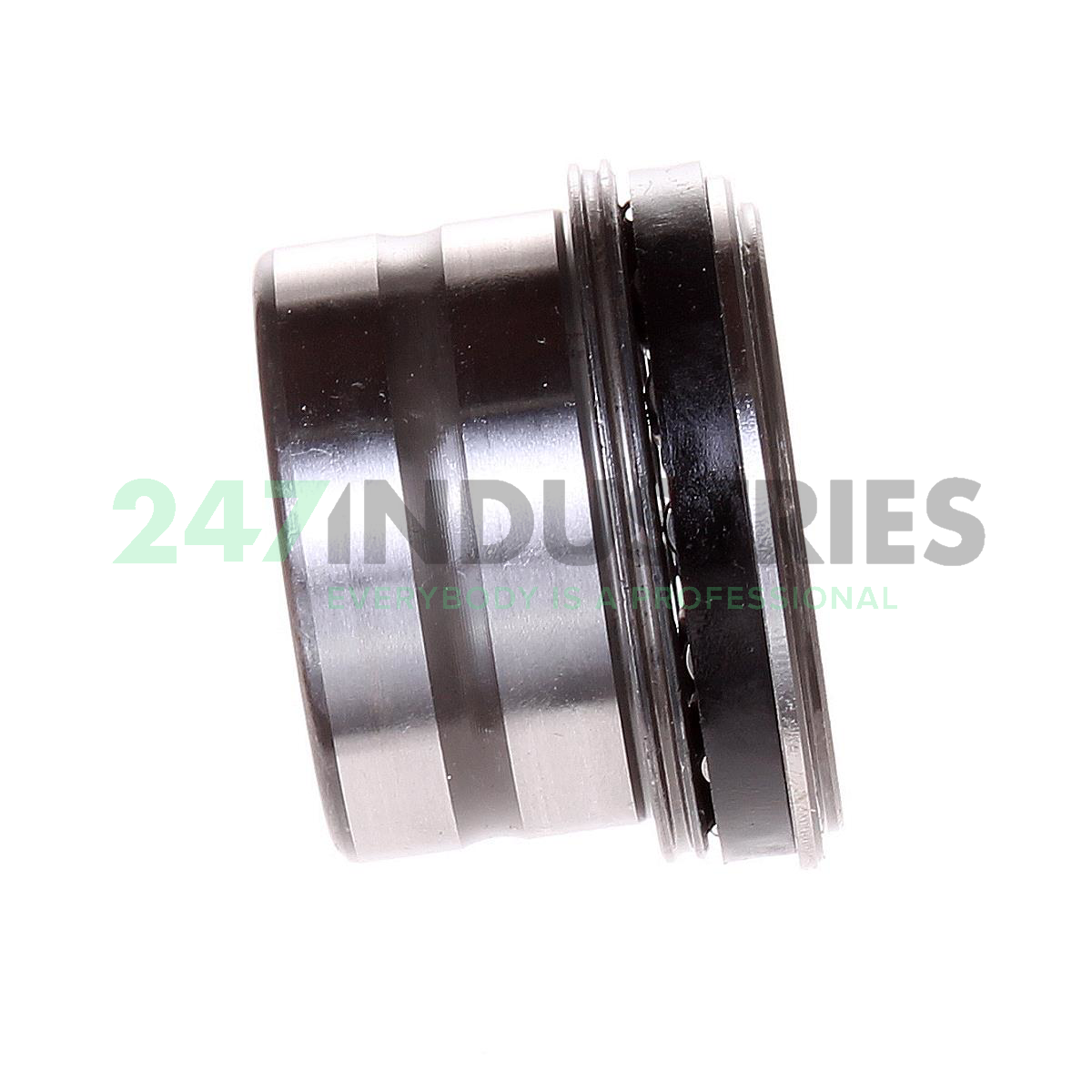

NKXR25-XL INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 37
3. Width (B) MM 30
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.4567
6. Width (B) Inch 1.1811
7. Height (C) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 16 pcs
2. Brand INA
3. Item number NKXR25-XL INA
4. Also known as 0507806970000
   NKXR25

5. EAN 4012802736014
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.146

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 30500
2. Radial Dynamic Load Rating Cr (N) 21300
3. Axial Static Load Rating C0a (N) 76000
4. Axial Dynamic Load Rating Ca (N) 33500
5. Limiting speed (n G) 8500
6. Reference speed (n ϑr) 3400
7. ECLASS number 23-05-12-03
8. ECLASS2 number 23-05-12-03

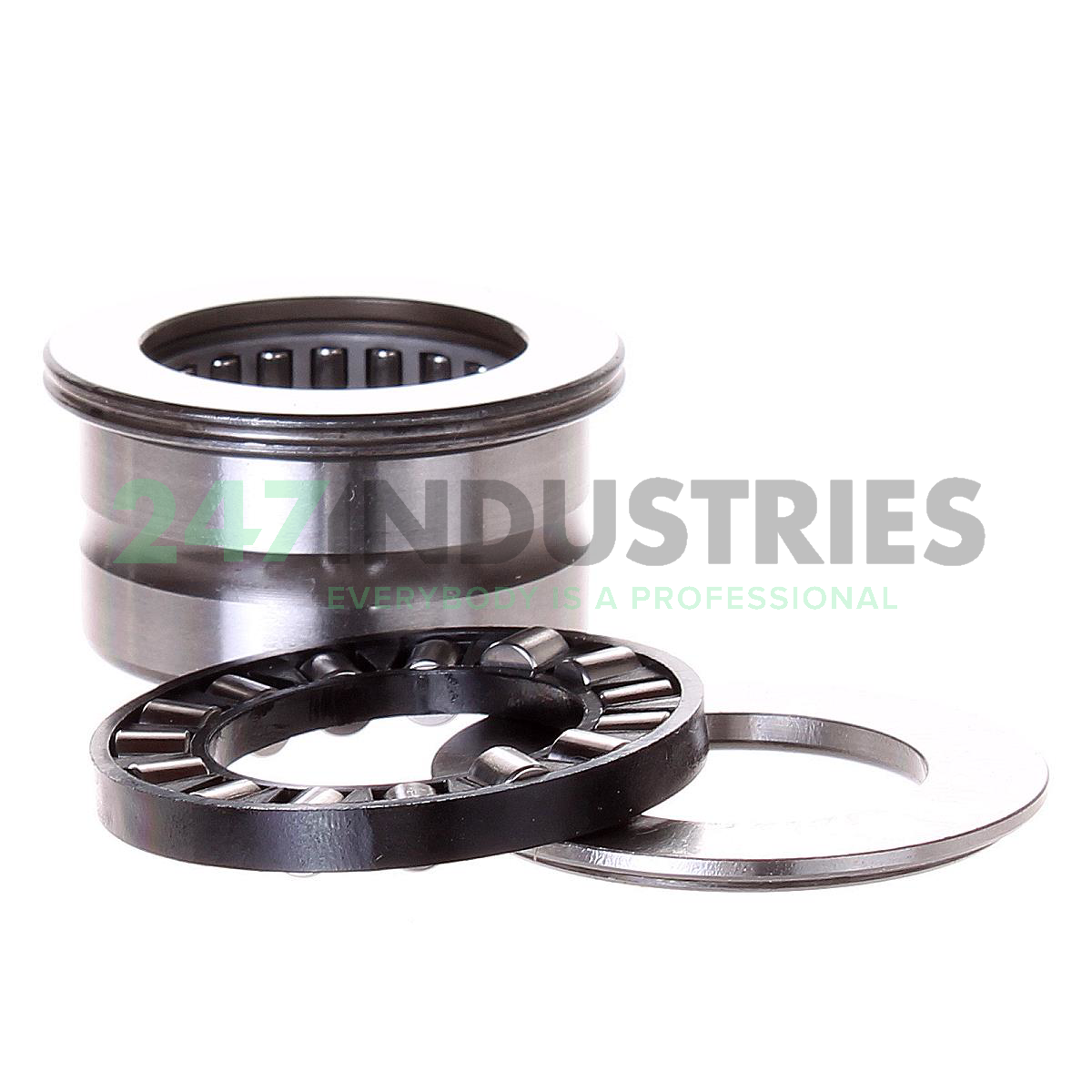

9. Medias description Needle roller/axial cylindrical roller bearings NKXR, axial component, single direction, to DIN 5429, without end cap, for oil lubrication
