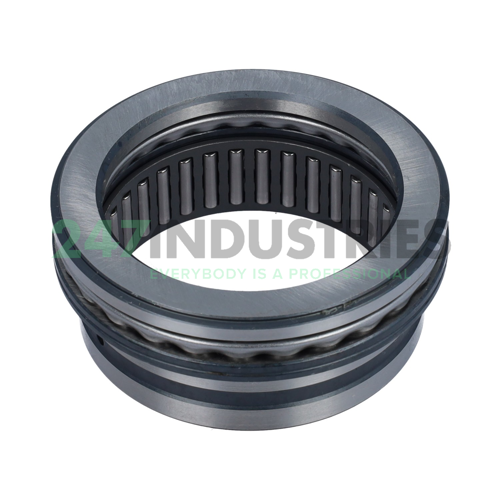

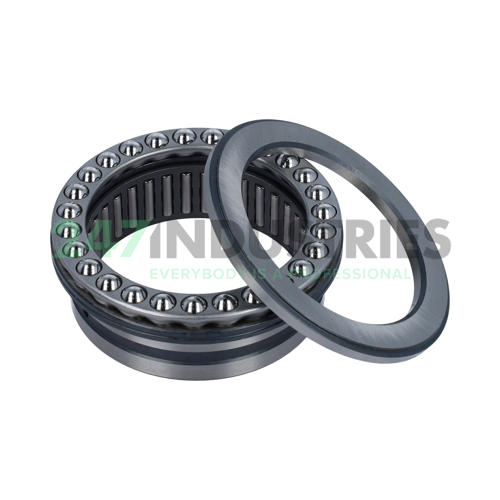

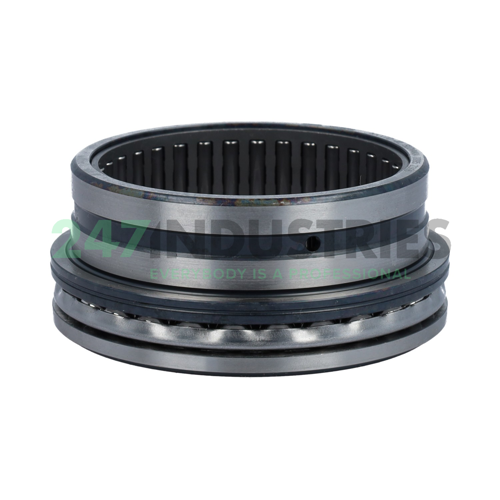

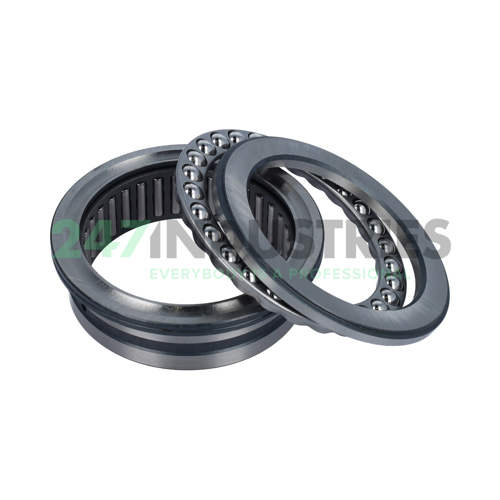

NKX70-XL INA

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 85,00
3. Width (B) MM 40,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.3465
6. Width (B) Inch 1.5748

Suffix description

1. XL X-Life

Technical details

1. Availability 75 pcs
2. Brand INA
3. Item number NKX70-XL INA
4. Also known as 0506053050000
   NKX70

5. EAN 4012802732221
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.555

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "43000.0000"
2. Radial Static Load Rating C0r (N) 92000
3. Radial Dynamic Load Rating Cr (N) 50000
4. Axial Static Load Rating C0a (N) 127000
5. Basic static load rating, axial (C 0a) "127000.0000"
6. Basic static load rating, radial (C 0r) "92000.0000"
7. Axial Dynamic Load Rating Ca (N) 43000
8. Limiting speed (n G) "2400.0000"
9. ECLASS number 23-05-12-02
10. ECLASS2 number 23-05-12-02
11. Medias description Needle roller/axial ball bearings NKX, axial component, single direction, to DIN 5429, without end cap, for oil lubrication
