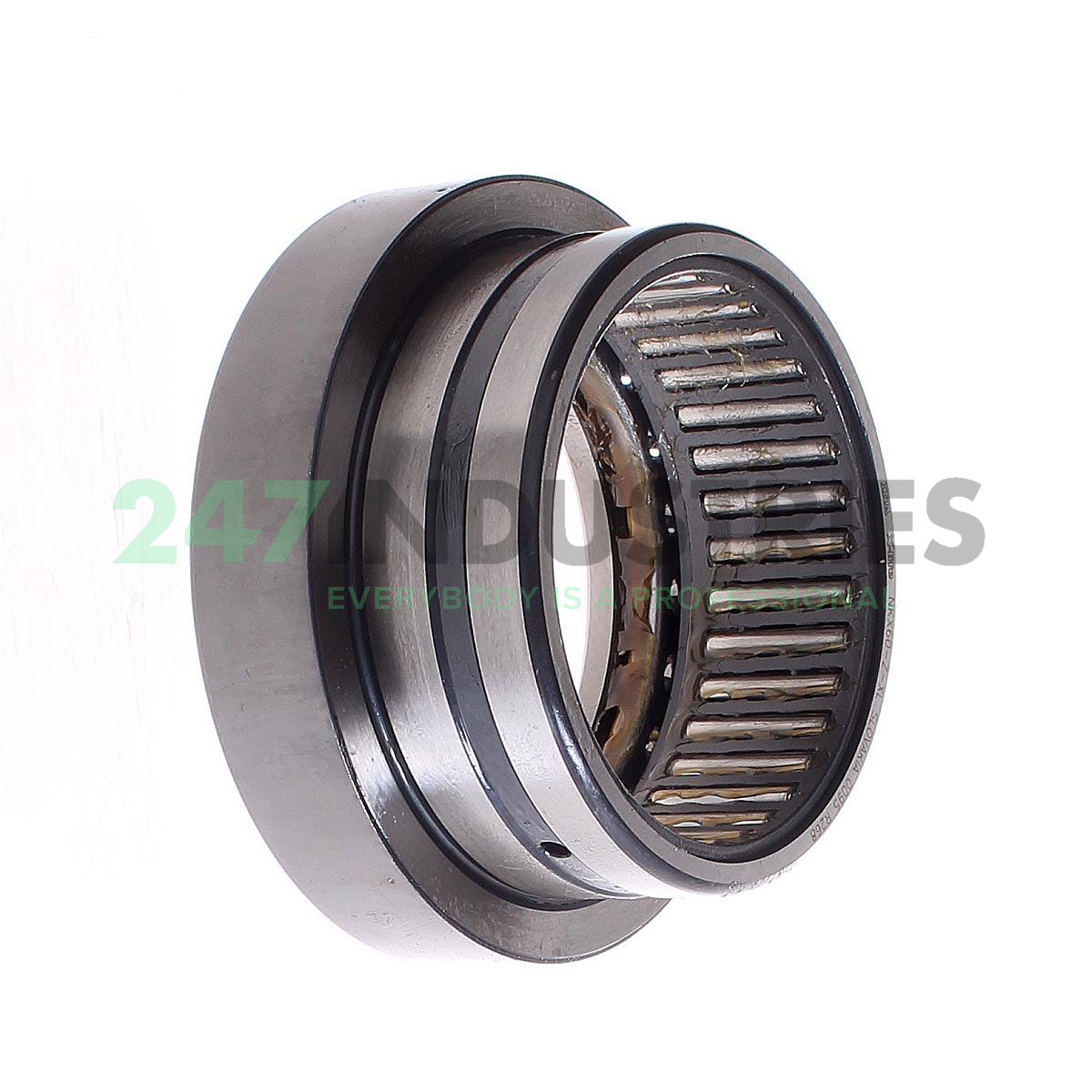

NKX60-Z-XL INA

All dimensions

1. Inner (d) MM 60,00
2. Outer (D) MM 72,00
3. Width (B) MM 40,00
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.5748
7. Height (C) mm 40,00

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. XL X-Life

Technical details

1. Availability 46 pcs
2. Brand INA
3. Item number NKX60-Z-XL INA
4. Also known as 0507476490000
   NKX60-Z

5. EAN 4012802701005
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.47

Product Properties

1. Seal Z - Steel Seal on One Side

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "41500.0000"
2. Radial Static Load Rating C0r (N) 90000
3. Radial Dynamic Load Rating Cr (N) 47500
4. Axial Static Load Rating C0a (N) 113000
5. Basic static load rating, axial (C 0a) "113000.0000"
6. Basic static load rating, radial (C 0r) "90000.0000"
7. Axial Dynamic Load Rating Ca (N) 41500
8. Limiting speed (n G) "2800.0000"
9. ECLASS number 23-05-12-02
10. ECLASS2 number 23-05-12-02
11. Medias description Needle roller/axial ball bearings NKX..-Z, axial component, single direction, to DIN 5429, with end cap, for grease lubrication
