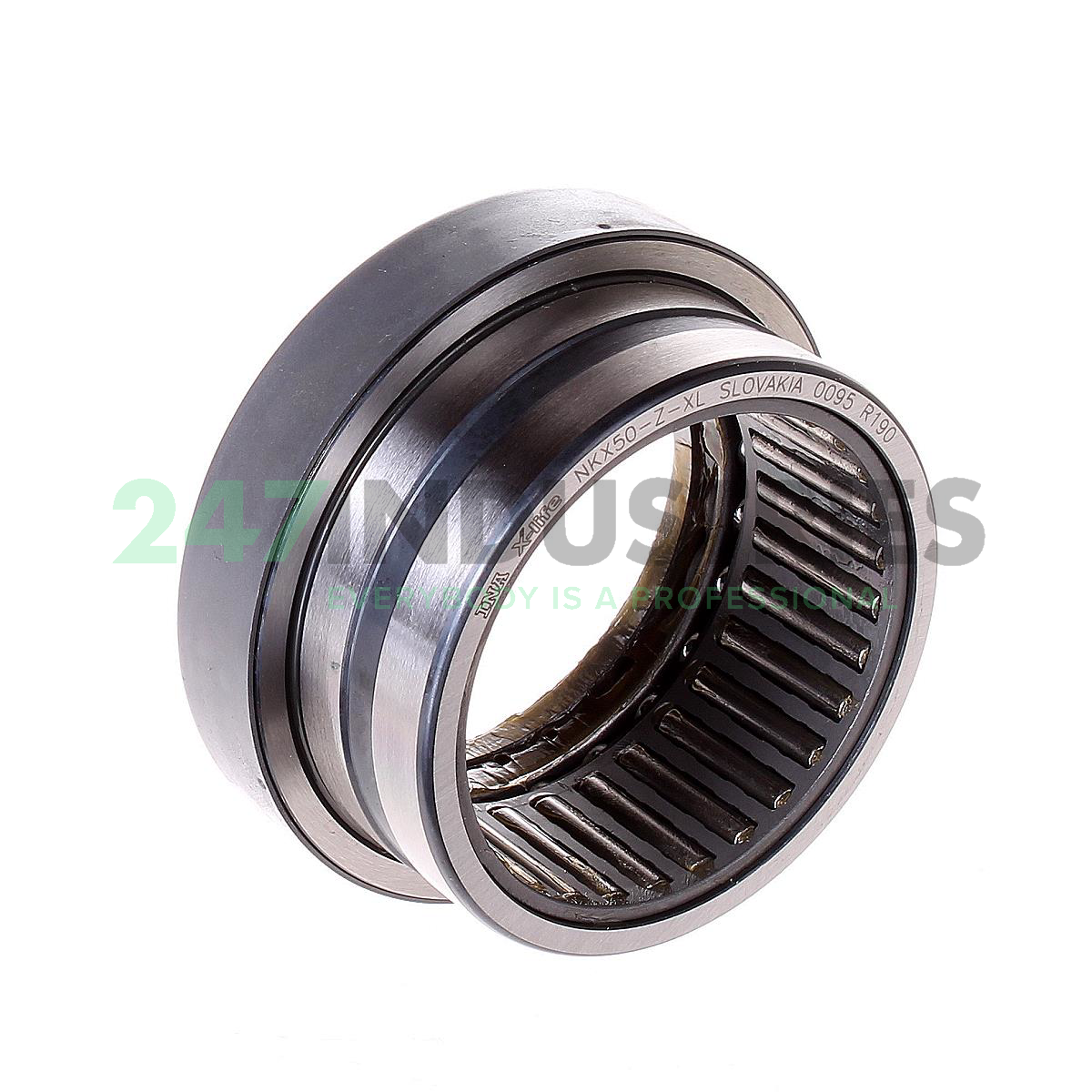

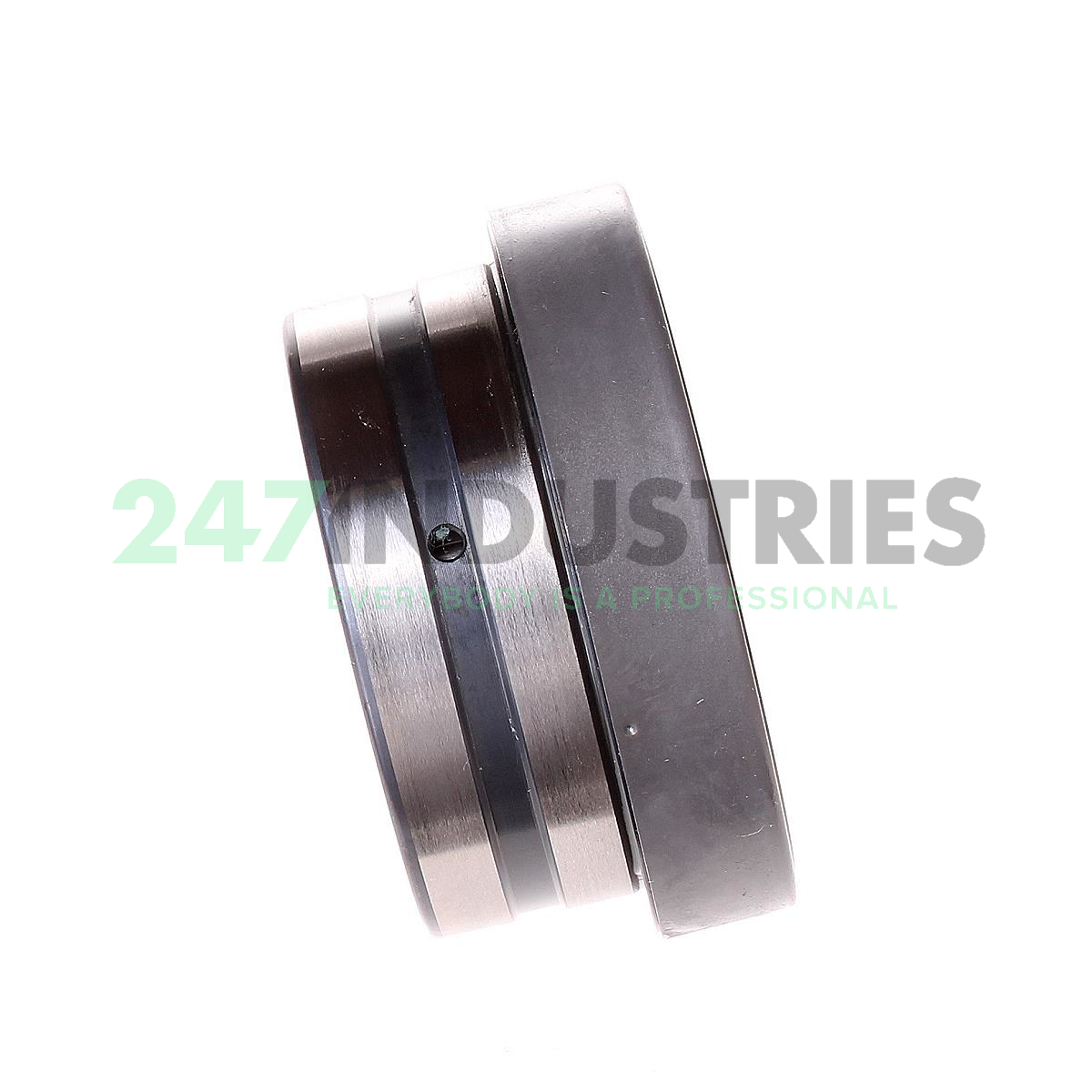

NKX50-Z-XL INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 62
3. Width (B) MM 35
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.378
7. Height (C) mm 35

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. XL X-Life

Technical details

1. Availability 126 pcs
2. Brand INA
3. Item number NKX50-Z-XL INA
4. Also known as 0507476300000
   NAXK50Z
   NKX50-Z

5. EAN 4012802701845
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.3

Product Properties

1. Seal Z - Steel Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 74000
2. Radial Dynamic Load Rating Cr (N) 43000
3. Axial Static Load Rating C0a (N) 75000
4. Axial Dynamic Load Rating Ca (N) 29000
5. Limiting speed (n G) 3300
6. ECLASS number 23-05-12-02
7. ECLASS2 number 23-05-12-02
8. Medias description Needle roller/axial ball bearings NKX..-Z, axial component, single direction, to DIN 5429, with end cap, for grease lubrication
