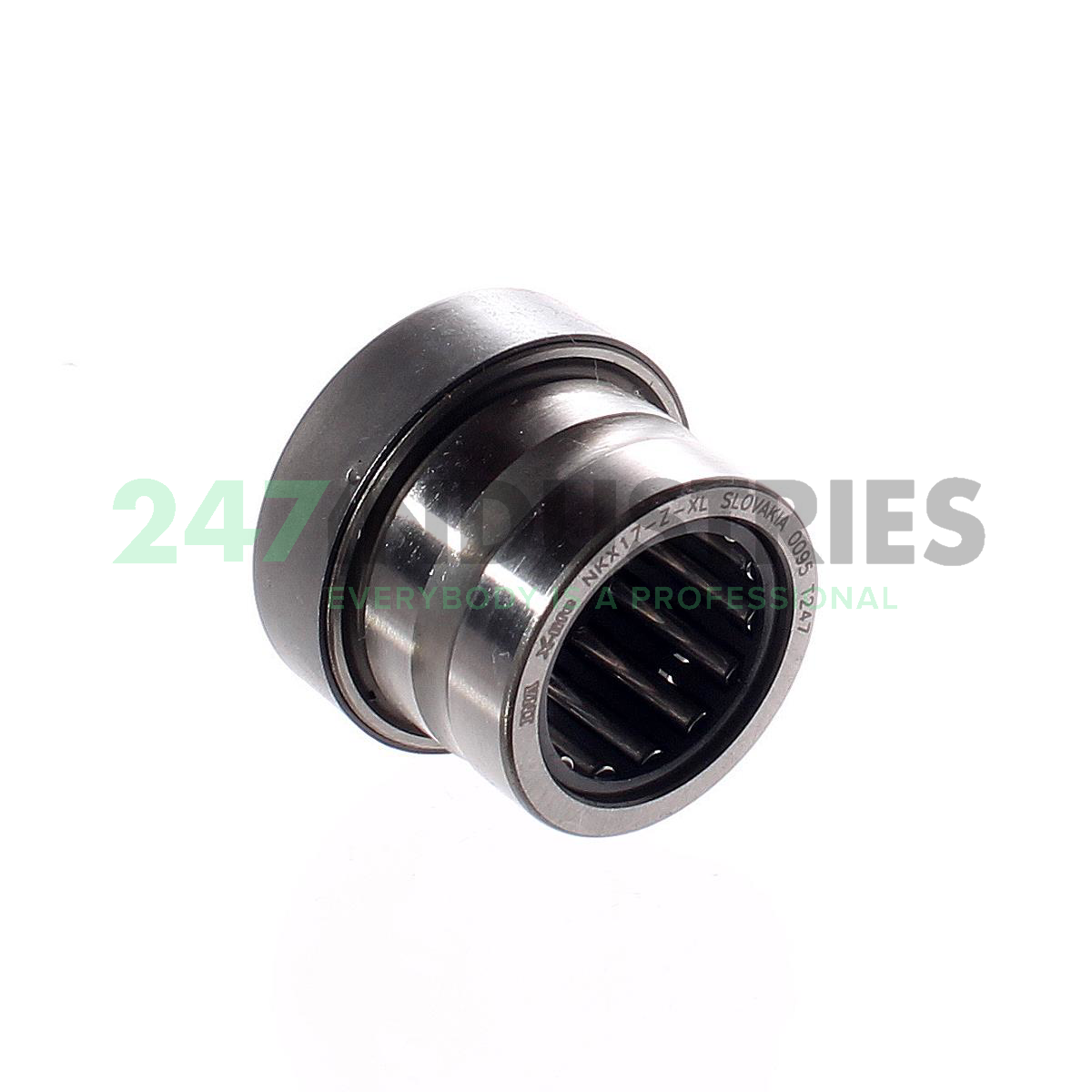

NKX17-Z-XL INA

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 26
3. Width (B) MM 25
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.9843
7. Height (C) mm 25

Suffix description

1. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing
2. XL X-Life

Technical details

1. Availability 57 pcs
2. Brand INA
3. Item number NKX17-Z-XL INA
4. Also known as 0507131670000
   NKX17-Z

5. EAN 4012802732887
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.055

Product Properties

1. Seal Z - Steel Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15000
2. Radial Dynamic Load Rating Cr (N) 13500
3. Axial Static Load Rating C0a (N) 18200
4. Axial Dynamic Load Rating Ca (N) 10800
5. Limiting speed (n G) 8500
6. ECLASS number 23-05-12-02
7. ECLASS2 number 23-05-12-02
8. Medias description Needle roller/axial ball bearings NKX..-Z, axial component, single direction, to DIN 5429, with end cap, for grease lubrication
