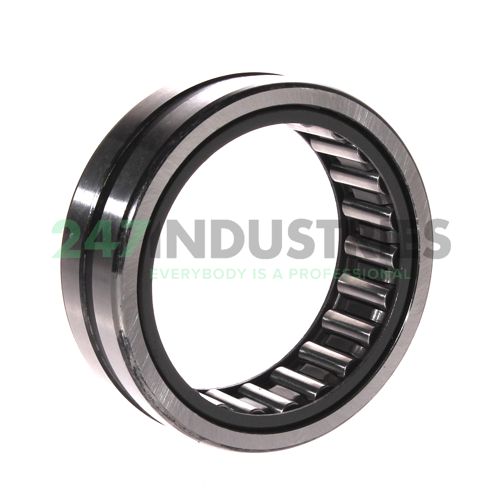

NKS65-XL INA

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 85
3. Width (B) MM 28
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.3465
6. Width (B) Inch 1.1024
7. Under roller diameter (F w) mm 65

Suffix description

1. XL X-Life

Technical details

1. Availability 76 pcs
2. Brand INA
3. Item number NKS65-XL INA
4. Also known as 0507701010000
   NKS65

5. EAN 4047643203784
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.362

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 108000
2. Radial Dynamic Load Rating Cr (N) 75000
3. Limiting speed (n G) 6900
4. Reference speed (n ϑr) 4400
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKS, heavy series
