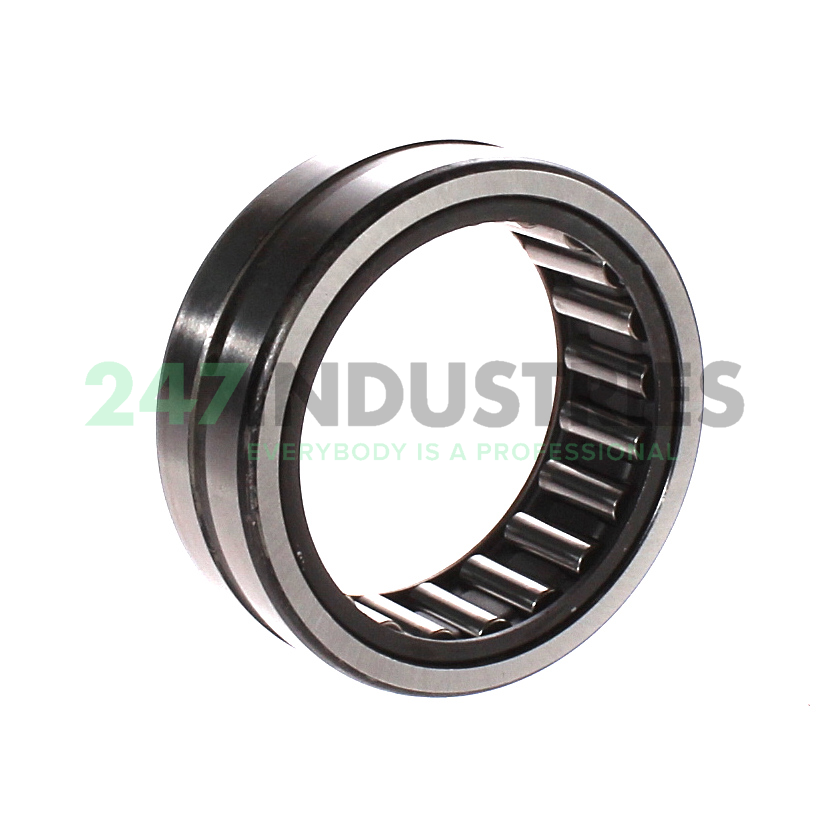

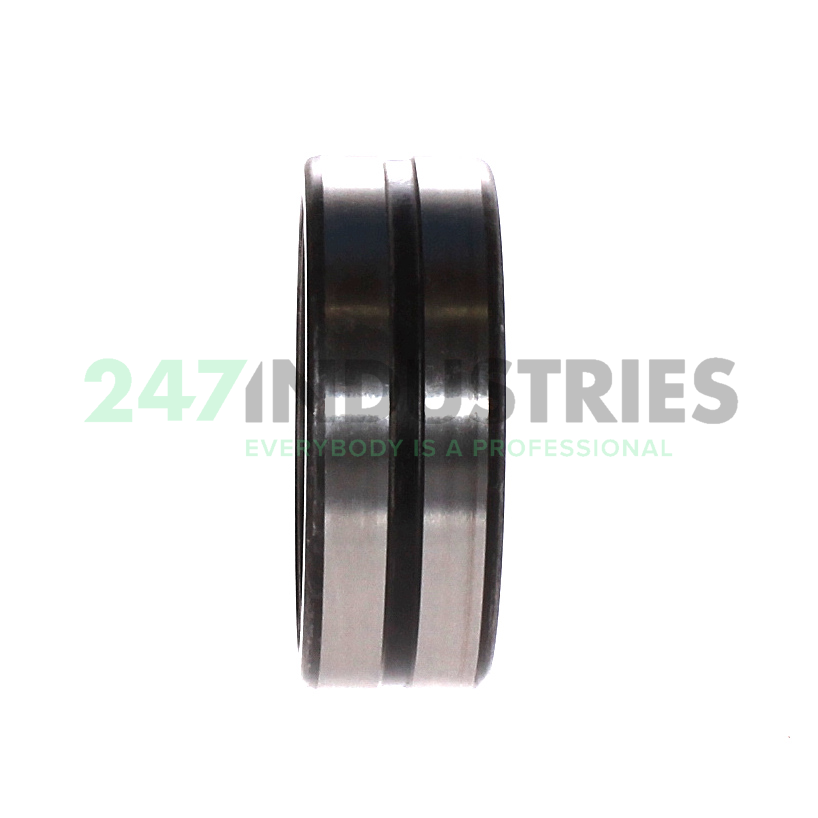

NKS60-XL INA

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 80
3. Width (B) MM 28
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.1024
7. Under roller diameter (F w) mm 60

Suffix description

1. XL X-Life

Technical details

1. Availability 115 pcs
2. Brand INA
3. Item number NKS60-XL INA
4. Also known as 0507700980000
   NKS60

5. EAN 4012802734737
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.335

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 98000
2. Radial Dynamic Load Rating Cr (N) 71000
3. Limiting speed (n G) 7400
4. Reference speed (n ϑr) 4750
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKS, heavy series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
