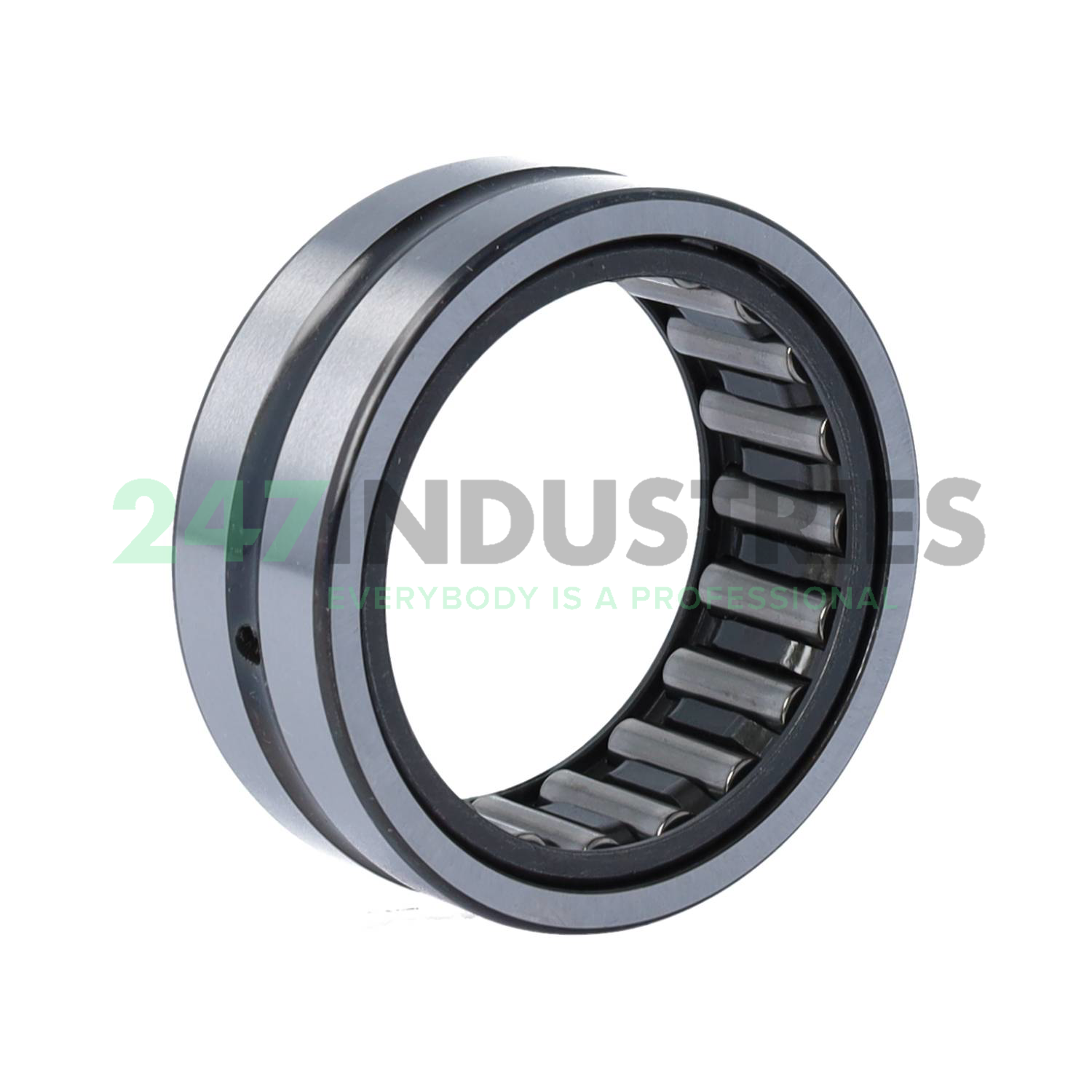

NKS45 INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 60
3. Width (B) MM 22
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.3622
6. Width (B) Inch 0.8661
7. Under roller diameter (F w) mm 45

Technical details

1. Availability 52 pcs
2. Brand INA
3. Item number NKS45 INA
4. Also known as 0000035900000

5. EAN 4012802060072
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.145

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 60000
2. Radial Dynamic Load Rating Cr (N) 40500
3. Limiting speed (n G) 9800
4. Reference speed (n ϑr) 6000
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing NKS, single row, no inner ring, outer ring with 2 bords
