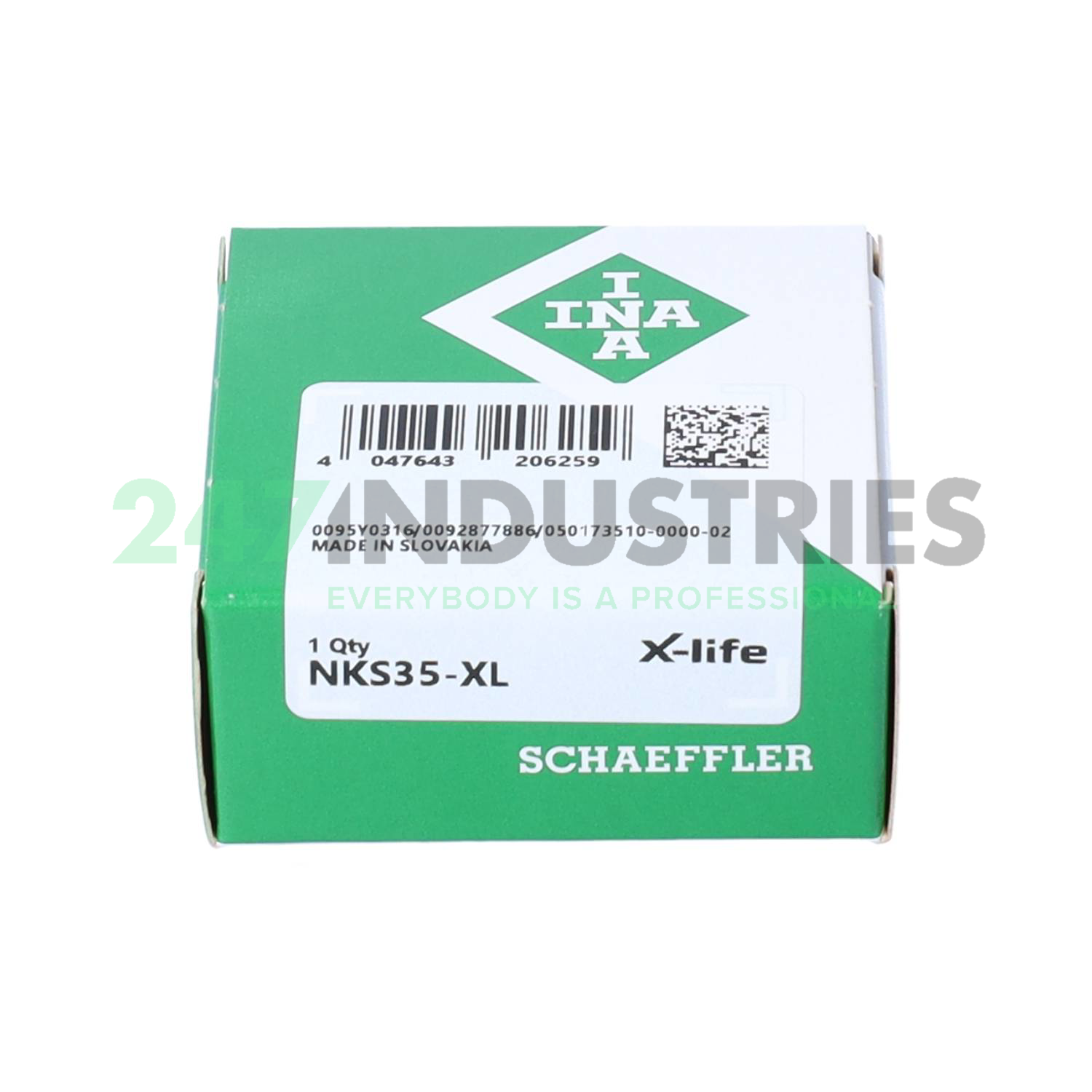

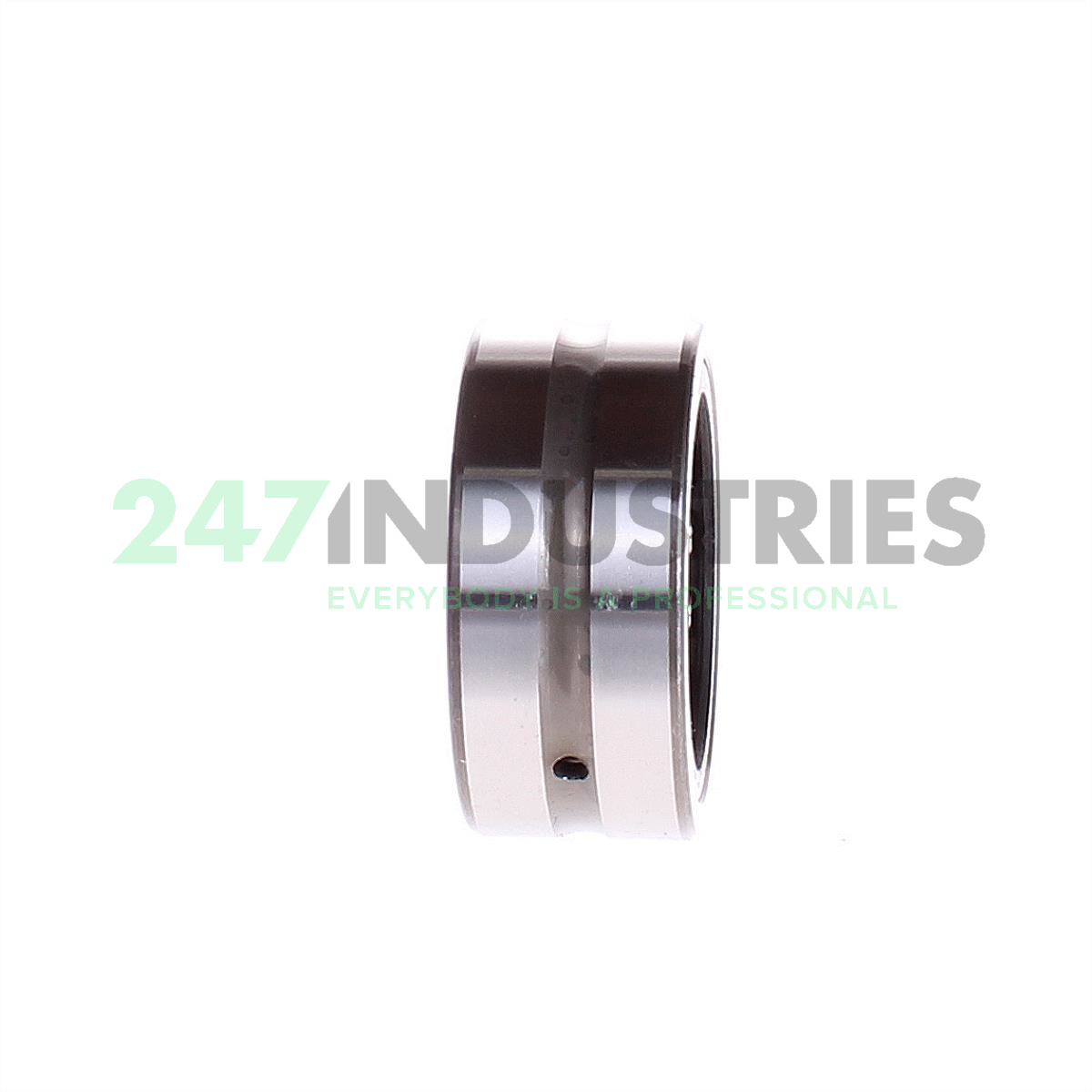

NKS35-XL INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 50
3. Width (B) MM 22
4. Inner (d) Inch 1.378
5. Outer (D) Inch 1.9685
6. Width (B) Inch 0.8661
7. Under roller diameter (F w) mm 35

Suffix description

1. XL X-Life

Technical details

1. Availability 13 pcs
2. Brand INA
3. Item number NKS35-XL INA
4. Also known as 0501735100000
   NKS35

5. EAN 4047643206259
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.118

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 47000
2. Radial Dynamic Load Rating Cr (N) 39500
3. Limiting speed (n G) 12300
4. Reference speed (n ϑr) 7400
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKS, heavy series
