NKS32-XL INA

All dimensions

1. Inner (d) MM 32
2. Outer (D) MM 47
3. Width (B) MM 22
4. Inner (d) Inch 1.2598
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.8661
7. Under roller diameter (F w) mm 32

Suffix description

1. XL X-Life

Technical details

1. Availability 141 pcs
2. Brand INA
3. Item number NKS32-XL INA
4. Also known as 0507700120000
   NKS32

5. EAN 4054363051854

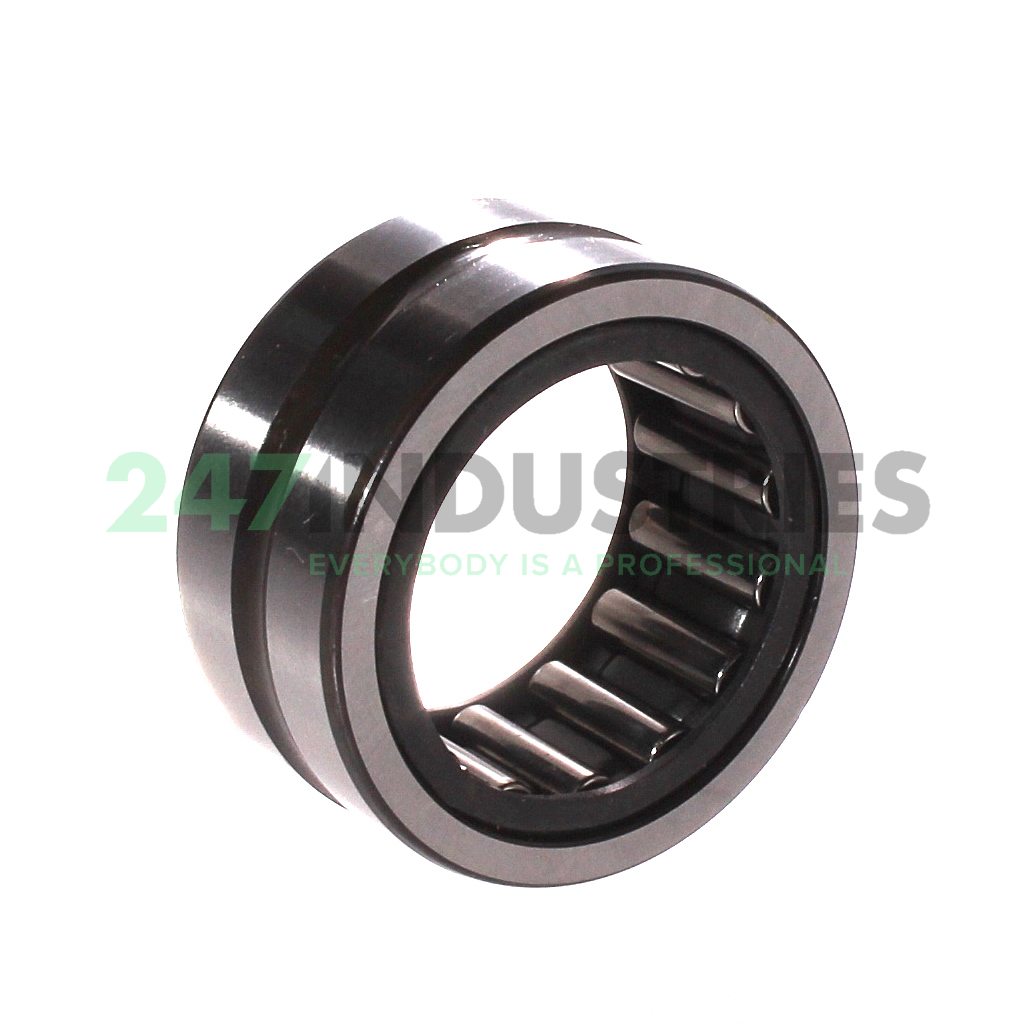

6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.11

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 43500
2. Radial Dynamic Load Rating Cr (N) 38000
3. Limiting speed (n G) 13200
4. Reference speed (n ϑr) 8000
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKS, heavy series
