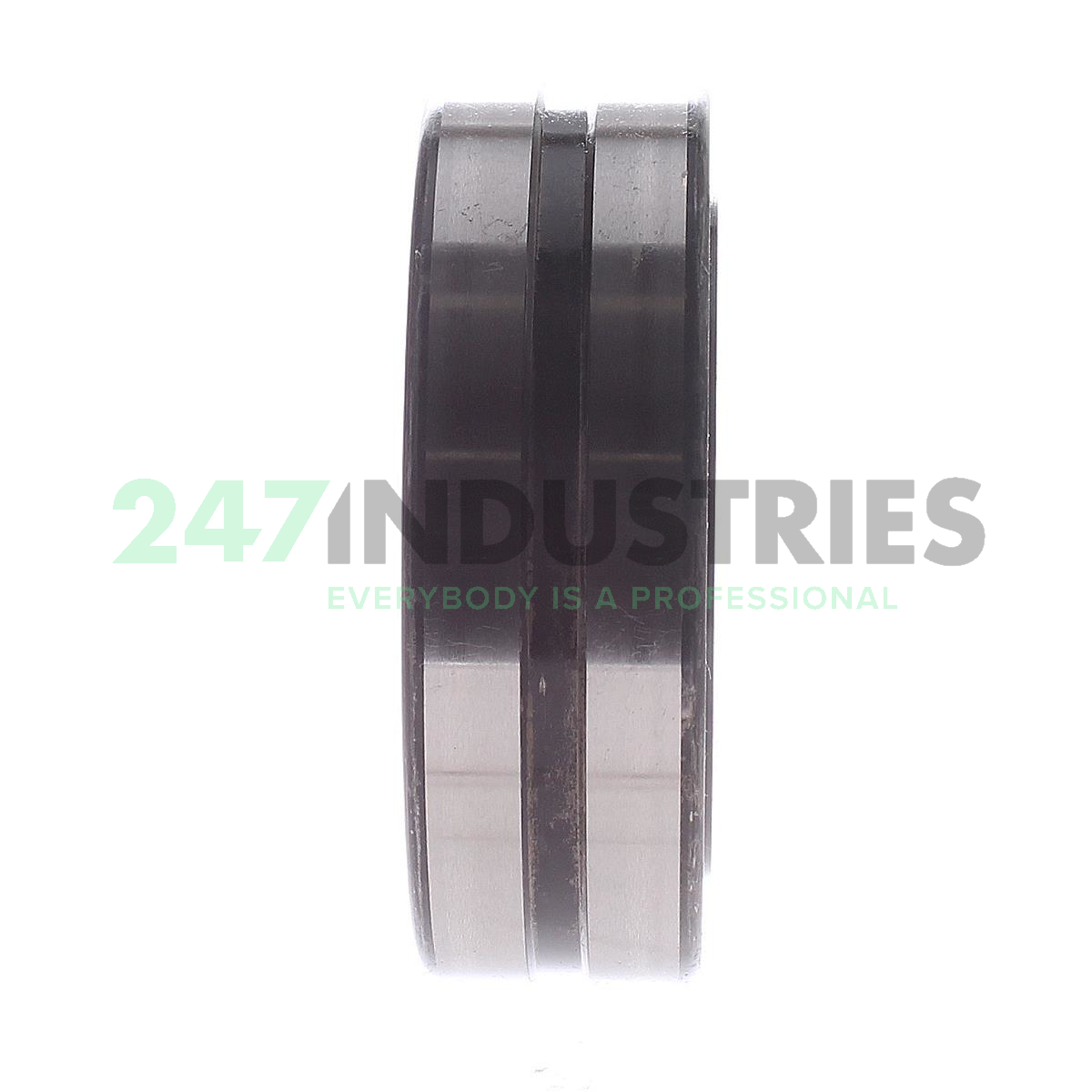

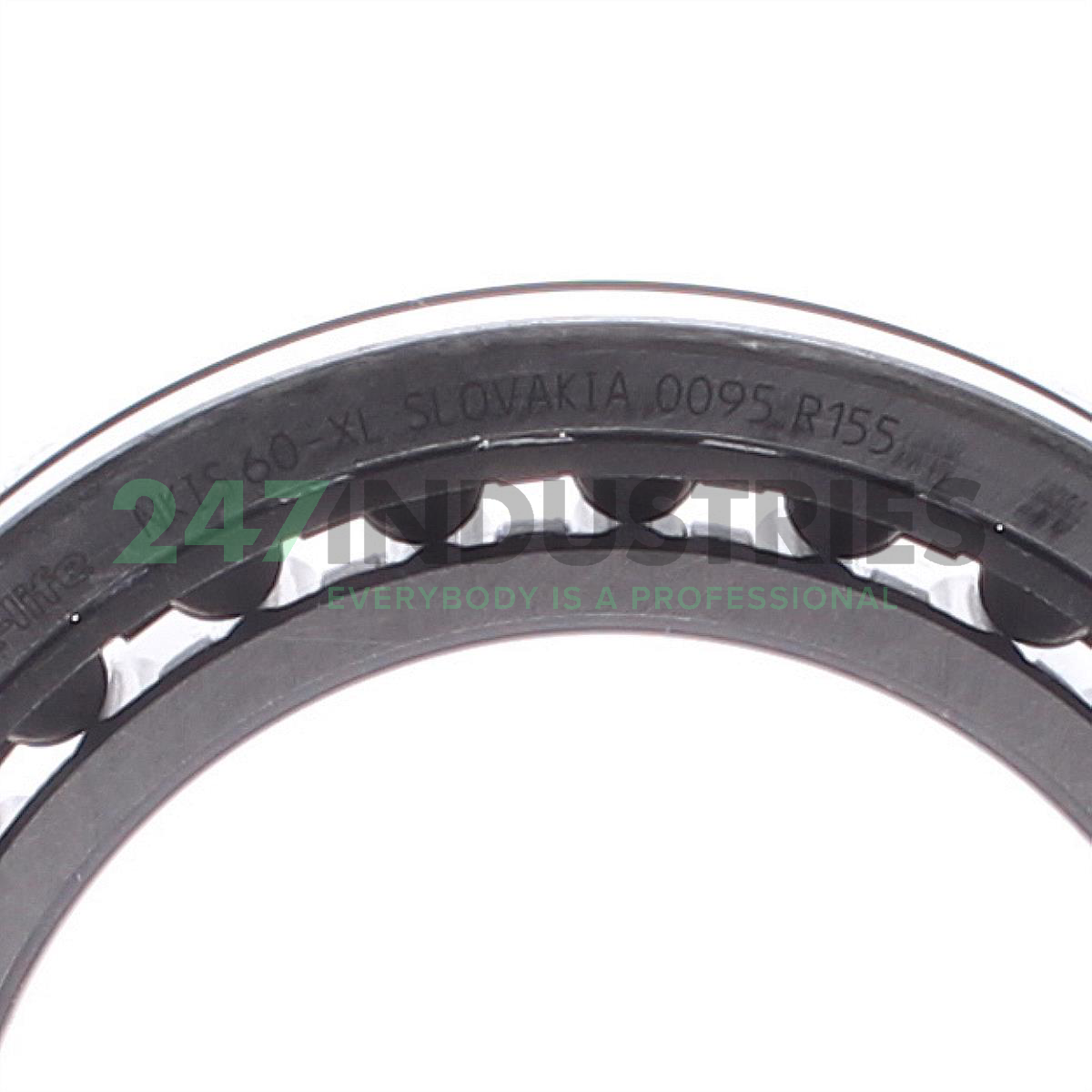

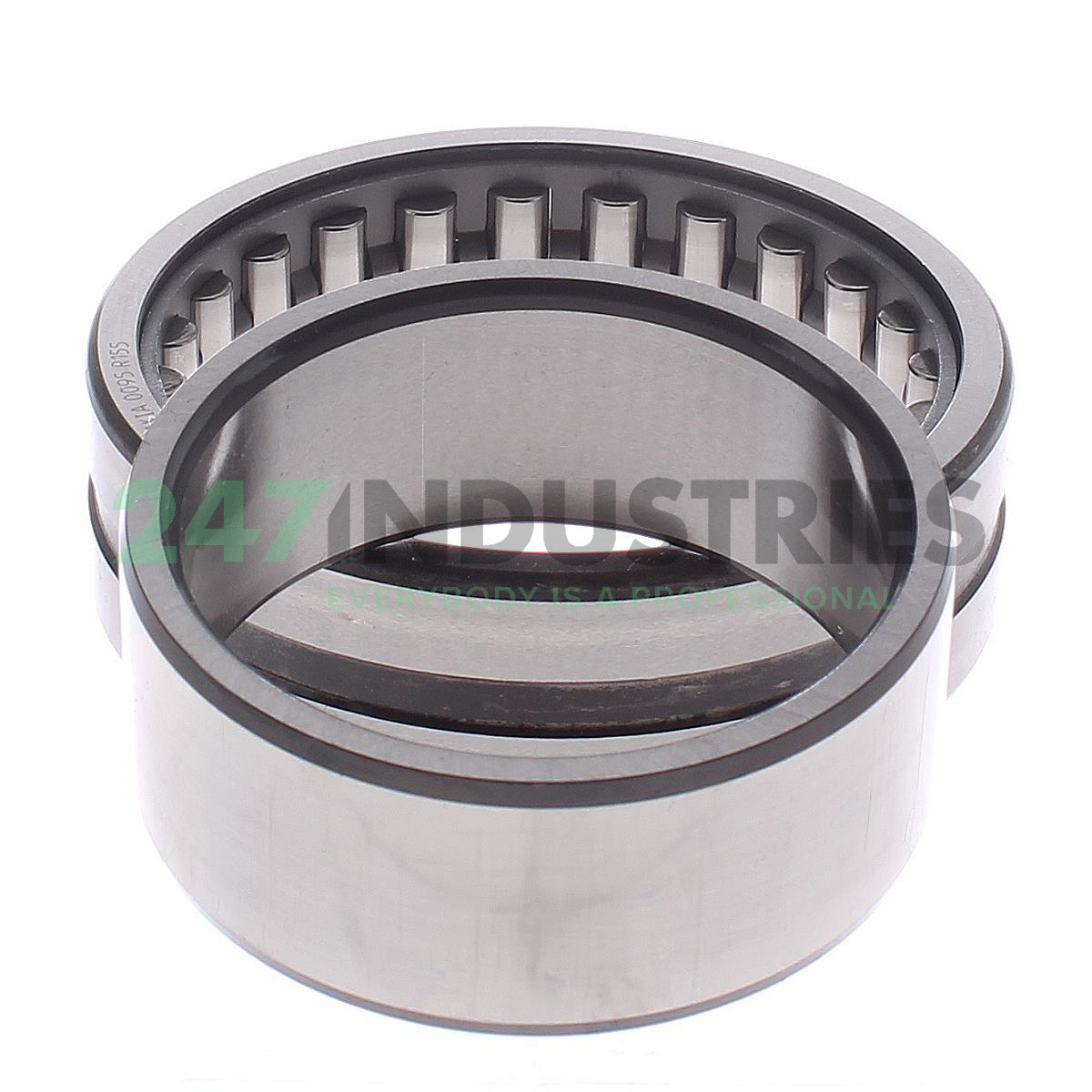

NKIS60-XL INA

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 90
3. Width (B) MM 28
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.1024
7. Width (b) mm 28

Suffix description

1. XL X-Life

Technical details

1. Availability 11 pcs
2. Brand INA
3. Item number NKIS60-XL INA
4. Also known as 0507712720000
   NKIS60

5. EAN 4047643203722
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.56

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 113000
2. Radial Dynamic Load Rating Cr (N) 77000
3. Limiting speed (n G) 6400
4. Limiting speed for grease lubrication (n G Grease) 3850
5. Reference speed (n ϑr) 3800
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NKIS, heavy series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
