NKIS30 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 52
3. Width (B) MM 22
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.8661
7. Width (b) mm 22

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number NKIS30 INA
4. Also known as 0007011810000

5. EAN 4012802722727
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.184

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 50000
2. Radial Dynamic Load Rating Cr (N) 36500
3. Limiting speed (n G) 11700
4. Reference speed (n ϑr) 6400
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07

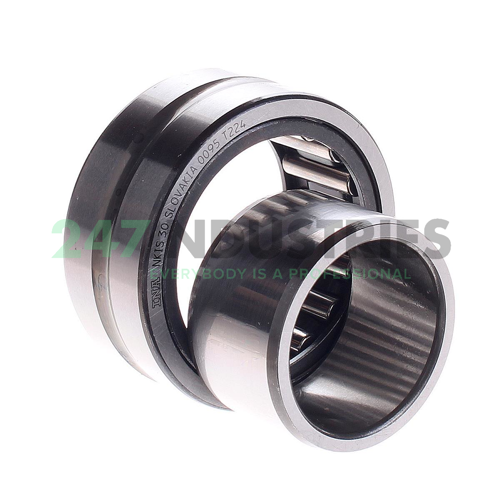

7. Medias description Needle roller bearing NKIS, single row, with inner ring, outer ring with 2 bords
