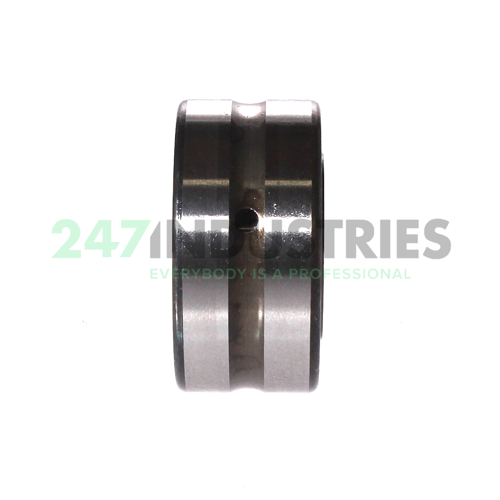

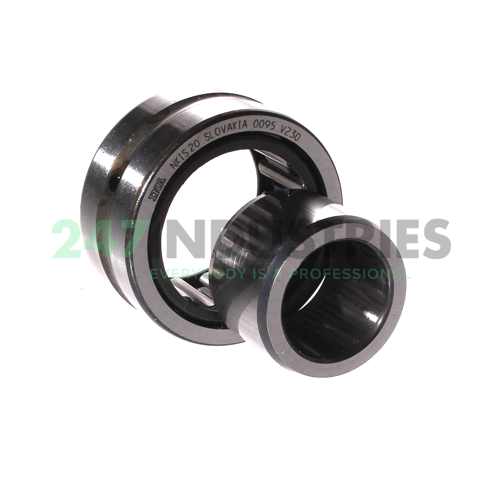

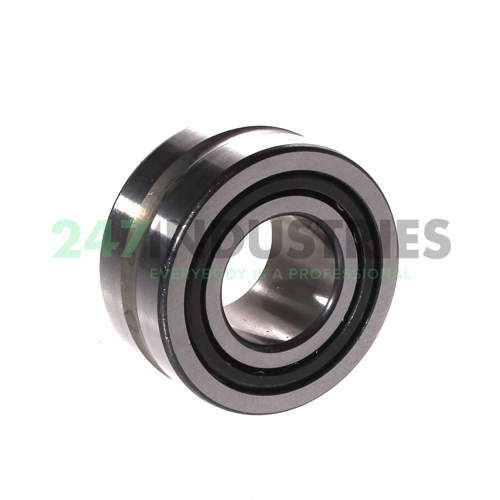

NKIS20 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 42
3. Width (B) MM 20
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Technical details

1. Availability 20 pcs
2. Brand INA
3. Item number NKIS20 INA
4. Also known as 0000078700000

5. EAN 4012802059854
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 36500
2. Radial Dynamic Load Rating Cr (N) 28500
3. Limiting speed (n G) 15100
4. Reference speed (n ϑr) 7700
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing NKIS, single row, with inner ring, outer ring with 2 bords
