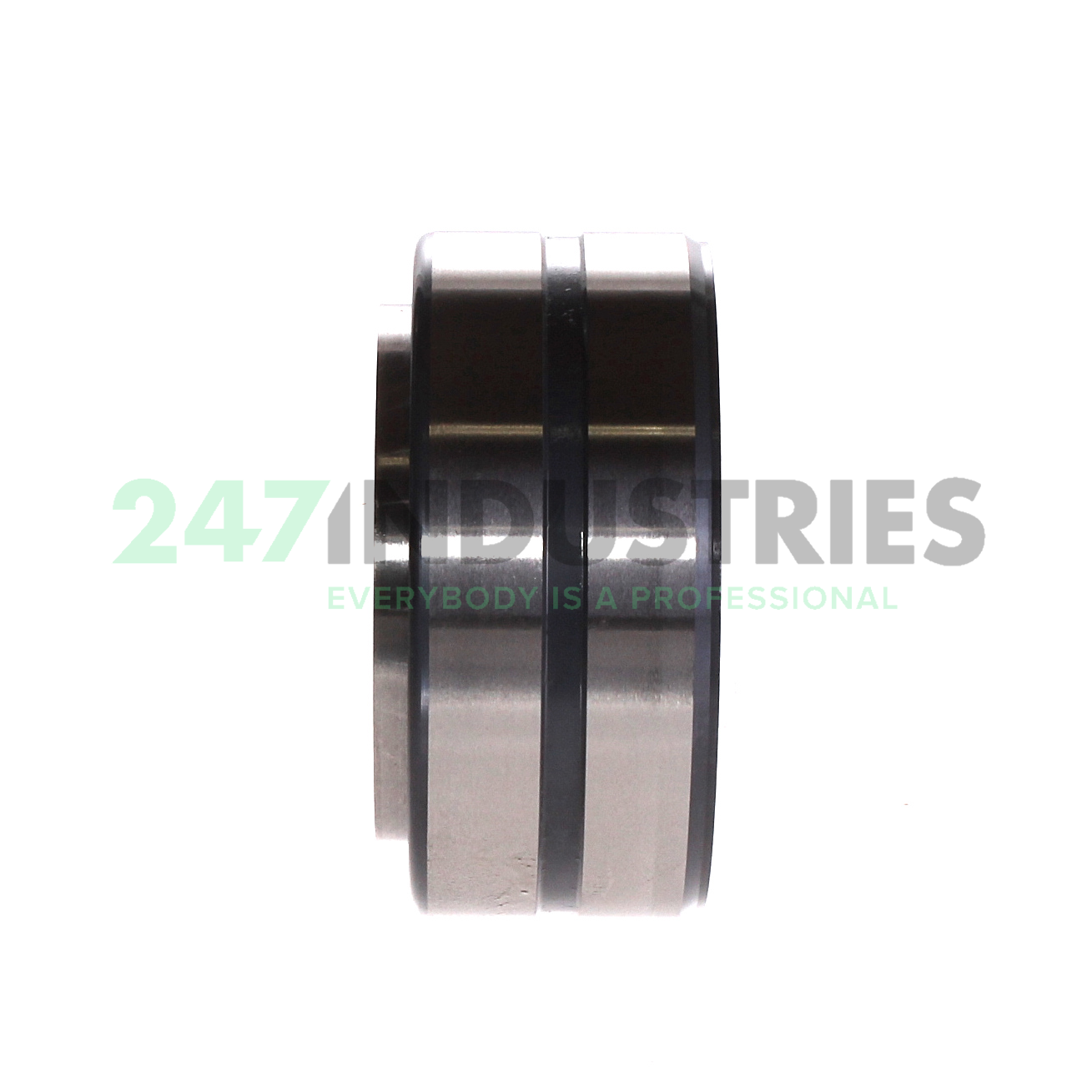

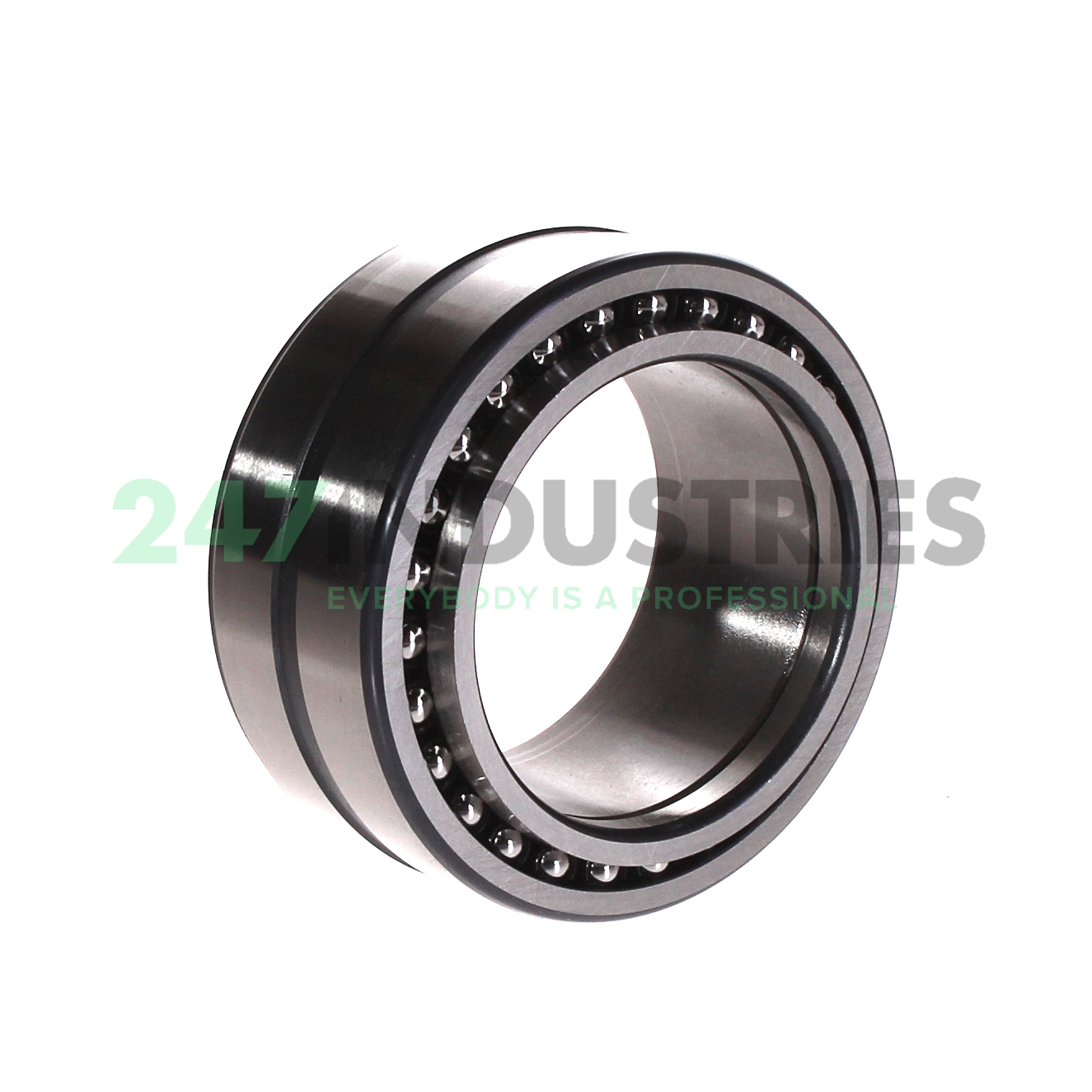

NKIB5911-XL INA

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 80
3. Width (B) MM 38
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.4961
7. Width (b) mm 38

Suffix description

1. XL X-Life

Technical details

1. Availability 15 pcs on Tue 10 Feb
2. Brand INA
3. Item number NKIB5911-XL INA
4. Also known as 0507829240000
   NKIB5911

5. EAN 4012802736205
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.555

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 100000
2. Radial Dynamic Load Rating Cr (N) 65000
3. Axial Static Load Rating C0a (N) 29500
4. Axial Dynamic Load Rating Ca (N) 12100
5. Limiting speed (n G) 7300
6. Reference speed (n ϑr) 6000
7. ECLASS number 23-05-12-01
8. ECLASS2 number 23-05-12-01
9. Medias description Needle roller/angular contact ball bearings NKIB, double direction axial component
