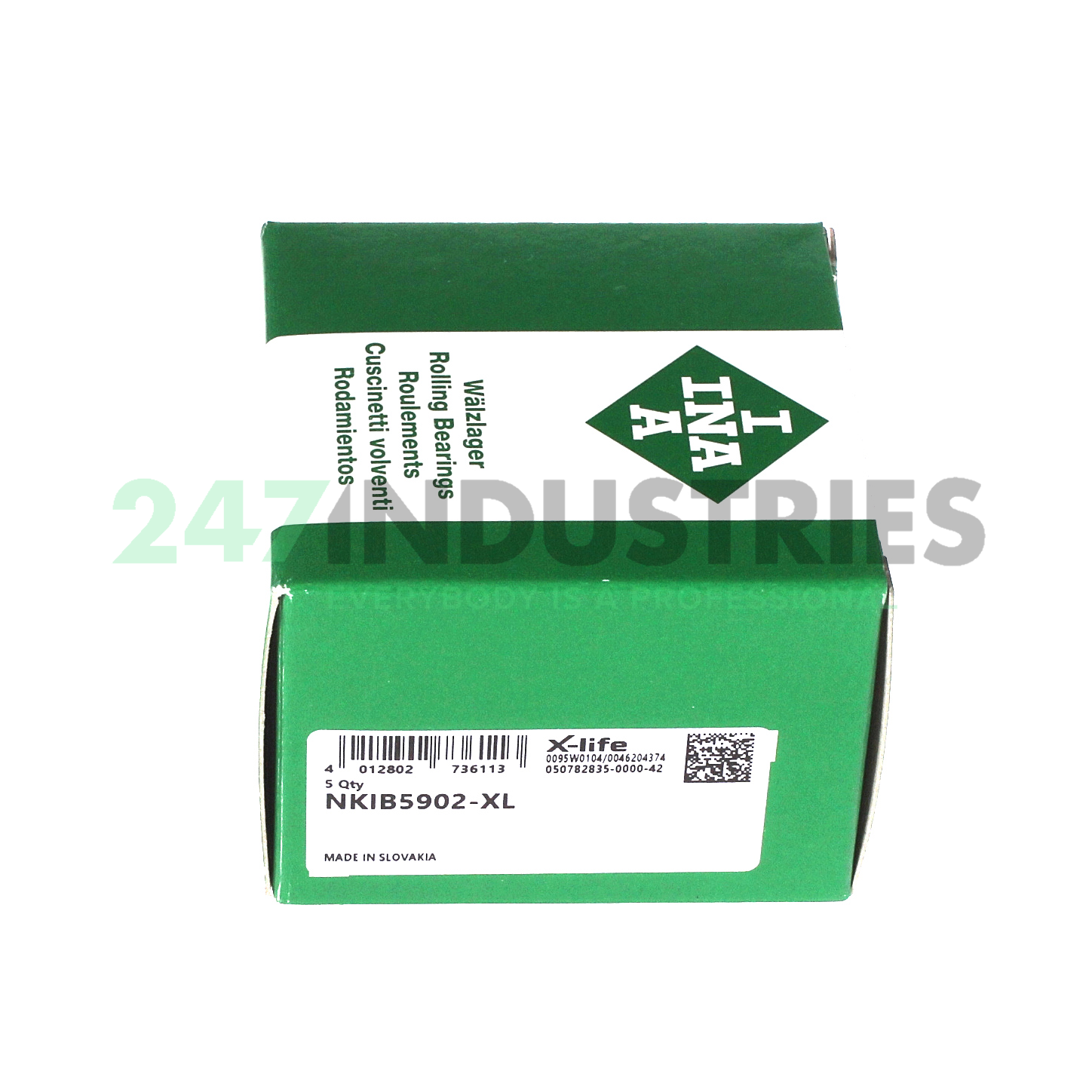

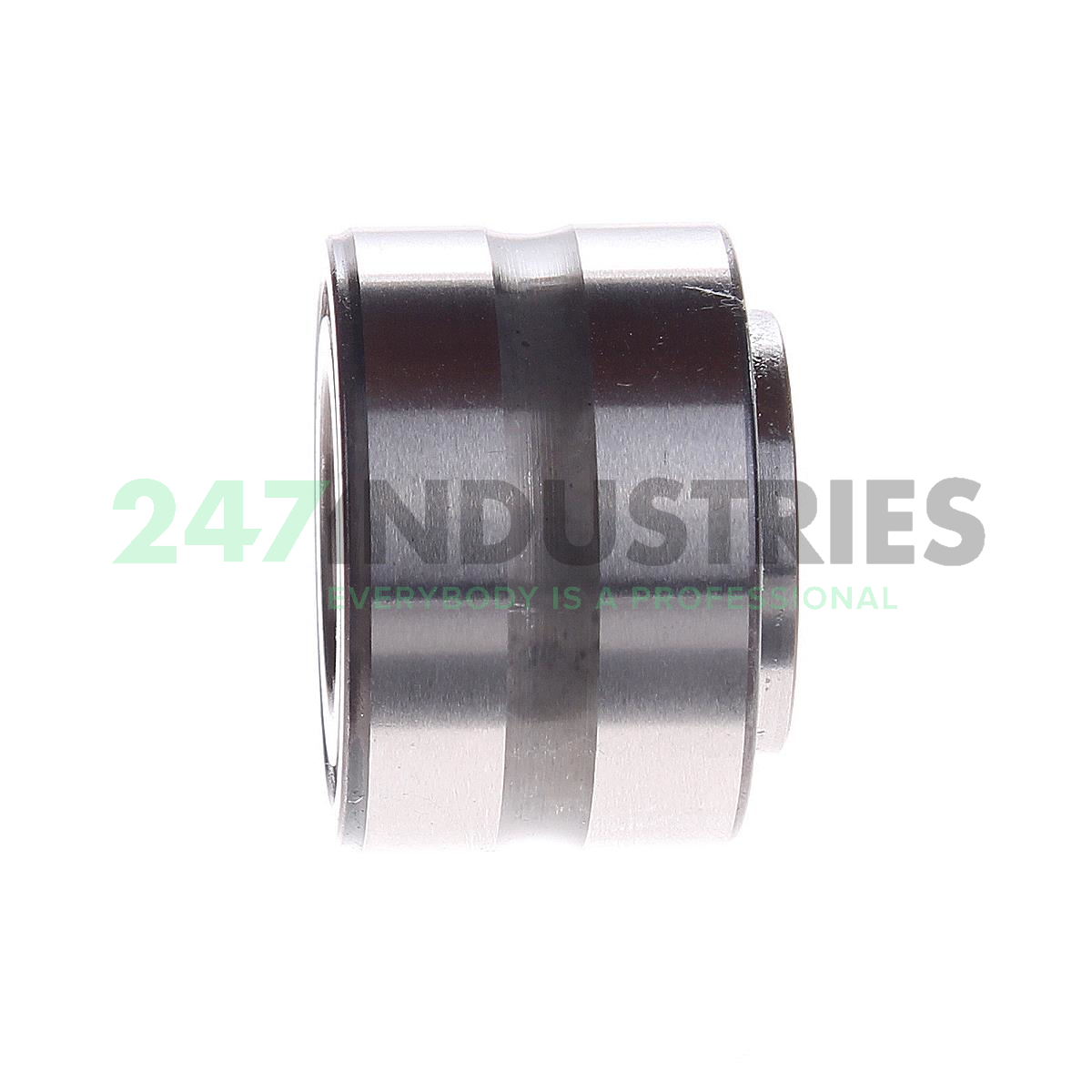

NKIB5902-XL INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 28
3. Width (B) MM 20
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. XL X-Life

Technical details

1. Availability 80 pcs
2. Brand INA
3. Item number NKIB5902-XL INA
4. Also known as 0507828350000
   NKIB5902

5. EAN 4012802736113
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.052

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13600
2. Radial Dynamic Load Rating Cr (N) 12000
3. Axial Static Load Rating C0a (N) 4200
4. Axial Dynamic Load Rating Ca (N) 2900
5. Limiting speed (n G) 21600
6. Reference speed (n ϑr) 17000
7. ECLASS number 23-05-12-01
8. ECLASS2 number 23-05-12-01
9. Medias description Needle roller/angular contact ball bearings NKIB, double direction axial component
