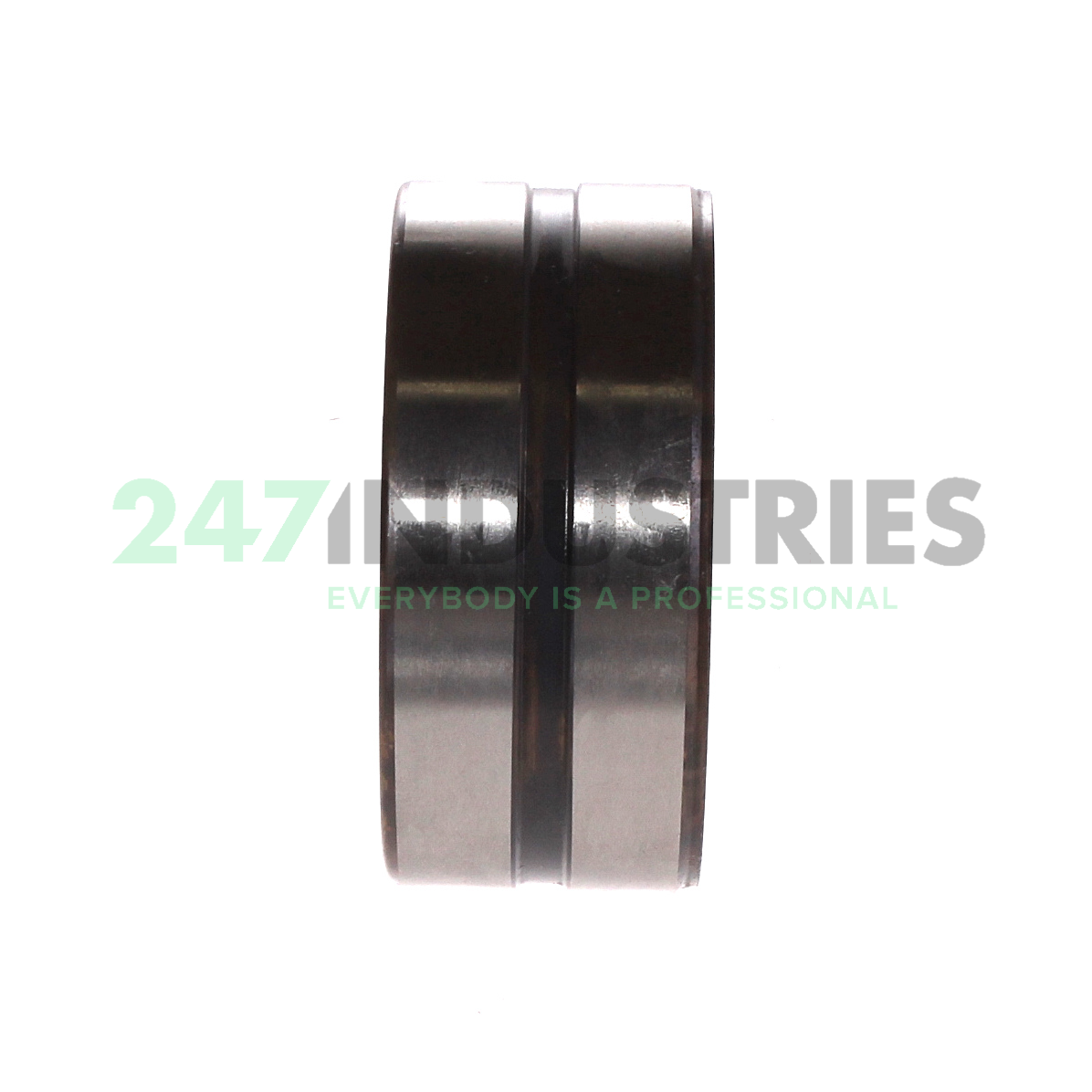

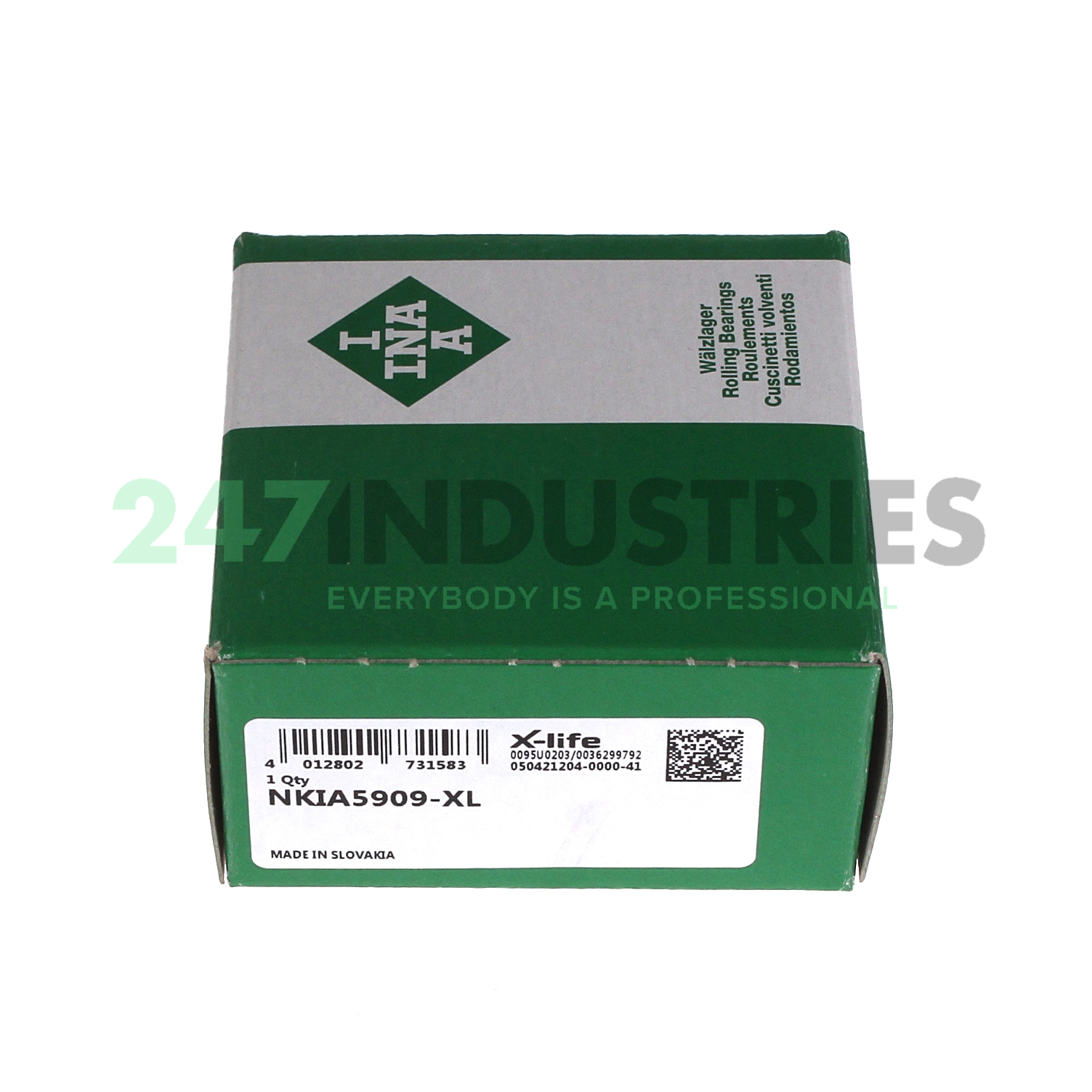

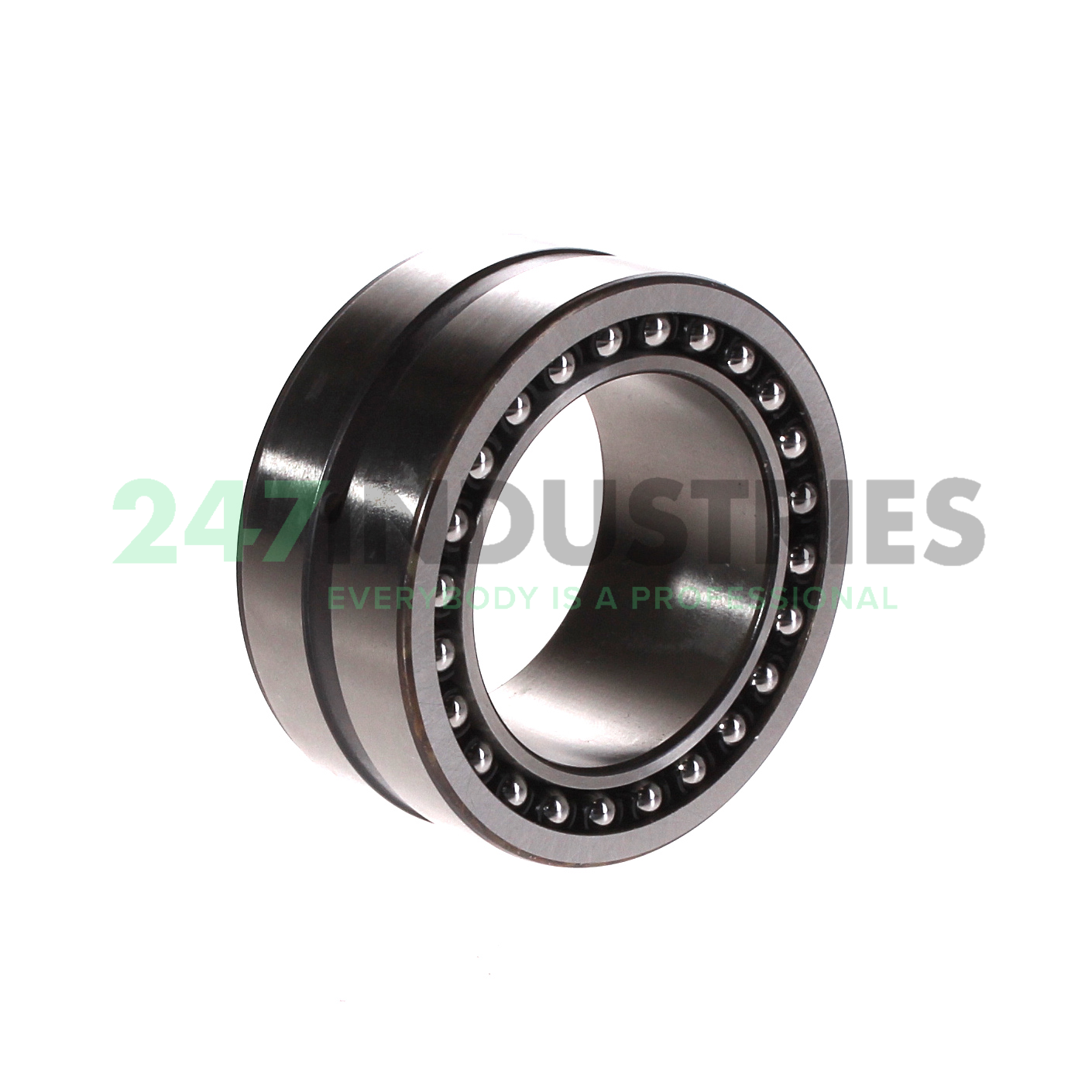

NKIA5909-XL INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 68
3. Width (B) MM 30
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 144 pcs
2. Brand INA
3. Item number NKIA5909-XL INA
4. Also known as 0504212040000
   NKIA5909

5. EAN 4012802731583
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.375

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 73000
2. Radial Dynamic Load Rating Cr (N) 51000
3. Axial Static Load Rating C0a (N) 21400
4. Axial Dynamic Load Rating Ca (N) 9600
5. Limiting speed (n G) 8700
6. Reference speed (n ϑr) 7000
7. ECLASS number 23-05-12-01
8. ECLASS2 number 23-05-12-01
9. Medias description Needle roller/angular contact ball bearings NKIA, single direction axial component, to DIN 5 429-2
