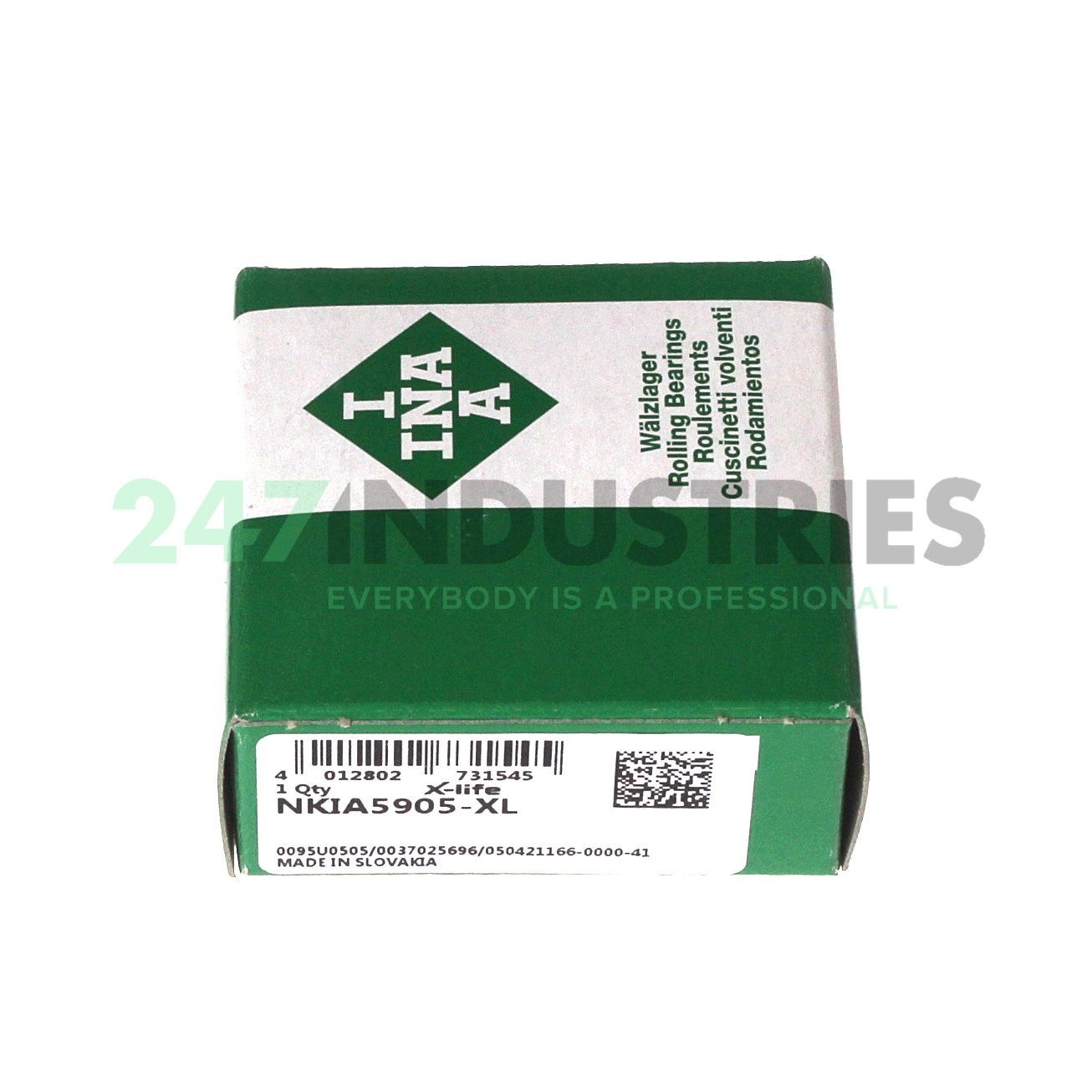

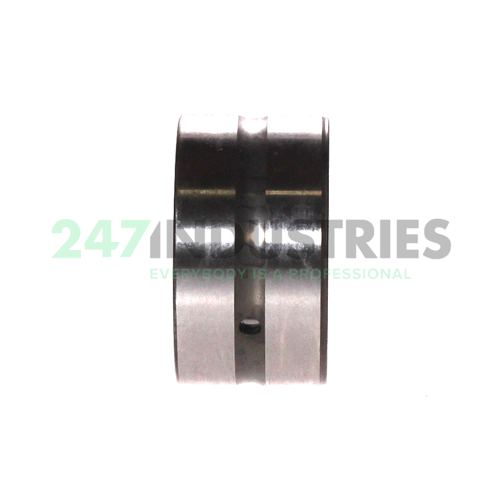

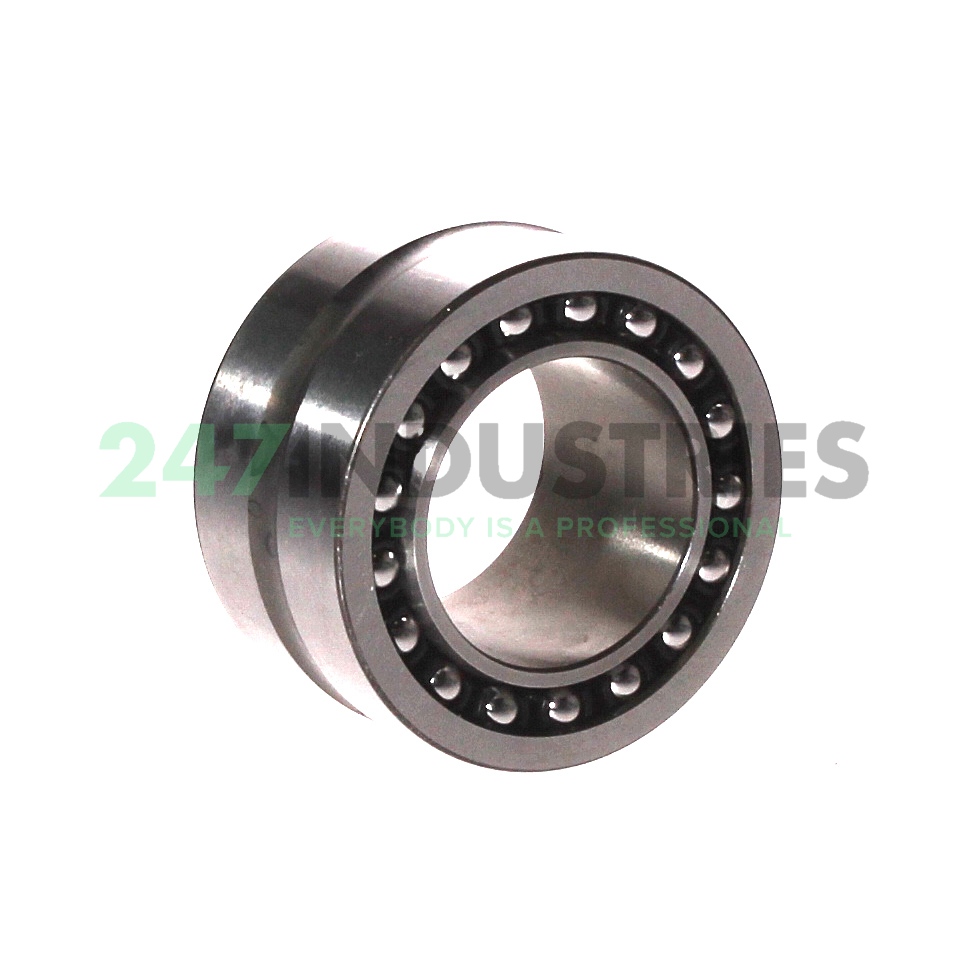

NKIA5905-XL INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 42
3. Width (B) MM 23
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.9055
7. Width (b) mm 23

Suffix description

1. XL X-Life

Technical details

1. Availability 106 pcs
2. Brand INA
3. Item number NKIA5905-XL INA
4. Also known as 0504211660000
   NKIA5905

5. EAN 4012802731545
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 31500
2. Radial Dynamic Load Rating Cr (N) 26500
3. Axial Static Load Rating C0a (N) 9300
4. Axial Dynamic Load Rating Ca (N) 5400
5. Limiting speed (n G) 14600
6. Reference speed (n ϑr) 12000
7. ECLASS number 23-05-12-01
8. ECLASS2 number 23-05-12-01

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
