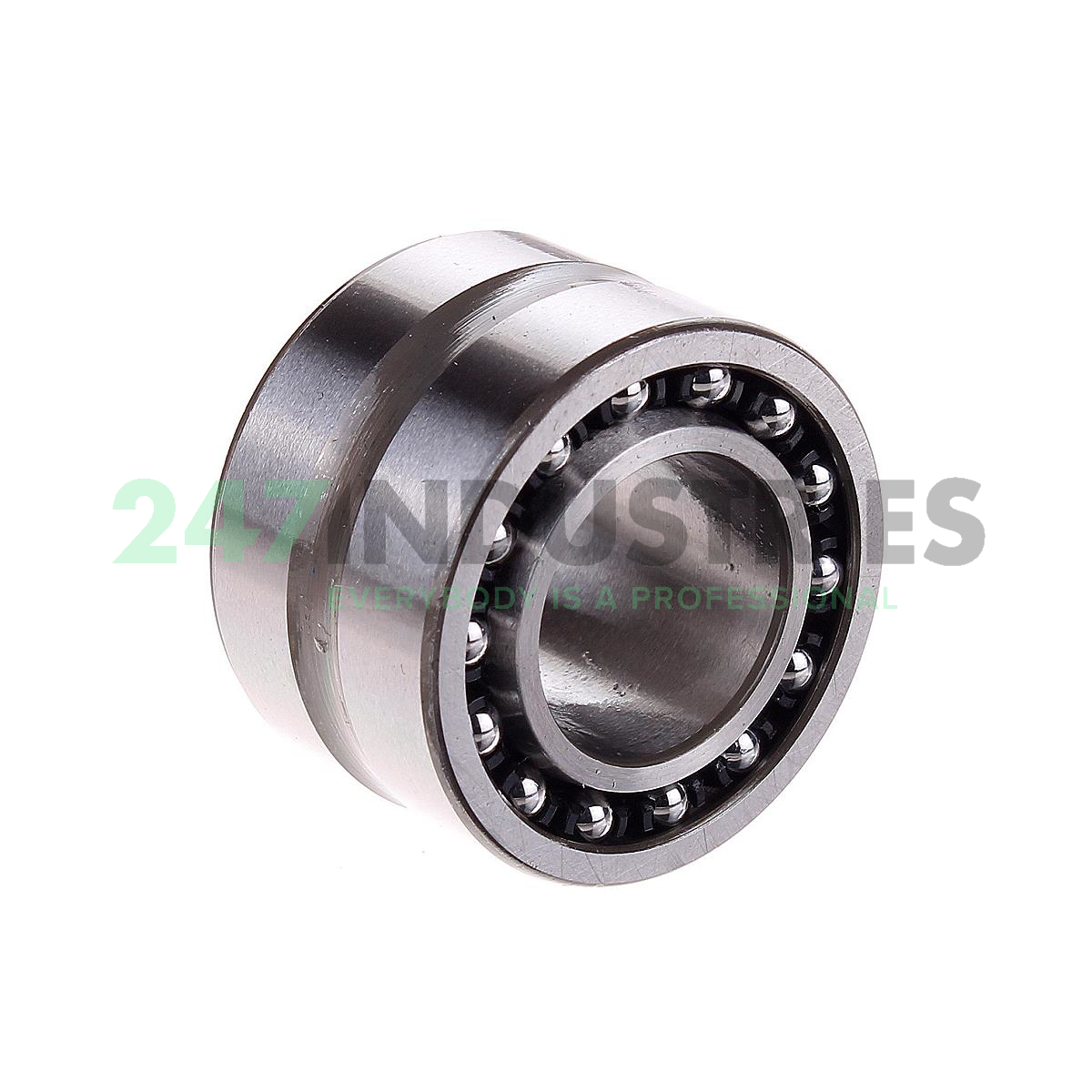

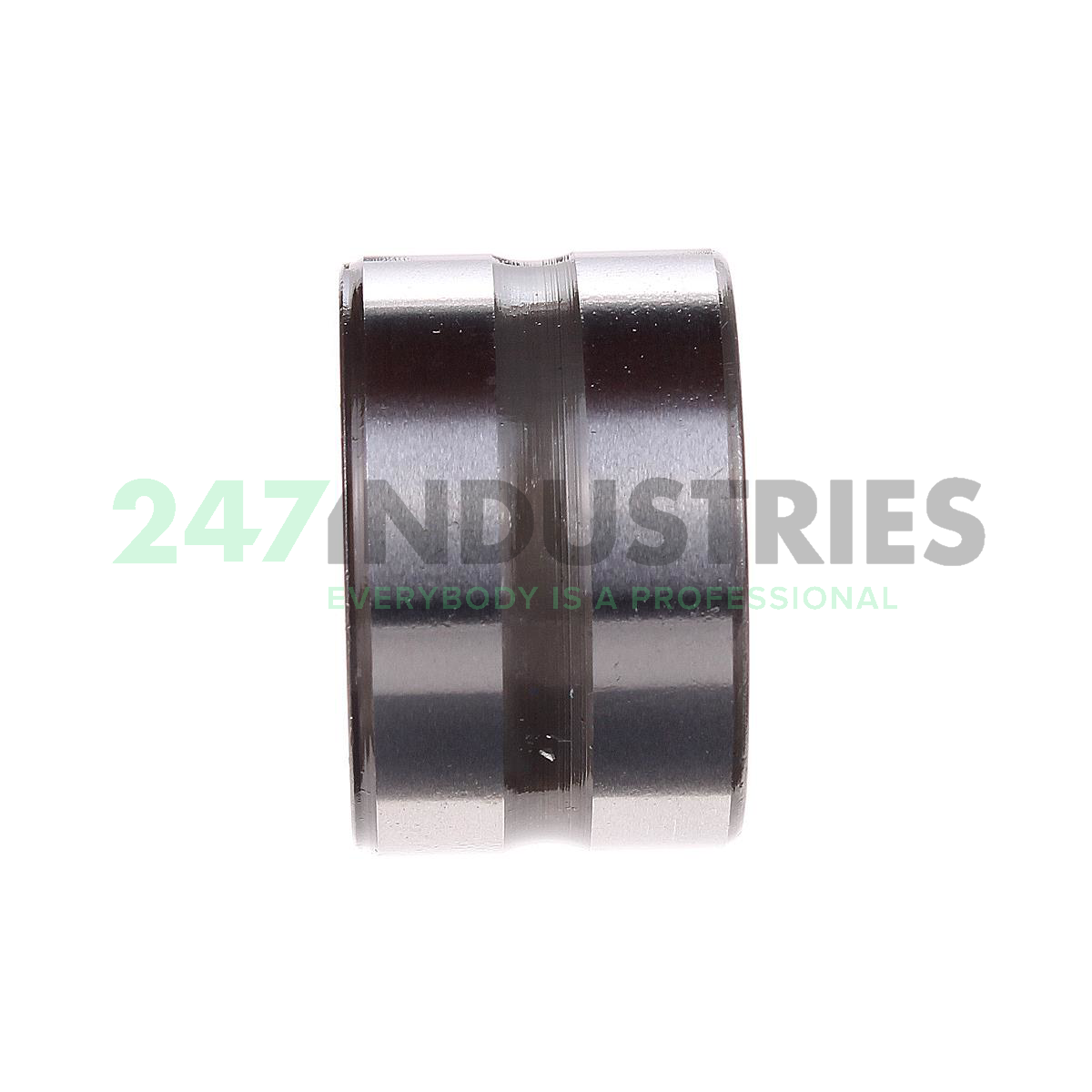

NKIA5902-XL INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 28
3. Width (B) MM 18
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.7087
7. Width (b) mm 18

Suffix description

1. XL X-Life

Technical details

1. Availability 150 pcs
2. Brand INA
3. Item number NKIA5902-XL INA
4. Also known as 0504211230000
   NKIA5902

5. EAN 4012802731507
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.05

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13600
2. Radial Dynamic Load Rating Cr (N) 12000
3. Axial Static Load Rating C0a (N) 4200
4. Axial Dynamic Load Rating Ca (N) 2900
5. Limiting speed (n G) 21600
6. Reference speed (n ϑr) 17000
7. ECLASS number 23-05-12-01
8. ECLASS2 number 23-05-12-01
