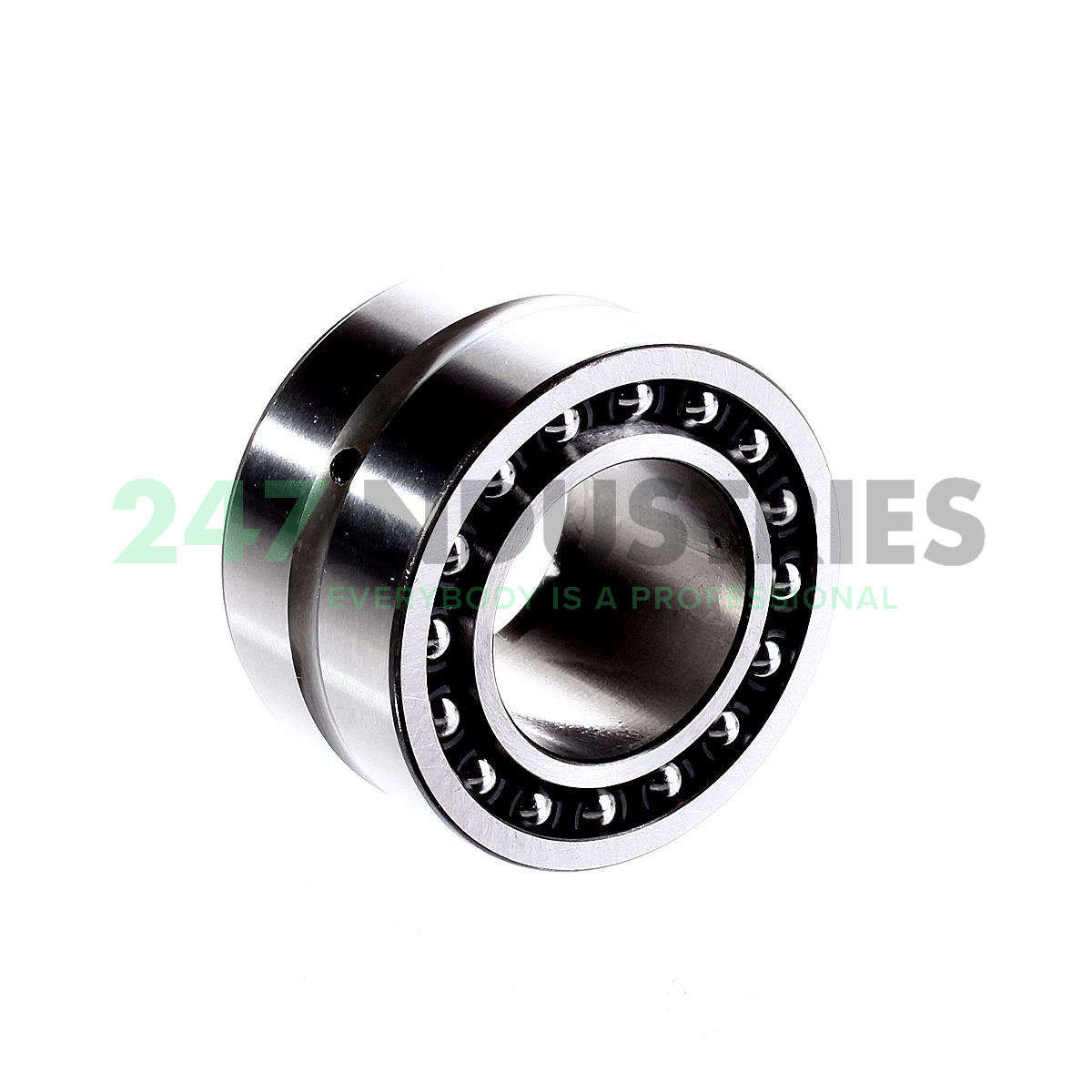

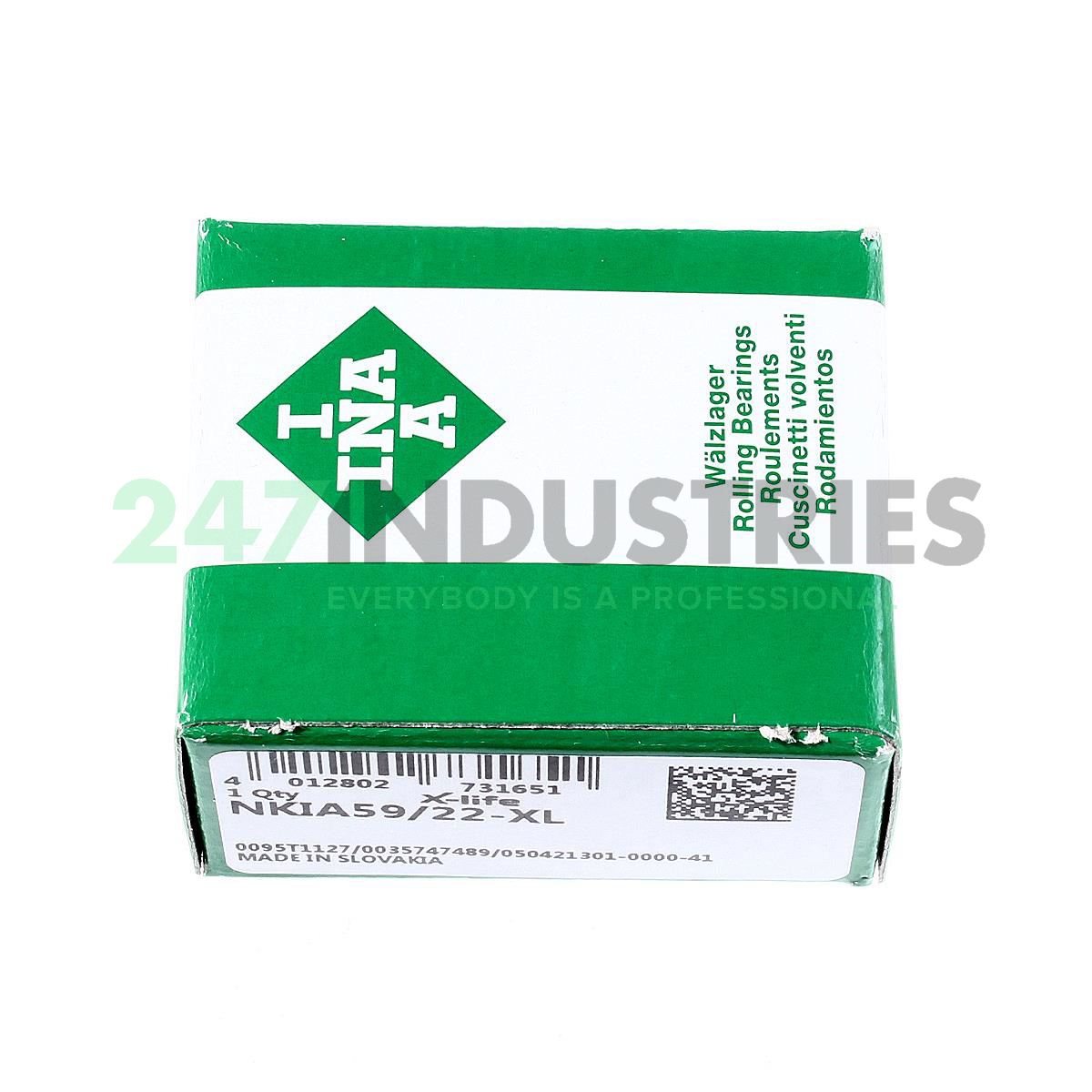

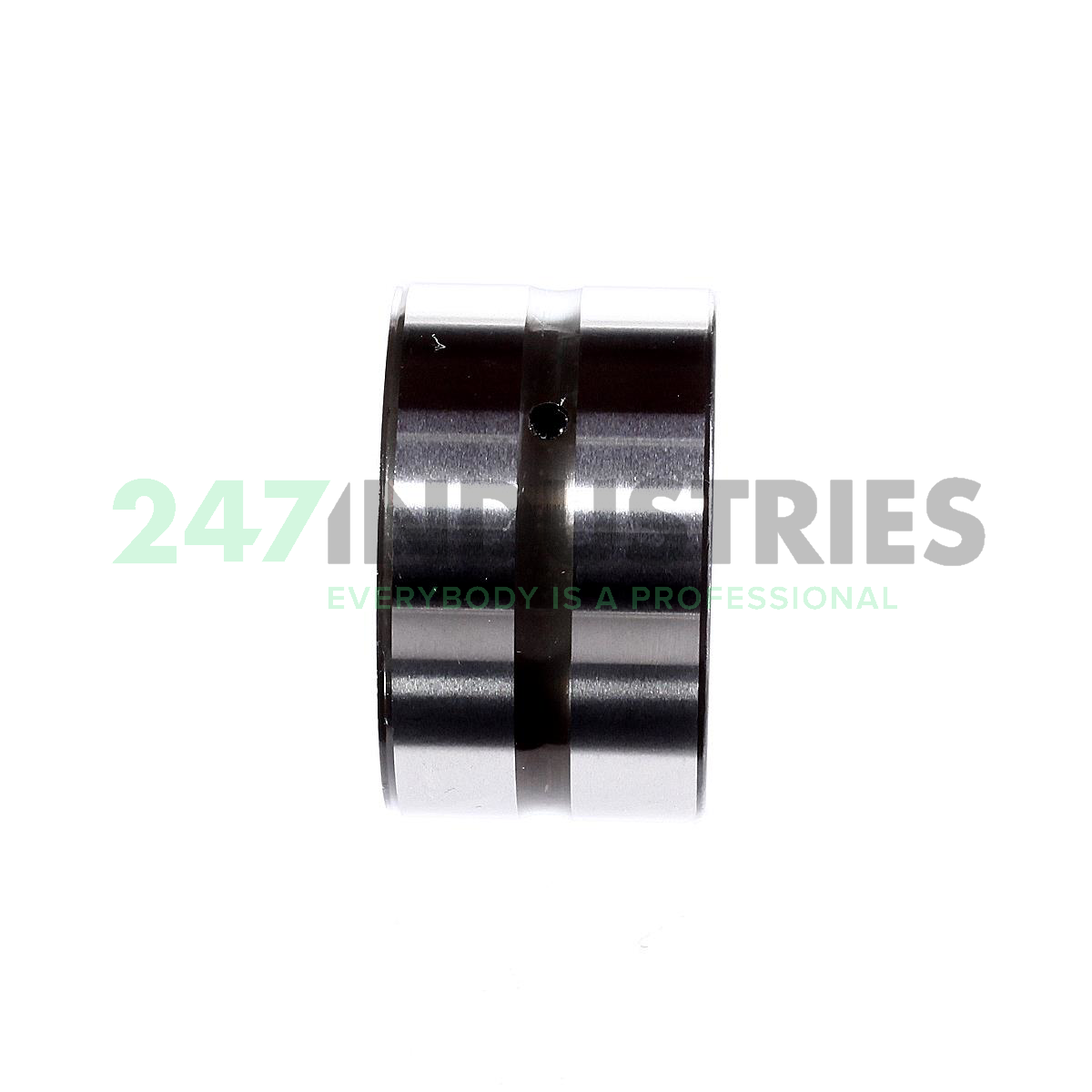

NKIA59/22-XL INA

All dimensions

1. Inner (d) MM 22
2. Outer (D) MM 39
3. Width (B) MM 23
4. Inner (d) Inch 0.8661
5. Outer (D) Inch 1.5354
6. Width (B) Inch 0.9055
7. Width (b) mm 23

Suffix description

1. XL X-Life

Technical details

1. Availability 268 pcs
2. Brand INA
3. Item number NKIA59/22-XL INA
4. Also known as 0504213010000
   NKIA59/22

5. EAN 4012802731651
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.118

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 29500
2. Radial Dynamic Load Rating Cr (N) 26000
3. Axial Static Load Rating C0a (N) 8600
4. Axial Dynamic Load Rating Ca (N) 5300
5. Limiting speed (n G) 16100
6. Reference speed (n ϑr) 12000
7. ECLASS number 23-05-12-01
8. ECLASS2 number 23-05-12-01
