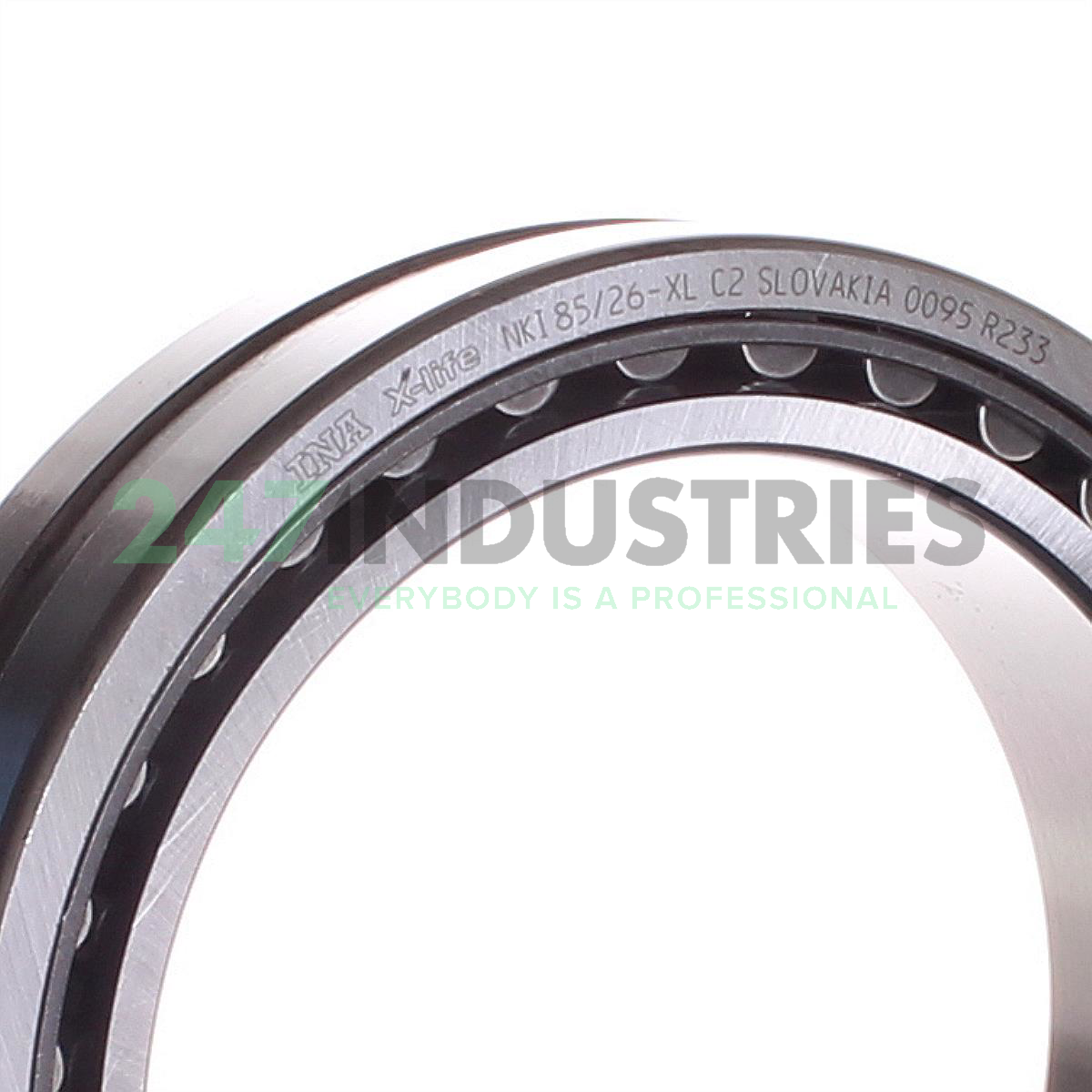

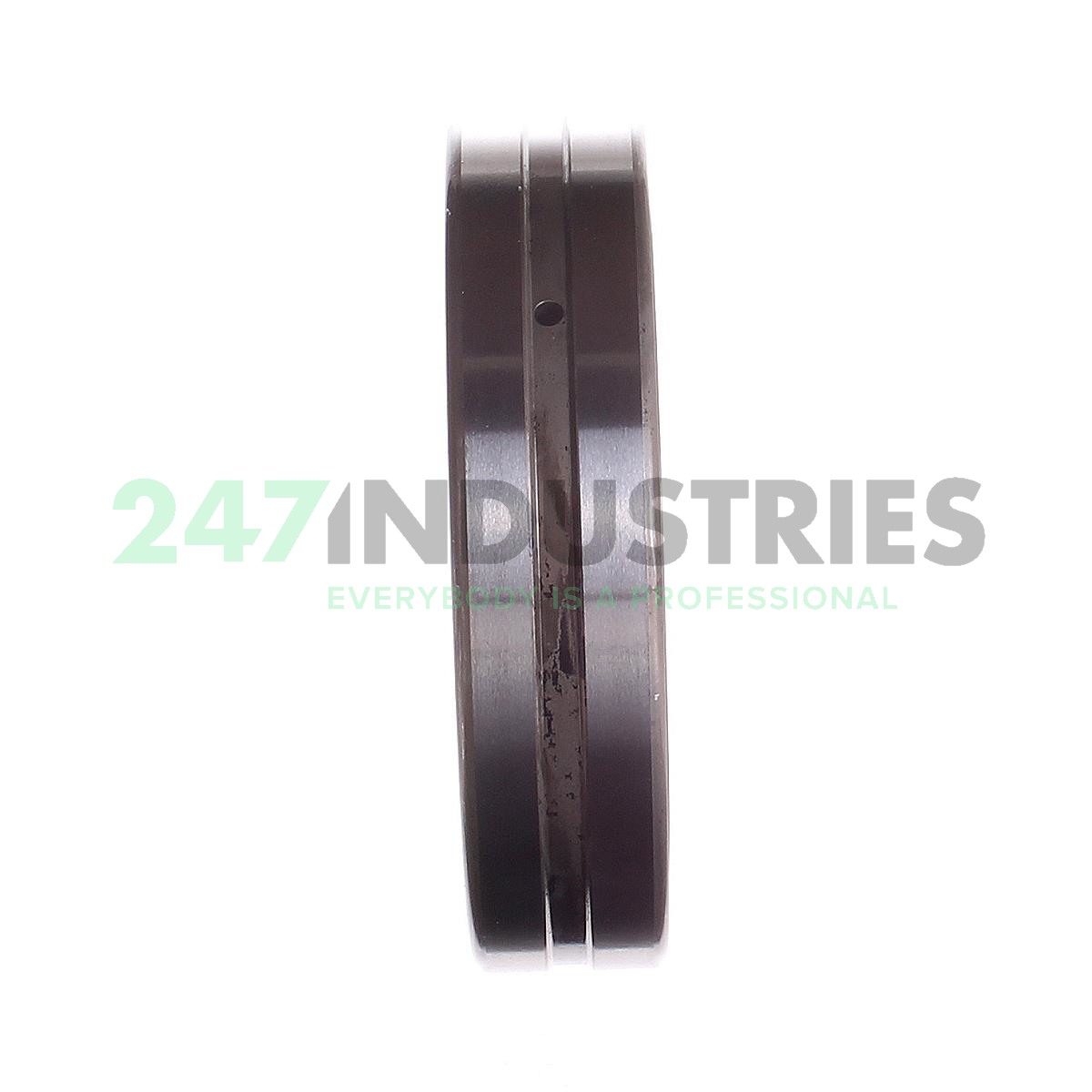

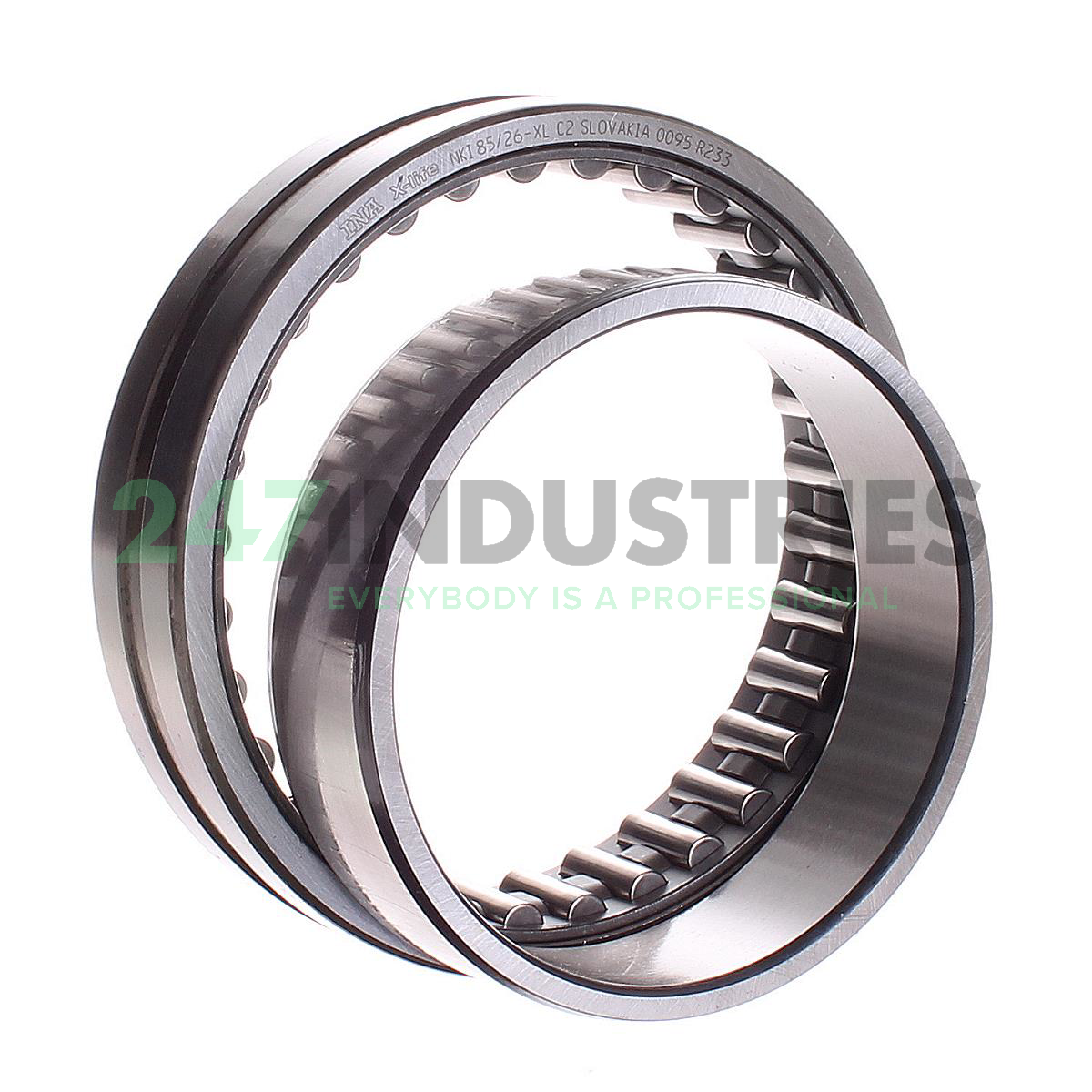

NKI85/26-XL-C2 INA

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 115
3. Width (B) MM 26
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 4.5276
6. Width (B) Inch 1.0236
7. Width (b) mm 26

Suffix description

1. XL X-Life
2. C2 Bearing Internal Clearance Smaller Than Normal

Technical details

1. Availability 10 pcs
2. Brand INA
3. Item number NKI85/26-XL-C2 INA
4. Also known as 0507628500020
   NA8511526C2
   NBI8511526C2
   NKI85/26-C2
   NKJ85/26ASR1.C2
   TAFI8511526C2

5. EAN 4012802701999
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.743

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 137000
2. Radial Dynamic Load Rating Cr (N) 83000
3. Limiting speed (n G) 4850
4. Reference speed (n ϑr) 3100
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series
