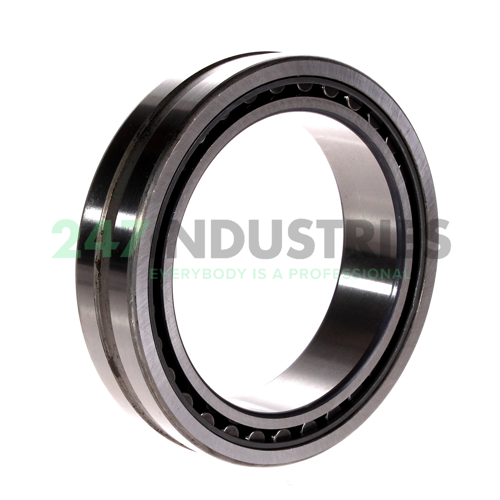

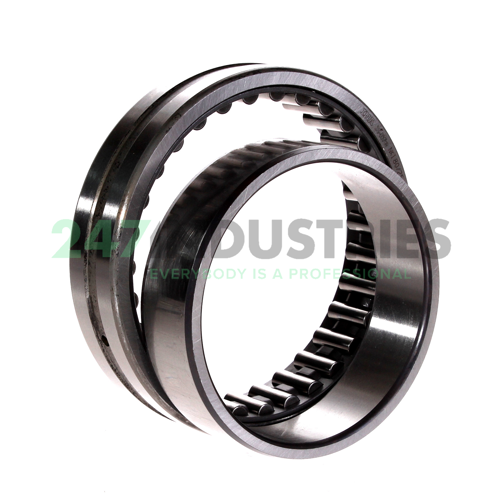

NKI80/25-XL INA

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 110
3. Width (B) MM 25
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.9843
7. Width (b) mm 25

Suffix description

1. XL X-Life

Technical details

1. Availability 36 pcs
2. Brand INA
3. Item number NKI80/25-XL INA
4. Also known as 0507628340000
   NA8011025
   NBI8011025
   NKI80/25
   NKJ80/25A
   TAFI8011025

5. EAN 4012802216905
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.677

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 132000
2. Radial Dynamic Load Rating Cr (N) 81000
3. Limiting speed (n G) 5100
4. Reference speed (n ϑr) 3150
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
