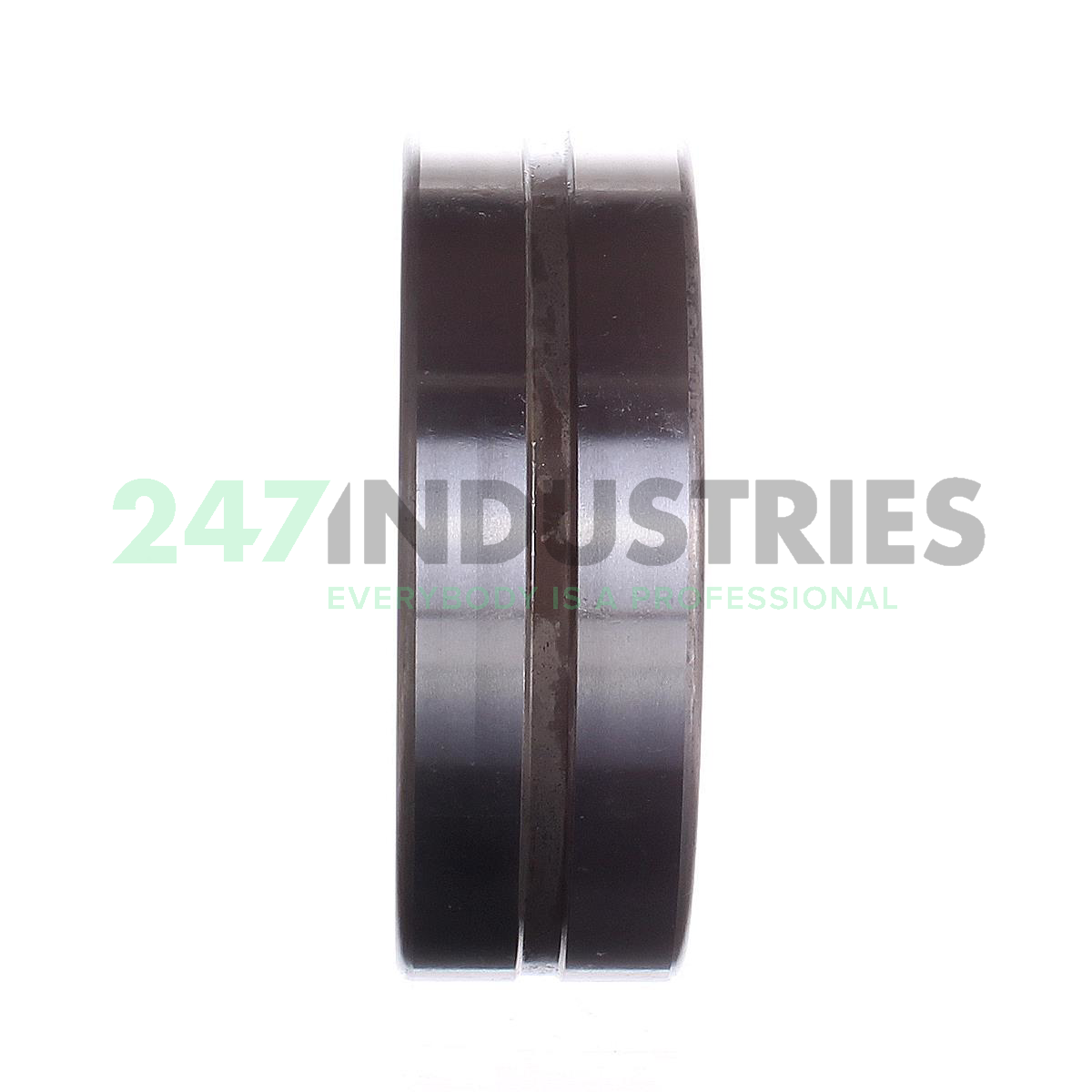

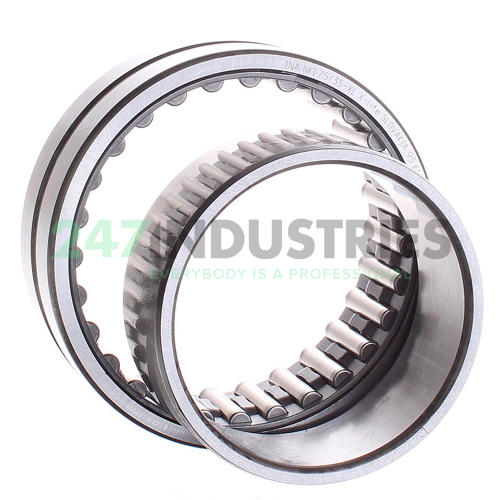

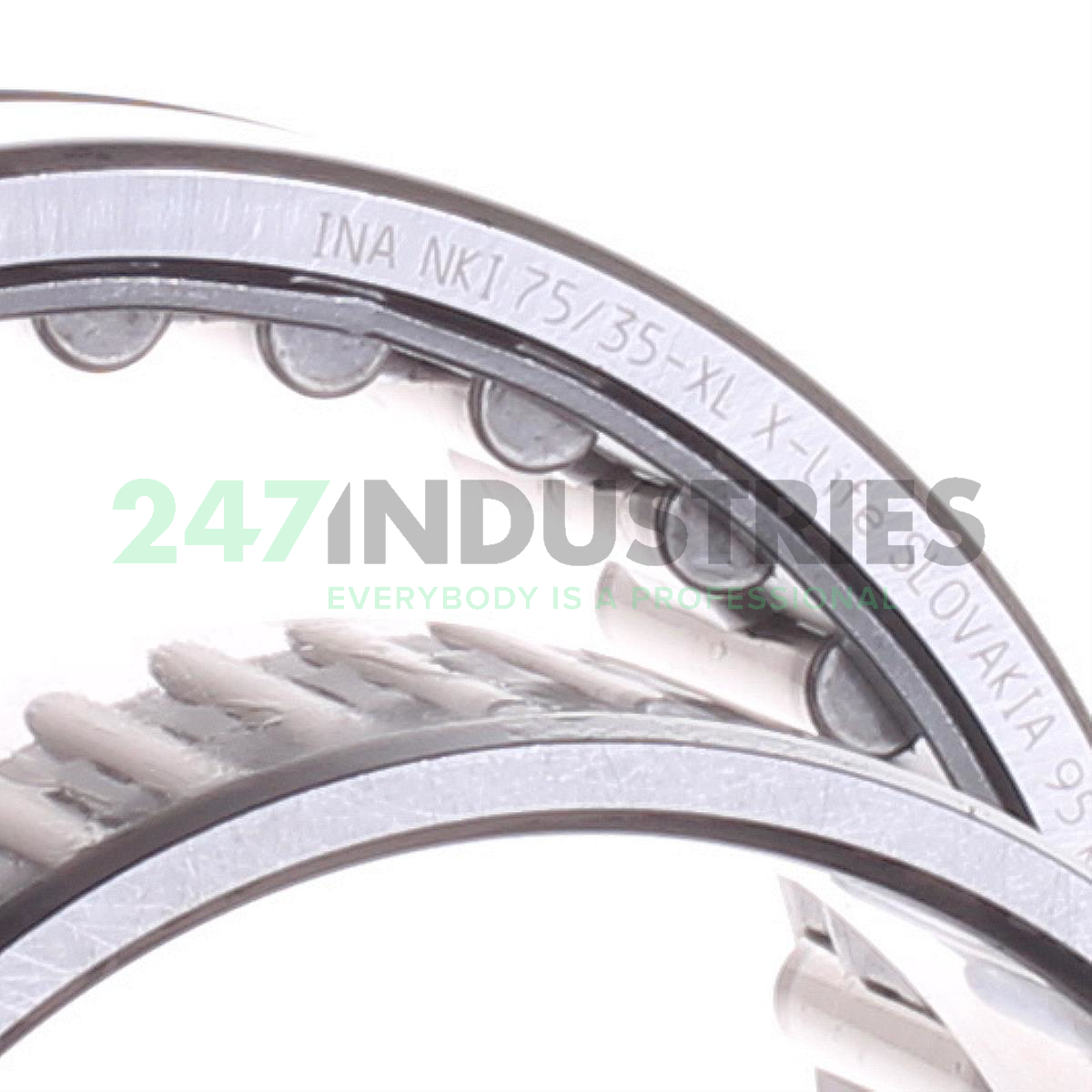

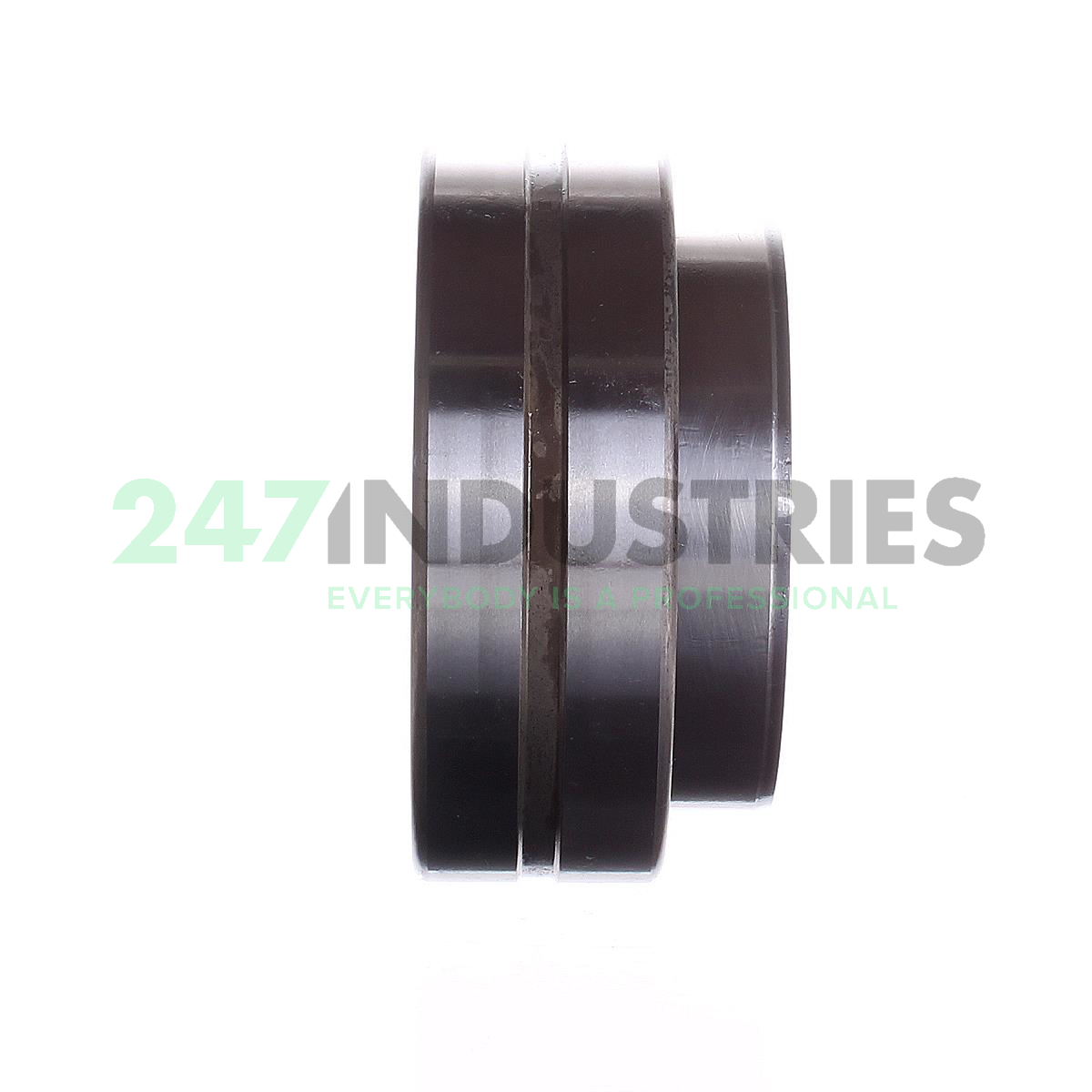

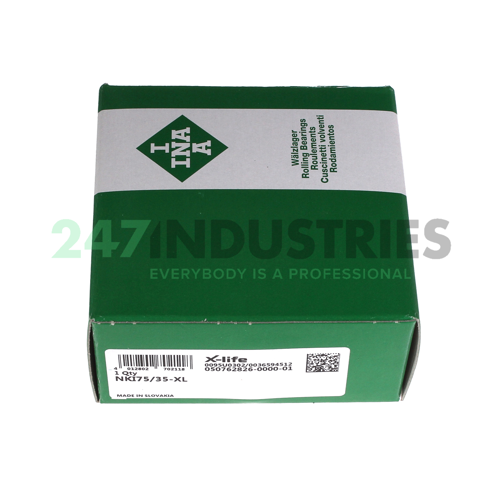

NKI75/35-XL INA

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 105
3. Width (B) MM 35
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 4.1339
6. Width (B) Inch 1.378
7. Width (b) mm 35

Suffix description

1. XL X-Life

Technical details

1. Availability 27 pcs
2. Brand INA
3. Item number NKI75/35-XL INA
4. Also known as 0507628260000
   NA7510535
   NBI7510535
   NKI75/35
   NKJ75/35A
   TAFI7510535

5. EAN 4012802702118
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.908

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 193000
2. Radial Dynamic Load Rating Cr (N) 111000
3. Limiting speed (n G) 5400
4. Reference speed (n ϑr) 3200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
