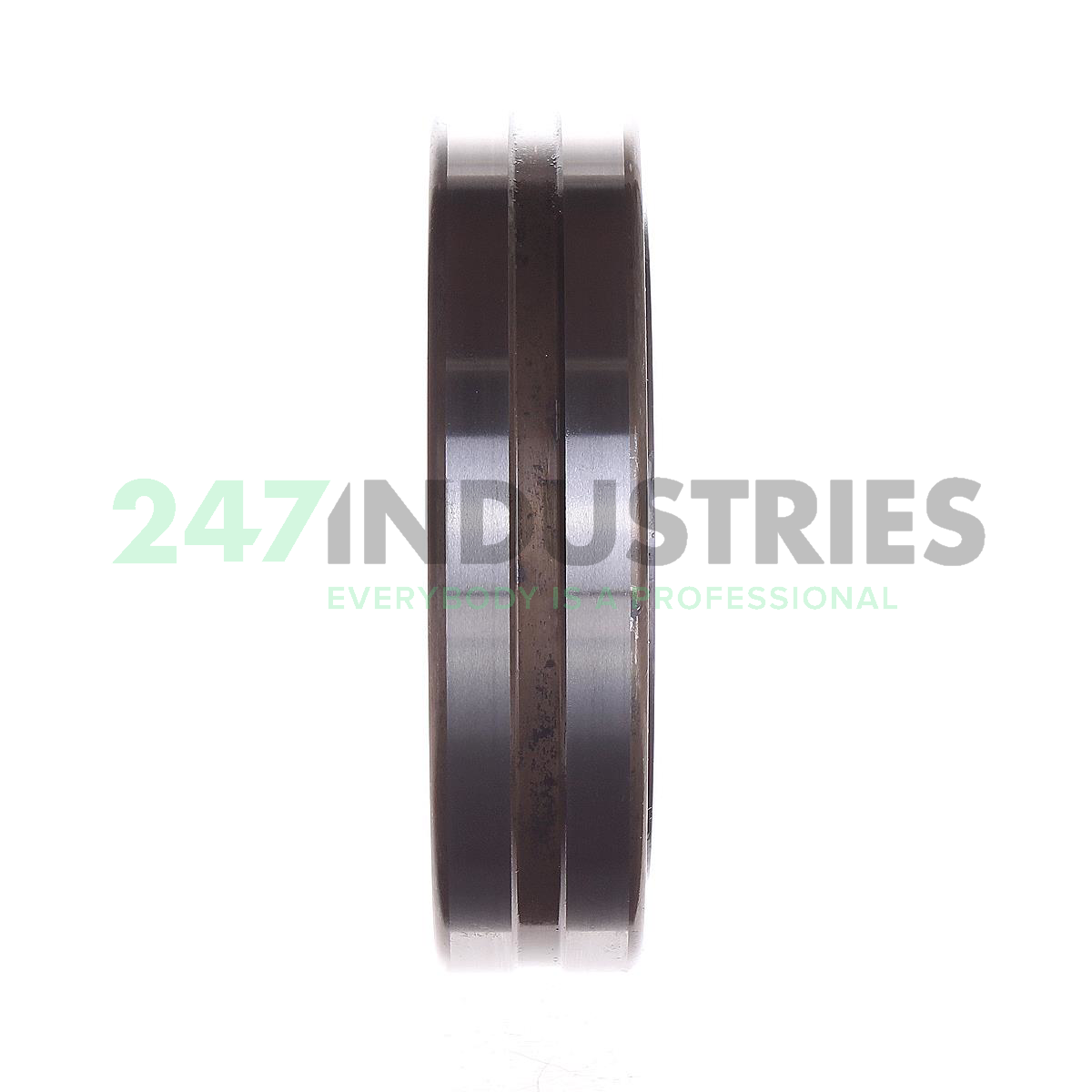

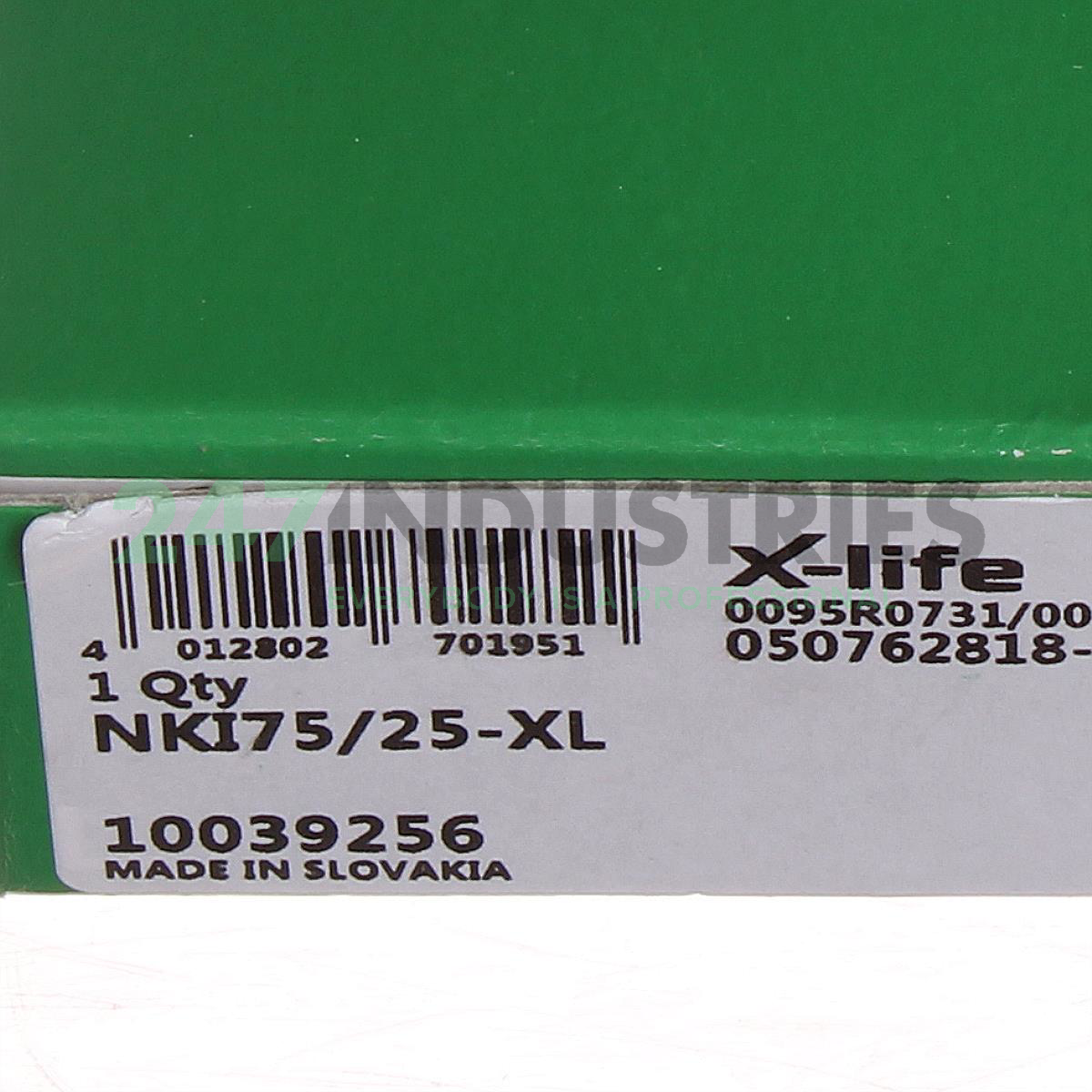

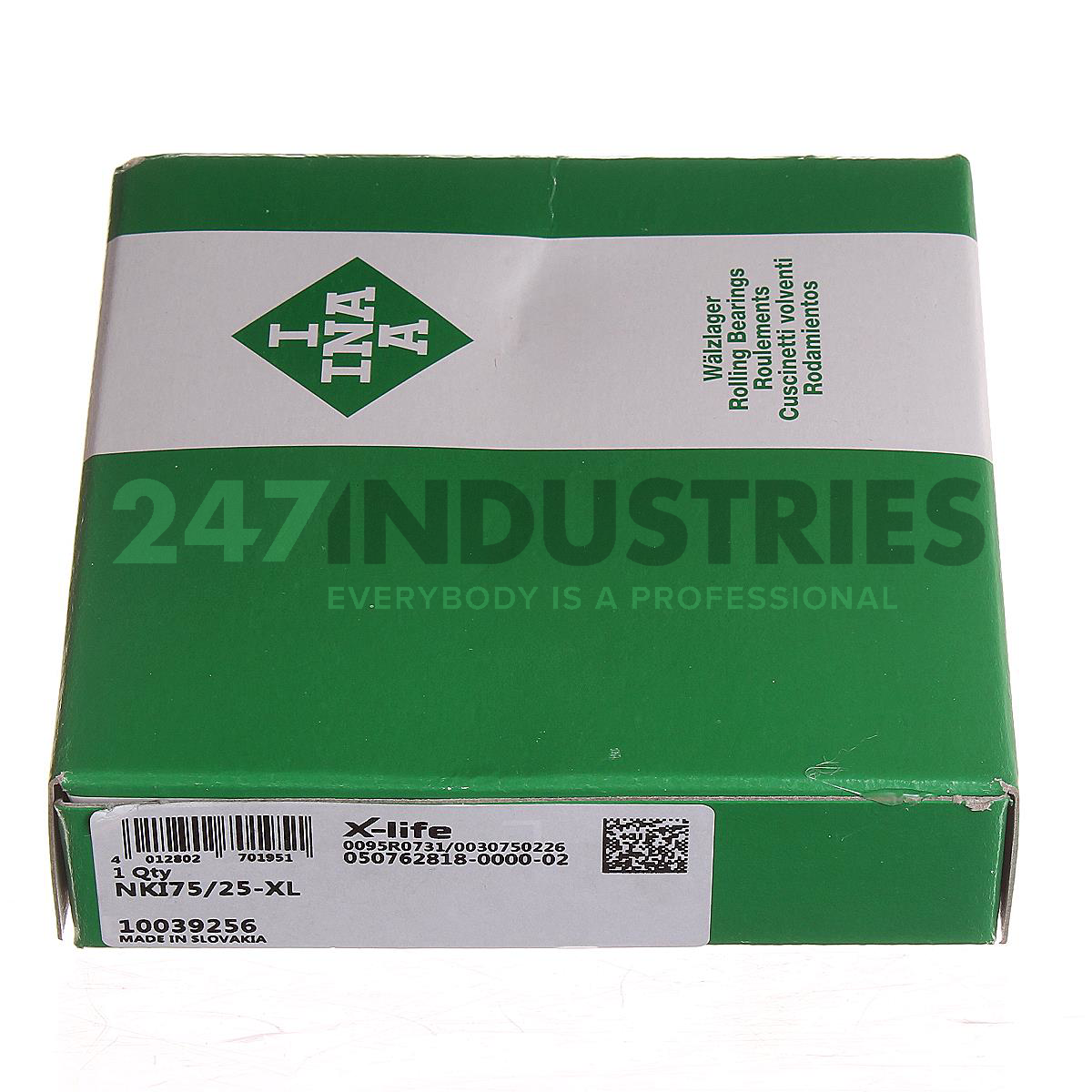

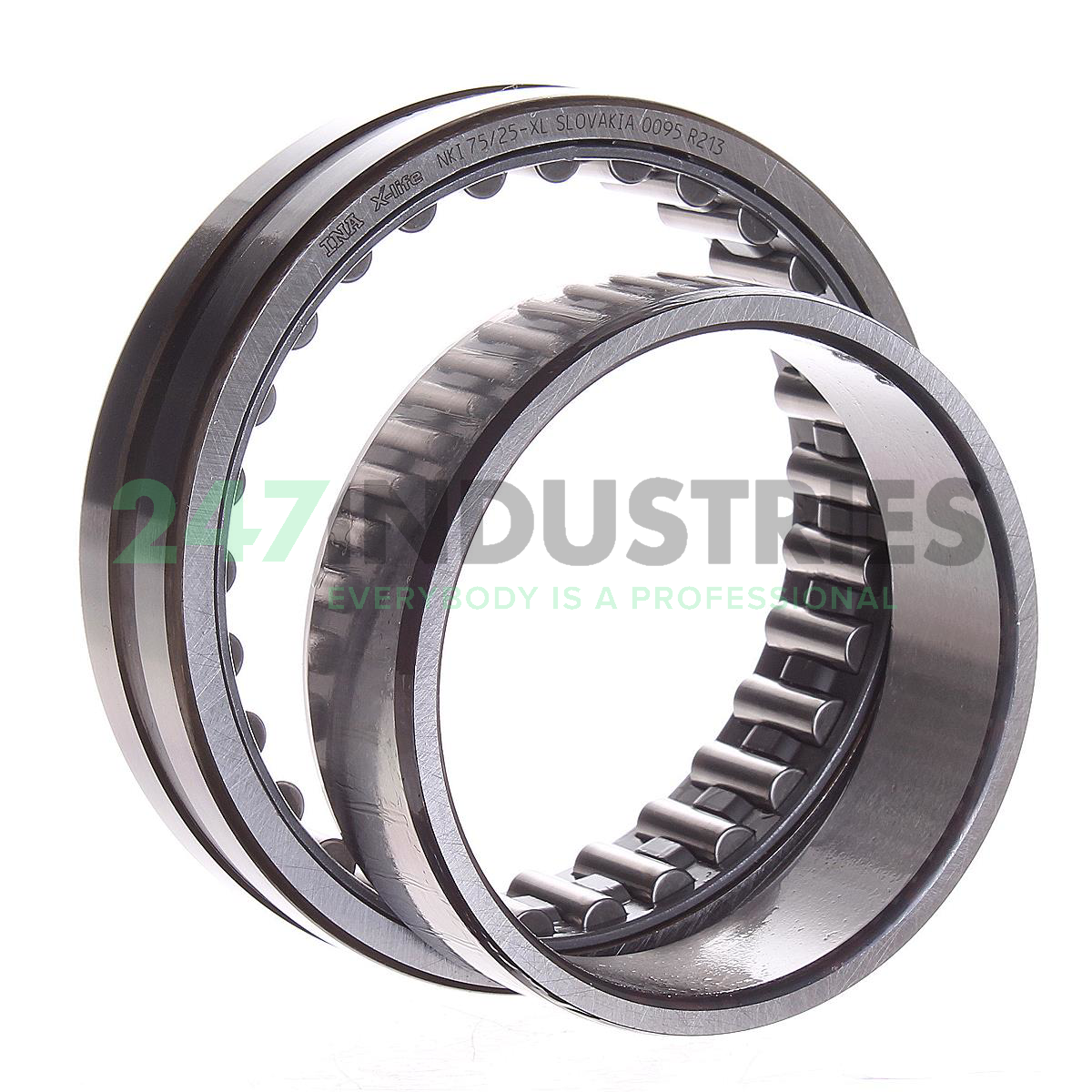

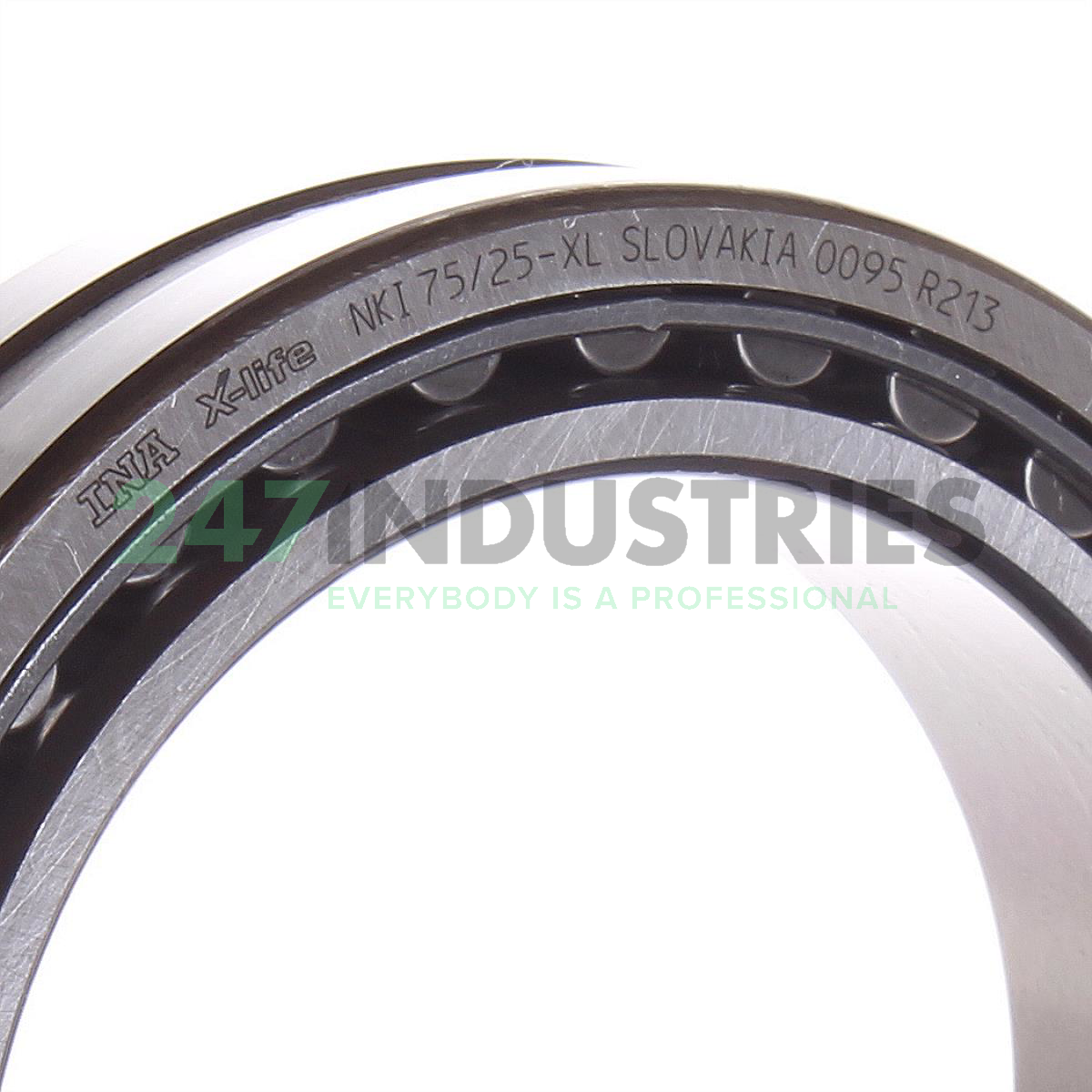

NKI75/25-XL INA

All dimensions

1. Inner (d) MM 75,00
2. Outer (D) MM 105,00
3. Width (B) MM 25,00
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 4.1339
6. Width (B) Inch 0.9843
7. Width (b) mm 25,00

Suffix description

1. XL X-Life

Technical details

1. Availability 16 pcs
2. Brand INA
3. Item number NKI75/25-XL INA
4. Also known as 0507628180000
   NA7510525
   NKI75/25
   NKJ75/25A
   TAFI7510525

5. EAN 4012802701951
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.641

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 123000
2. Radial Dynamic Load Rating Cr (N) 78000
3. Basic static load rating, radial (C 0r) "123000.0000"
4. Limiting speed (n G) "5400.0000"
5. Reference speed (n ϑr) "3300.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NKI, light series
