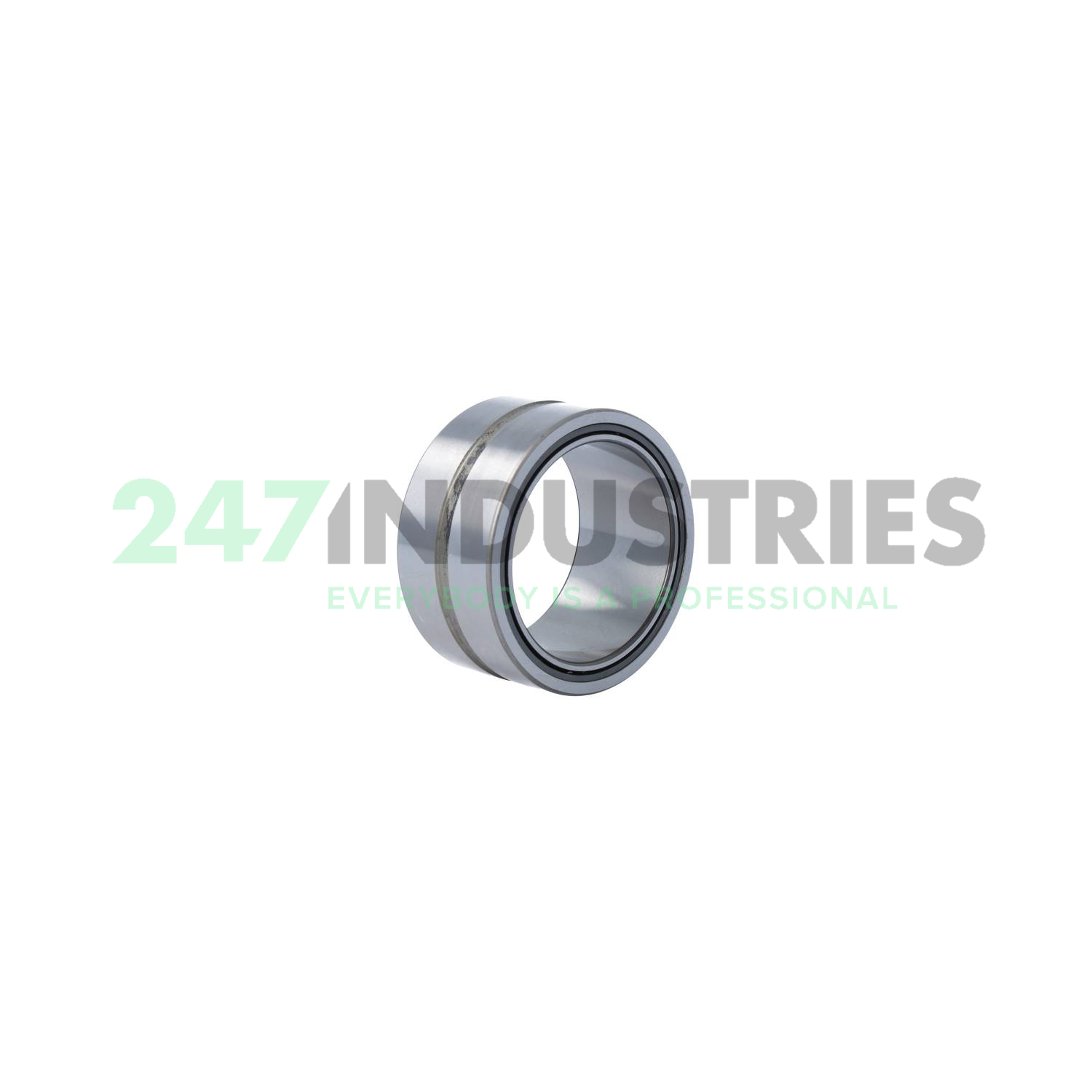

NKI55/35-XL INA

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 72
3. Width (B) MM 35
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.378
7. Width (b) mm 35

Suffix description

1. XL X-Life

Technical details

1. Availability 251 pcs
2. Brand INA
3. Item number NKI55/35-XL INA
4. Also known as 0507624600000
   NA557235
   NBI557235
   NKI55/35
   NKJ55/35A
   TAFI557235

5. EAN 4012802252507
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.379

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 130000
2. Radial Dynamic Load Rating Cr (N) 63000
3. Limiting speed (n G) 7700
4. Reference speed (n ϑr) 4550
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
