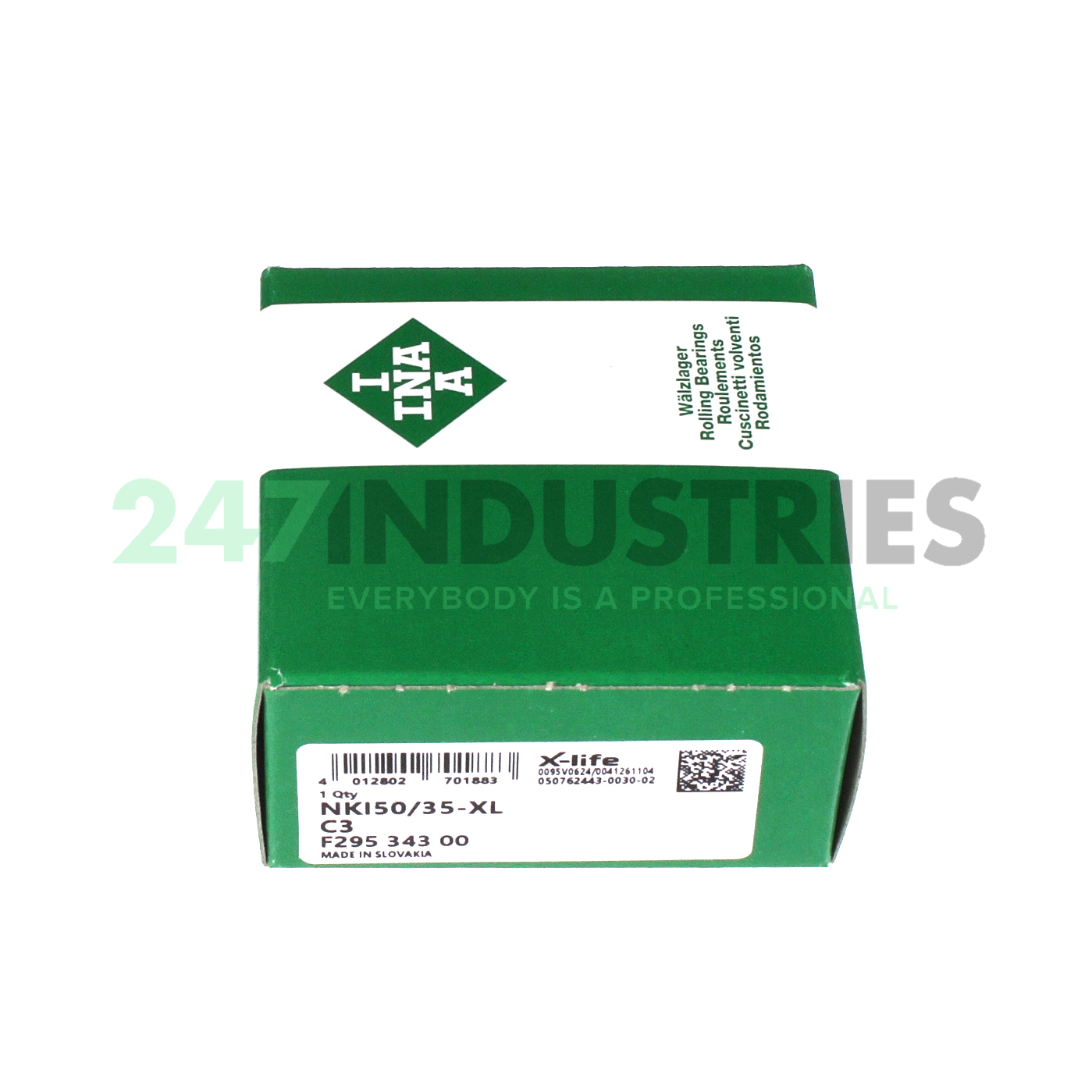

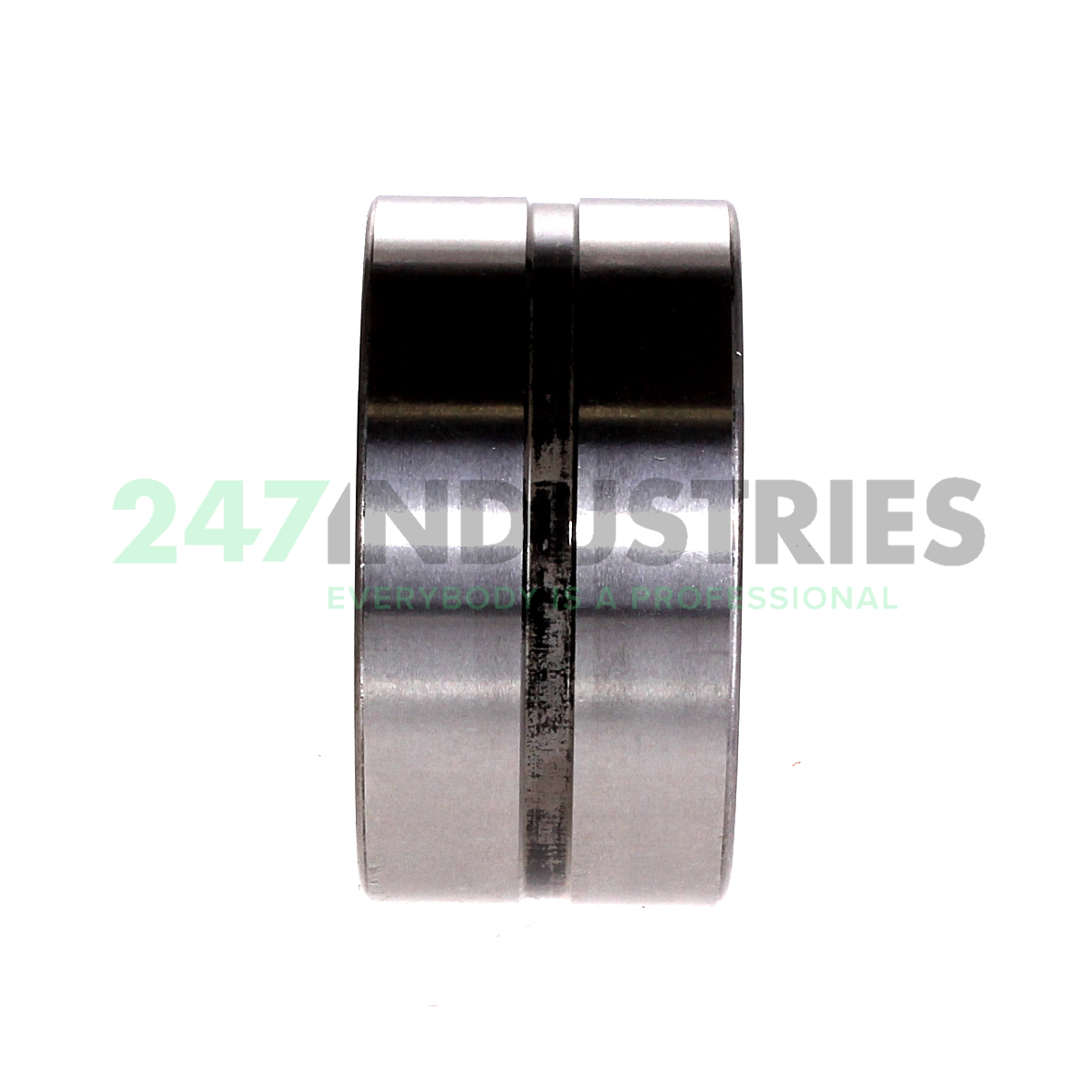

NKI50/35-XL-C3 INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 68
3. Width (B) MM 35
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.378
7. Width (b) mm 35

Suffix description

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 80 pcs
2. Brand INA
3. Item number NKI50/35-XL-C3 INA
4. Also known as 0507624430030
   NKI50/35-C3

5. EAN 4012802701883
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.379

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 118000
2. Radial Dynamic Load Rating Cr (N) 60000
3. Limiting speed (n G) 8400
4. Reference speed (n ϑr) 4900
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
