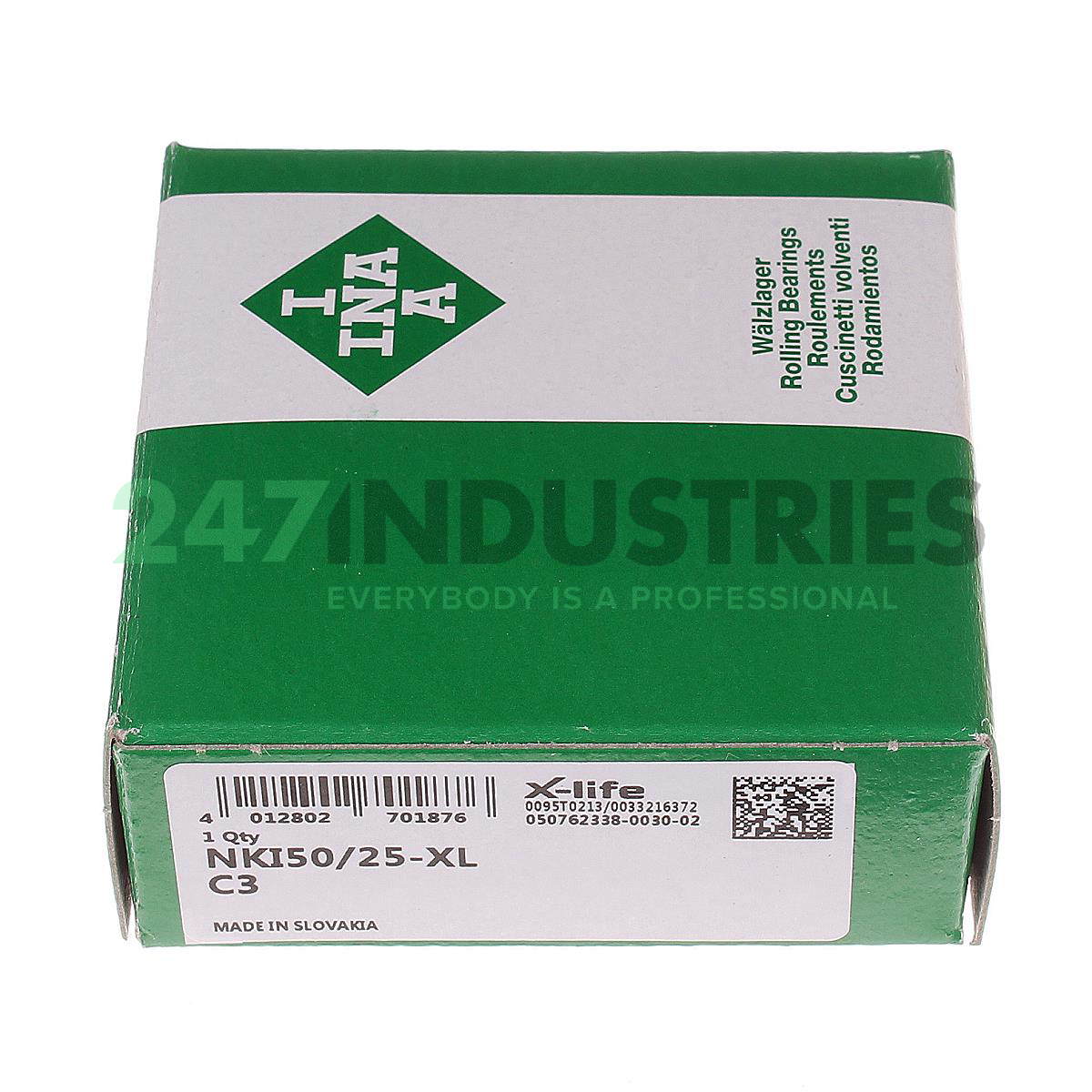

NKI50/25-XL-C3 INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 68
3. Width (B) MM 25
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.9843
7. Width (b) mm 25

Suffix description

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 13 pcs
2. Brand INA
3. Item number NKI50/25-XL-C3 INA
4. Also known as 0507623380030
   NA506825C3
   NBI506825C3
   NKI50/25-C3
   NKJ50/25A.C3
   TAFI506825C3

5. EAN 4012802701876
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.27

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 82000
2. Limiting speed (n G) 8400
3. Reference speed (n ϑr) 4950
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
