NKI45/35-TV-XL INA

€ 53,95 ex VAT
€ 65,28 incl. VAT
€ 65,28 incl. VAT
€ 53,95 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

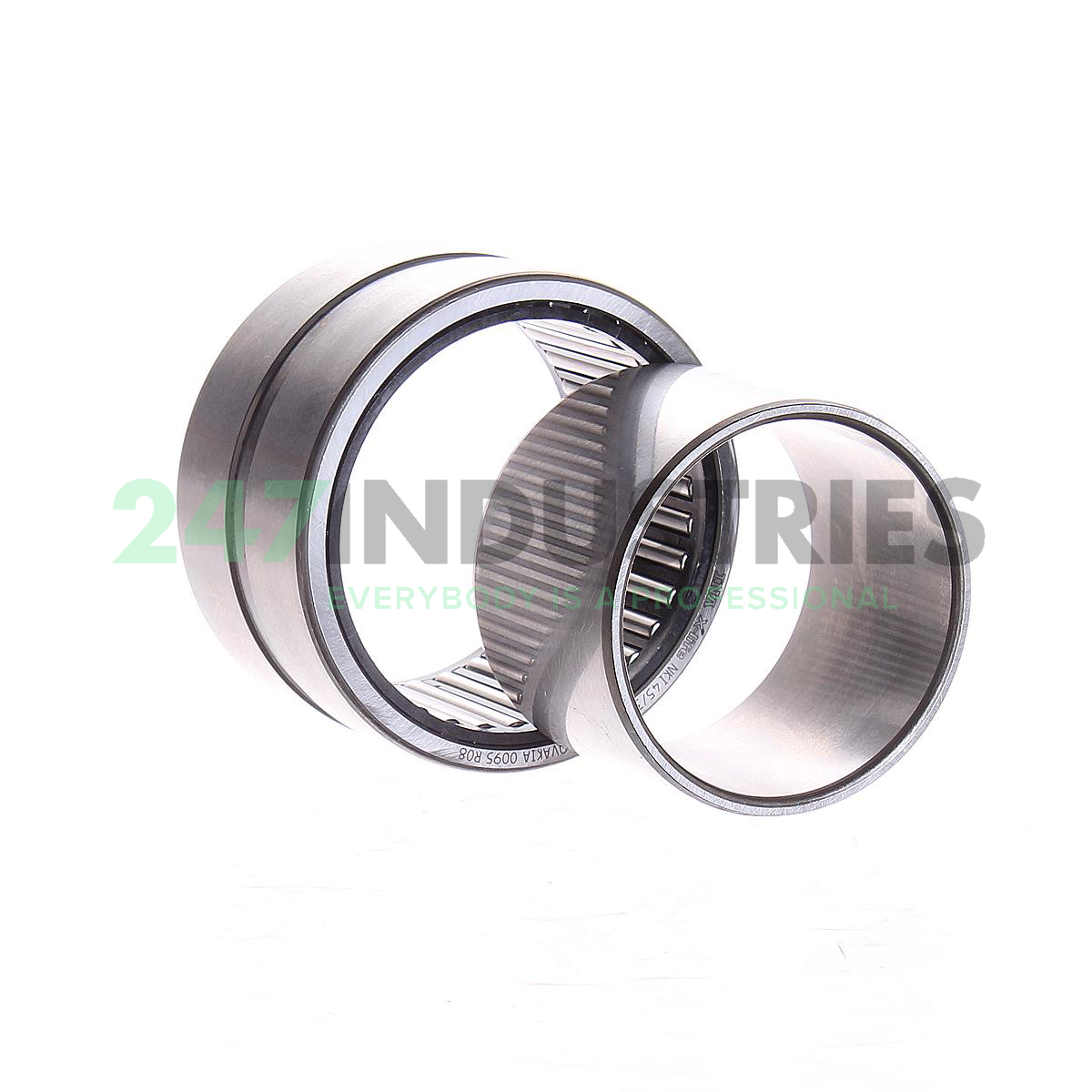

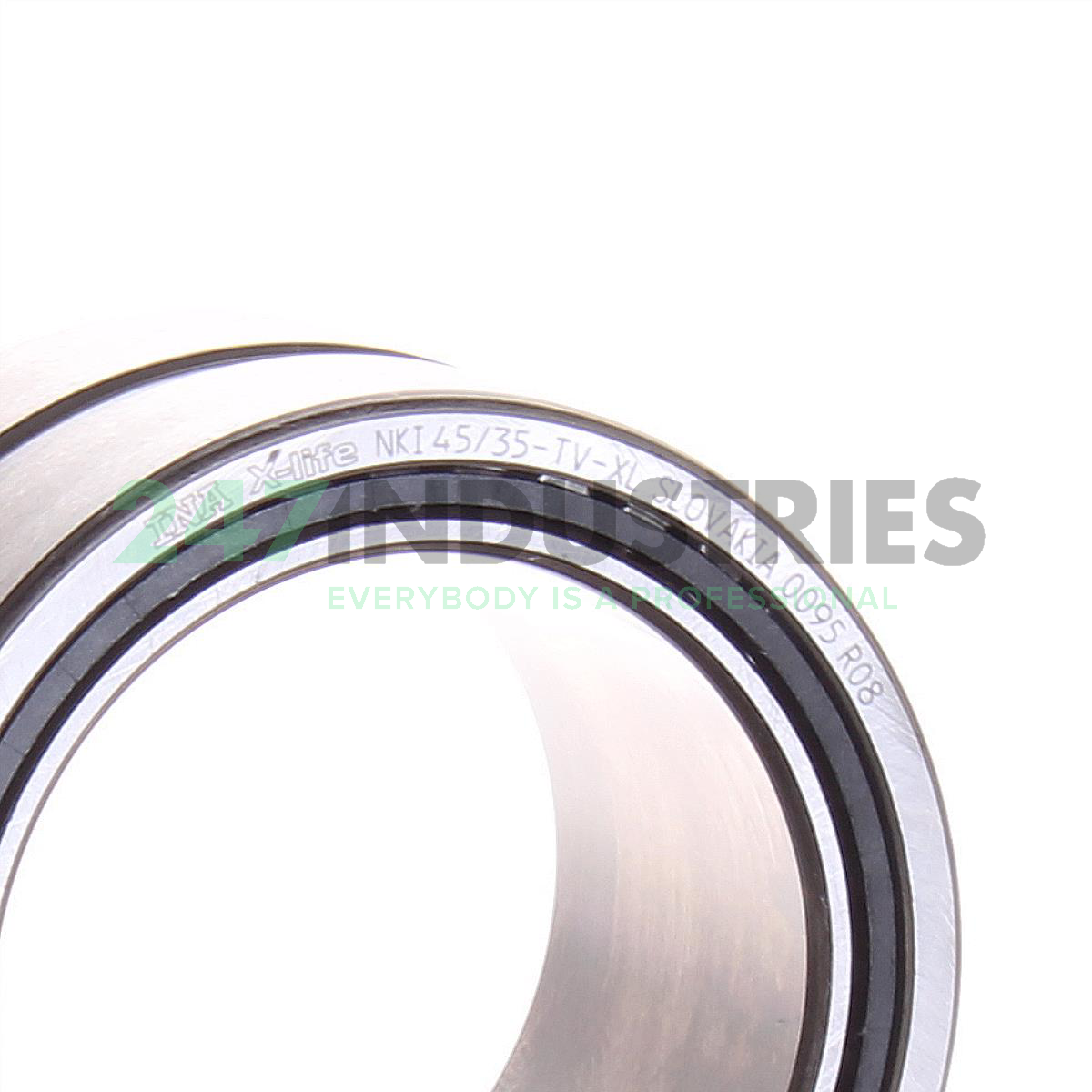

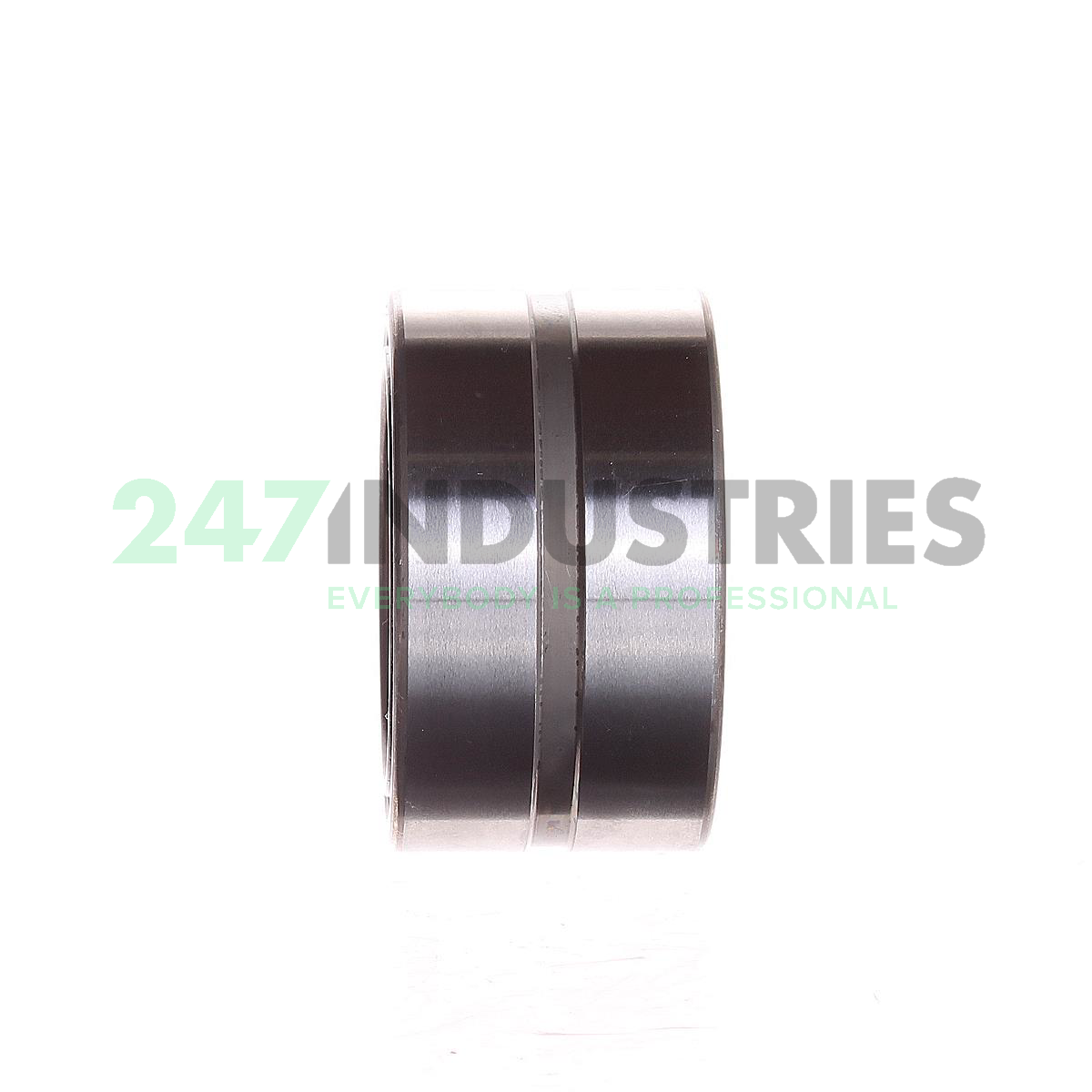

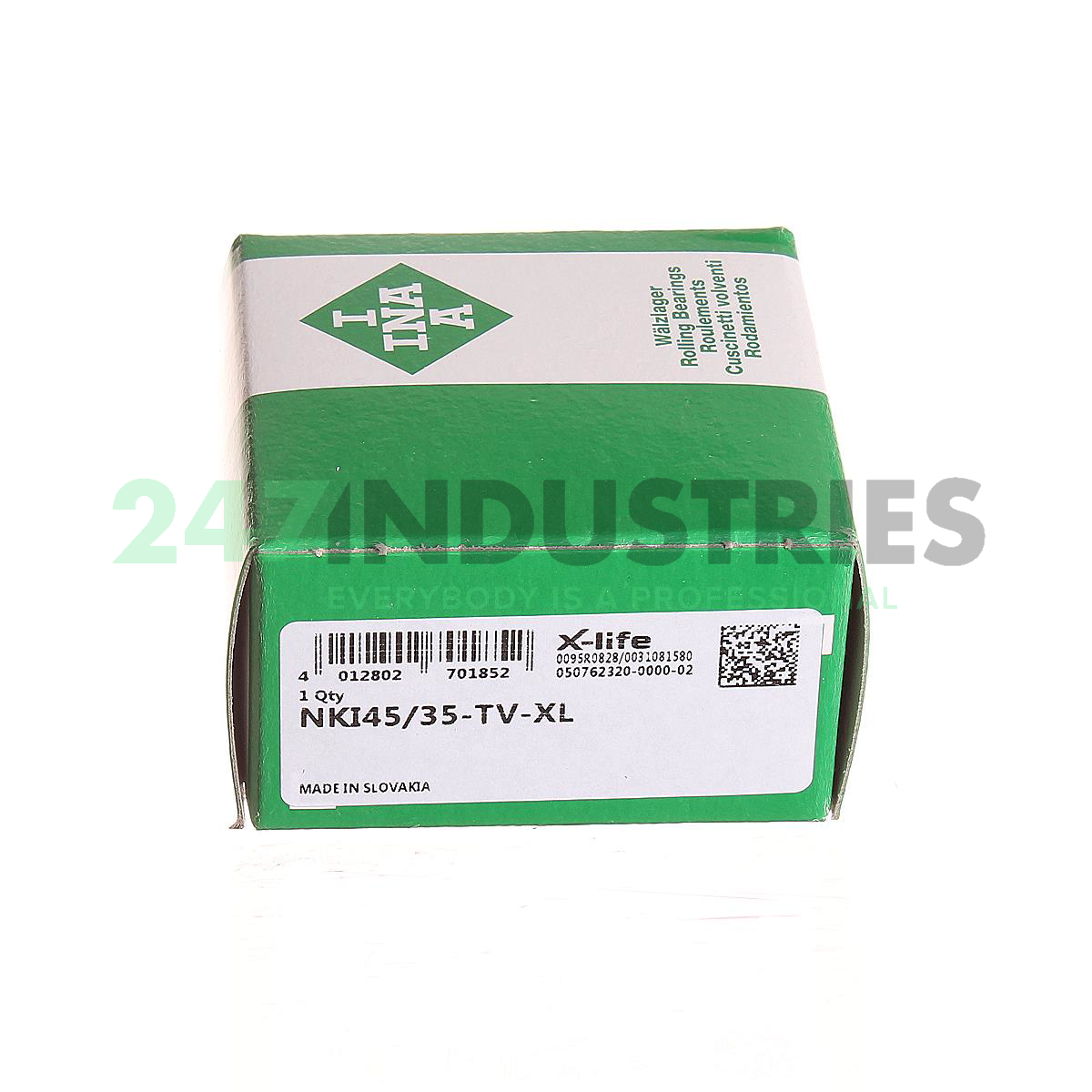

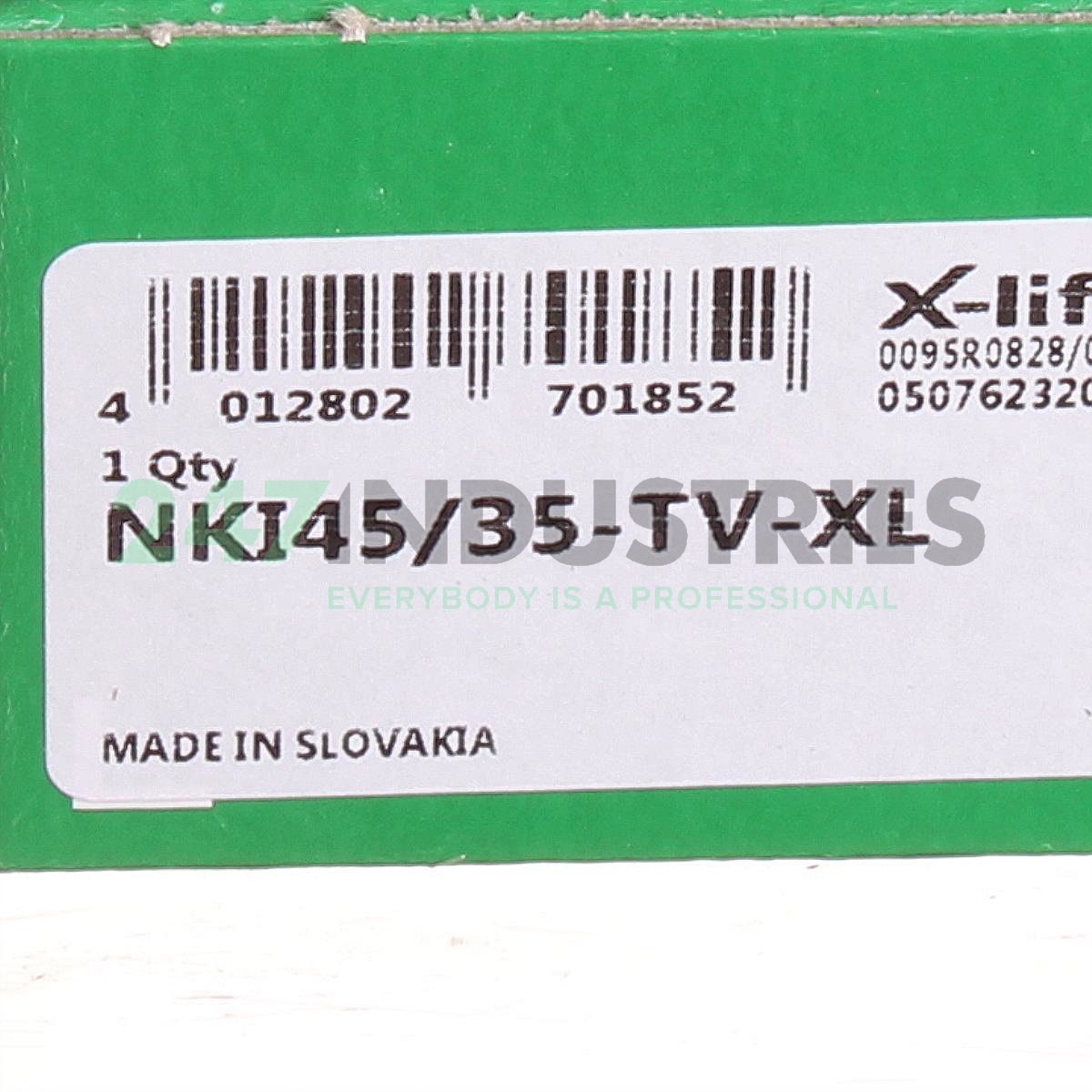

NKI45/35-TV-XL INA

Needle roller bearings NKI, light series

Stock
7 pcs in stock and ready for shipment
Brand INA
Article number NKI45/35-TV-XL INA
Inside diameter 45,00mm
Outside diameter 62,00mm
Width 35,00mm
Product description
Read more Show less
Help with this product

Downloads and links

Similar to: NKI45/35-TV-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45,00
  2. Outer (D) MM 62,00
  3. Width (B) MM 35,00
  4. Inner (d) Inch 1.7717
  5. Outer (D) Inch 2.4409
  6. Width (B) Inch 1.3780
  7. Width (b) mm 35,00

Suffix description

  1. TV Polyamide Cage
  2. XL X-Life

Technical details

  1. Availability 7 pcs
  2. Brand INA
  3. Item number NKI45/35-TV-XL INA
  4. Also known as 0507623200000
    NKI45/35-TV
  5. EAN 4012802701852
  6. Category Needle Roller and Cage Assembly

Weight and Dimensions

  1. Weight (kg) 0.322

Product Properties

  1. Seal No Seal

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 132000
  2. Radial Dynamic Load Rating Cr (N) 67000
  3. Basic static load rating, radial (C 0r) "132000.0000"
  4. Limiting speed (n G) "9200.0000"
  5. Reference speed (n ϑr) "4950.0000"
  6. ECLASS number 23-05-09-07
  7. ECLASS2 number 23-05-09-07
  8. Medias description Needle roller bearings NKI, light series

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
