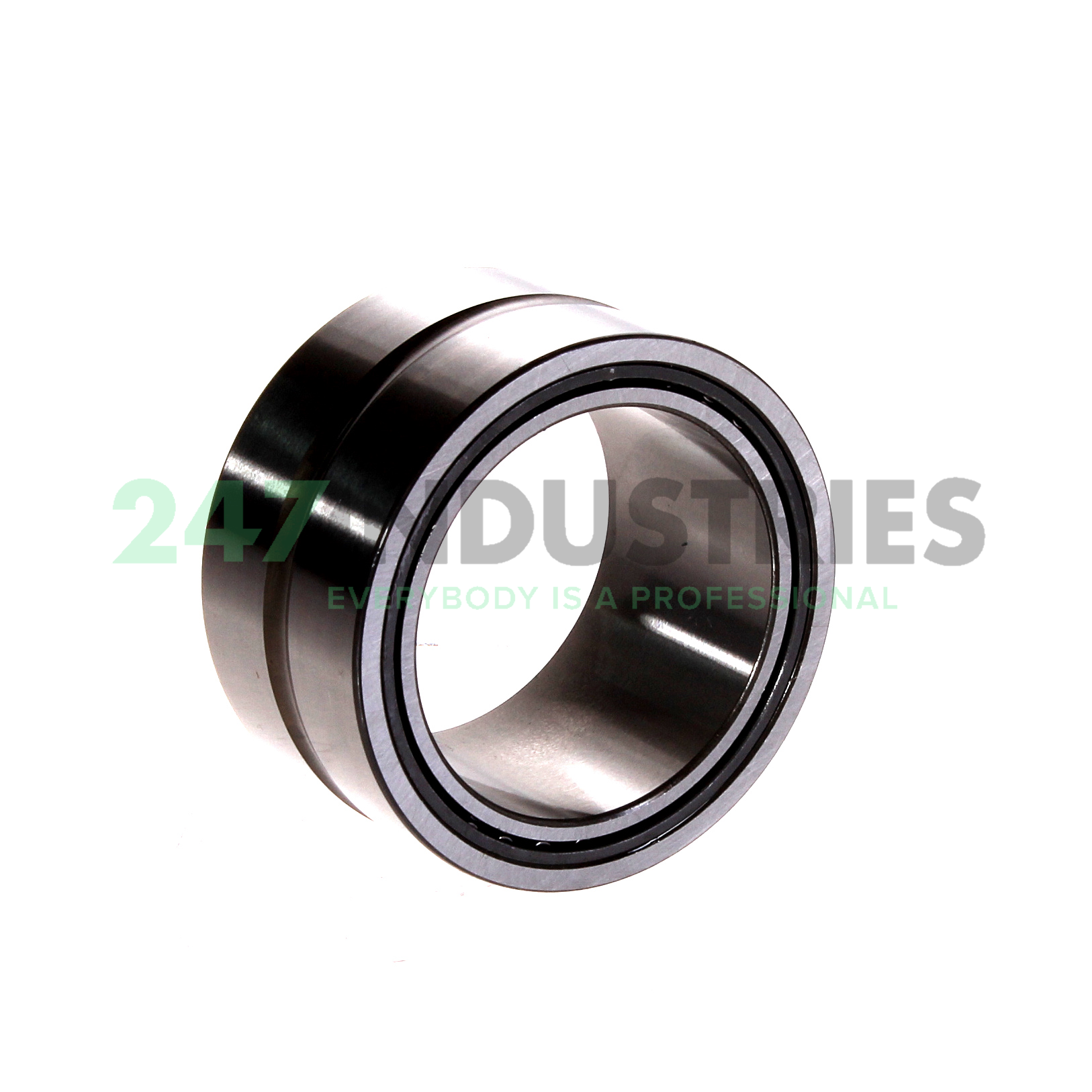

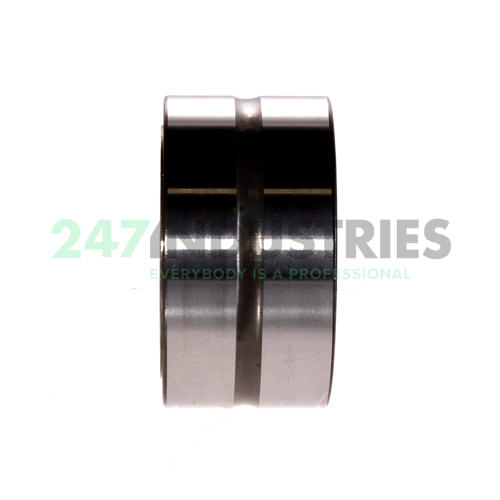

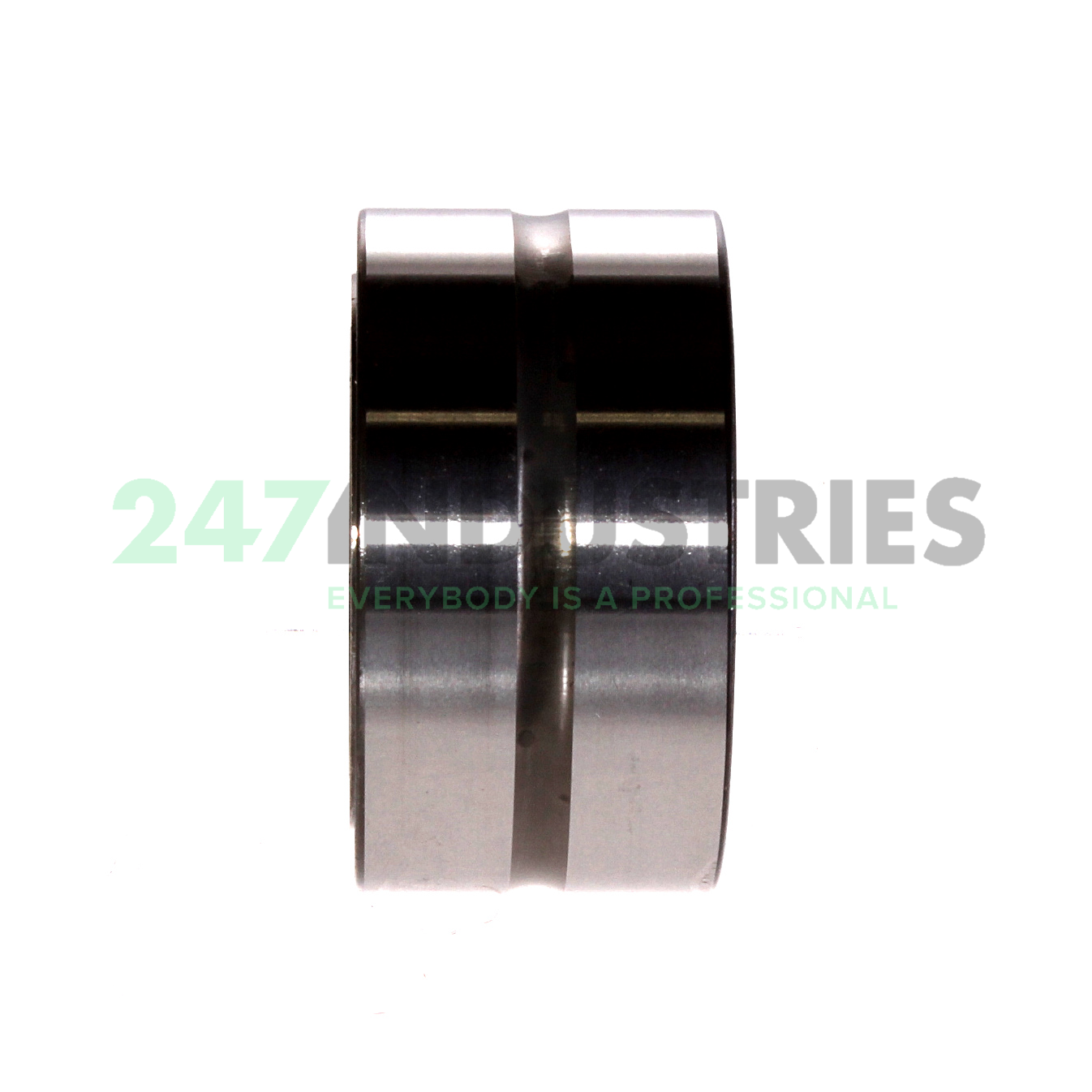

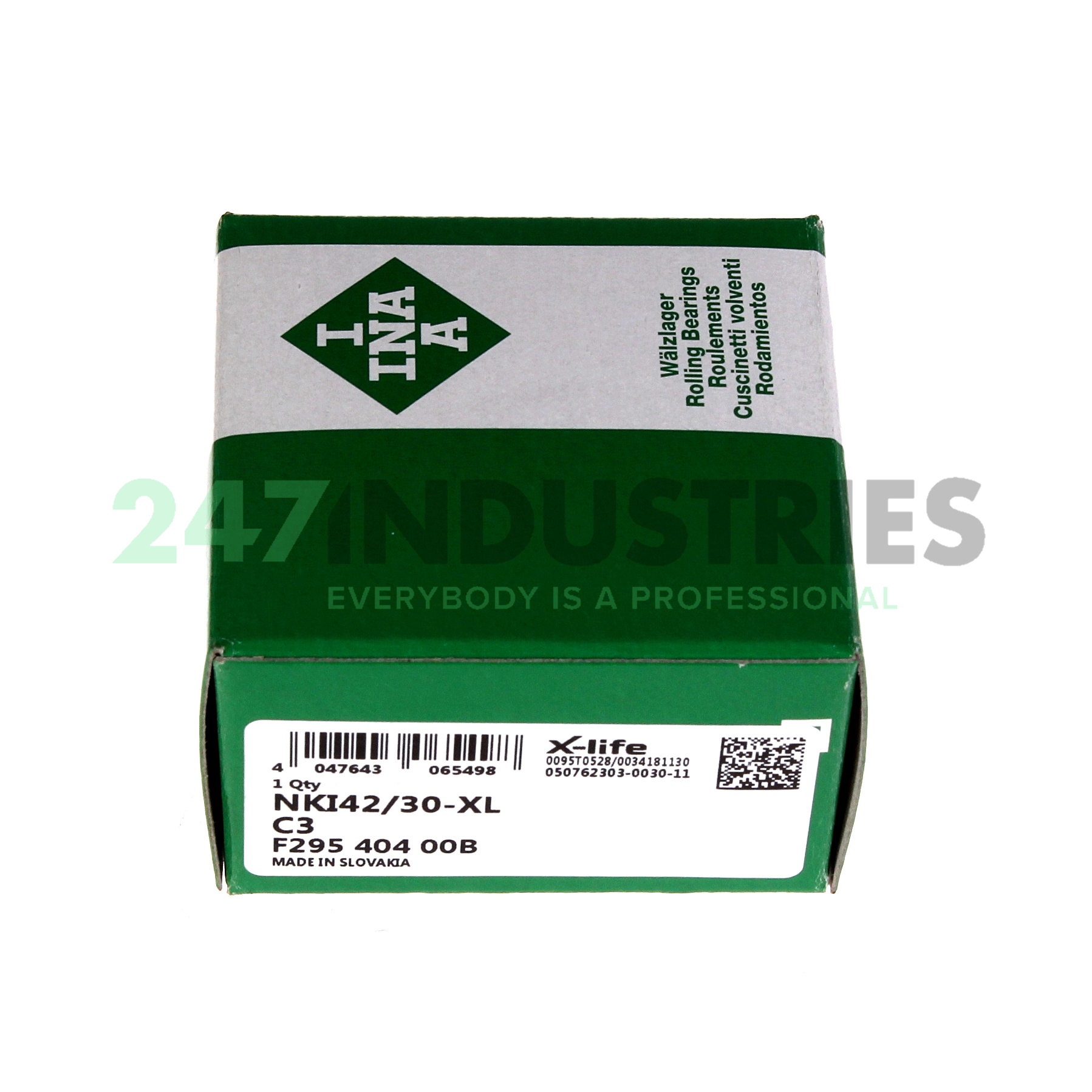

NKI42/30-XL-C3 INA

All dimensions

1. Inner (d) MM 42
2. Outer (D) MM 57
3. Width (B) MM 30
4. Inner (d) Inch 1.6535
5. Outer (D) Inch 2.2441
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number NKI42/30-XL-C3 INA
4. Also known as 0507623030030
   NKI42/30-C3
   NKJ42/30A C3

5. EAN 4047643065498
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.222

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 94000
2. Radial Dynamic Load Rating Cr (N) 48500
3. Limiting speed (n G) 9800
4. Reference speed (n ϑr) 5400
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series
