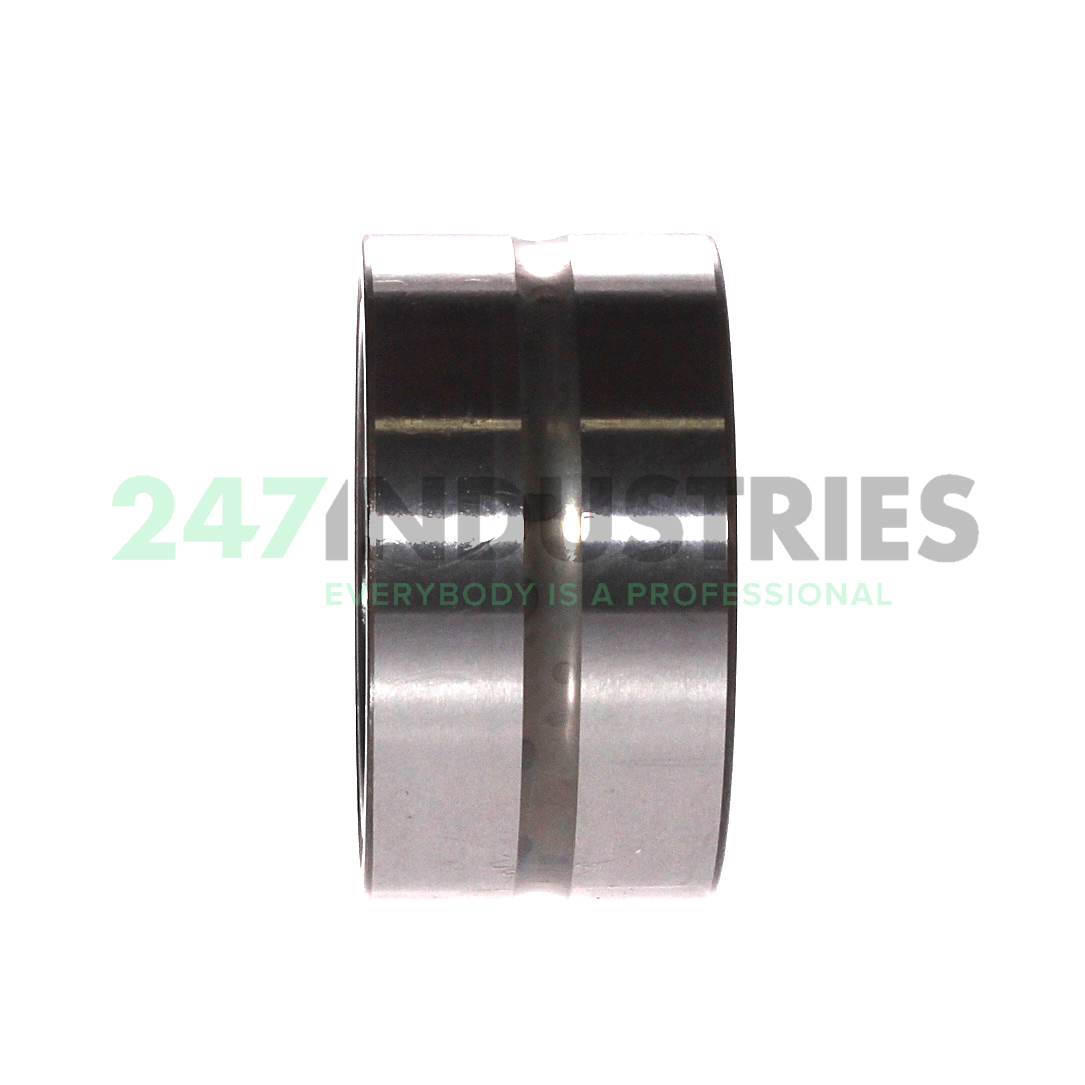

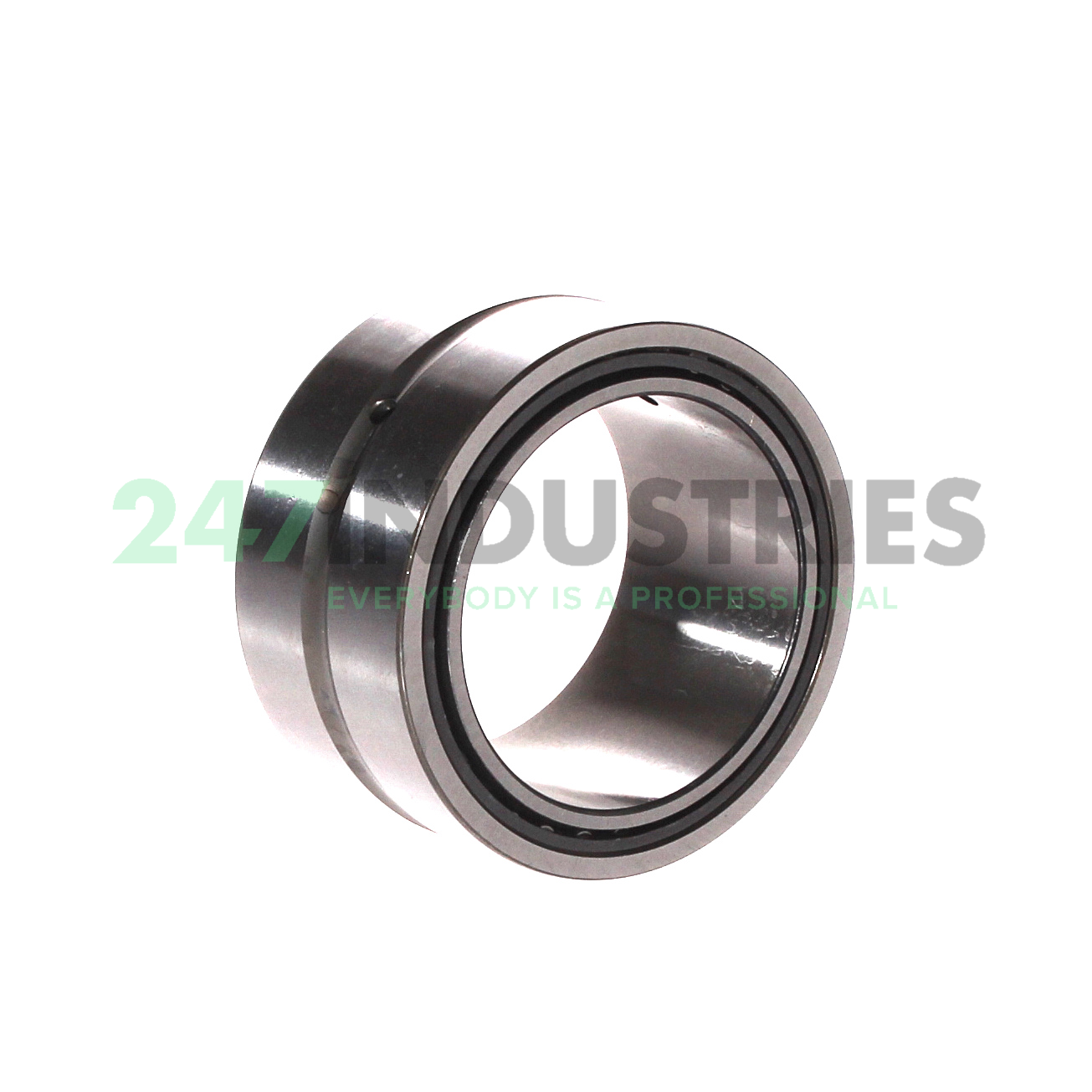

NKI42/30-IS1-XL-C3 INA

All dimensions

1. Inner (d) MM 42
2. Outer (D) MM 57
3. Width (B) MM 30
4. Inner (d) Inch 1.6535
5. Outer (D) Inch 2.2441
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. IS1 One Lubrication Hole In The Inner Ring
2. XL X-Life
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 17 pcs
2. Brand INA
3. Item number NKI42/30-IS1-XL-C3 INA
4. Also known as 0532322670030
   NKI42/30-IS1-C3
   NKJ42/30A JS1 C3

5. EAN 4054363051038
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.222

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 94000
2. Limiting speed (n G) 9800
3. Reference speed (n ϑr) 5400
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
