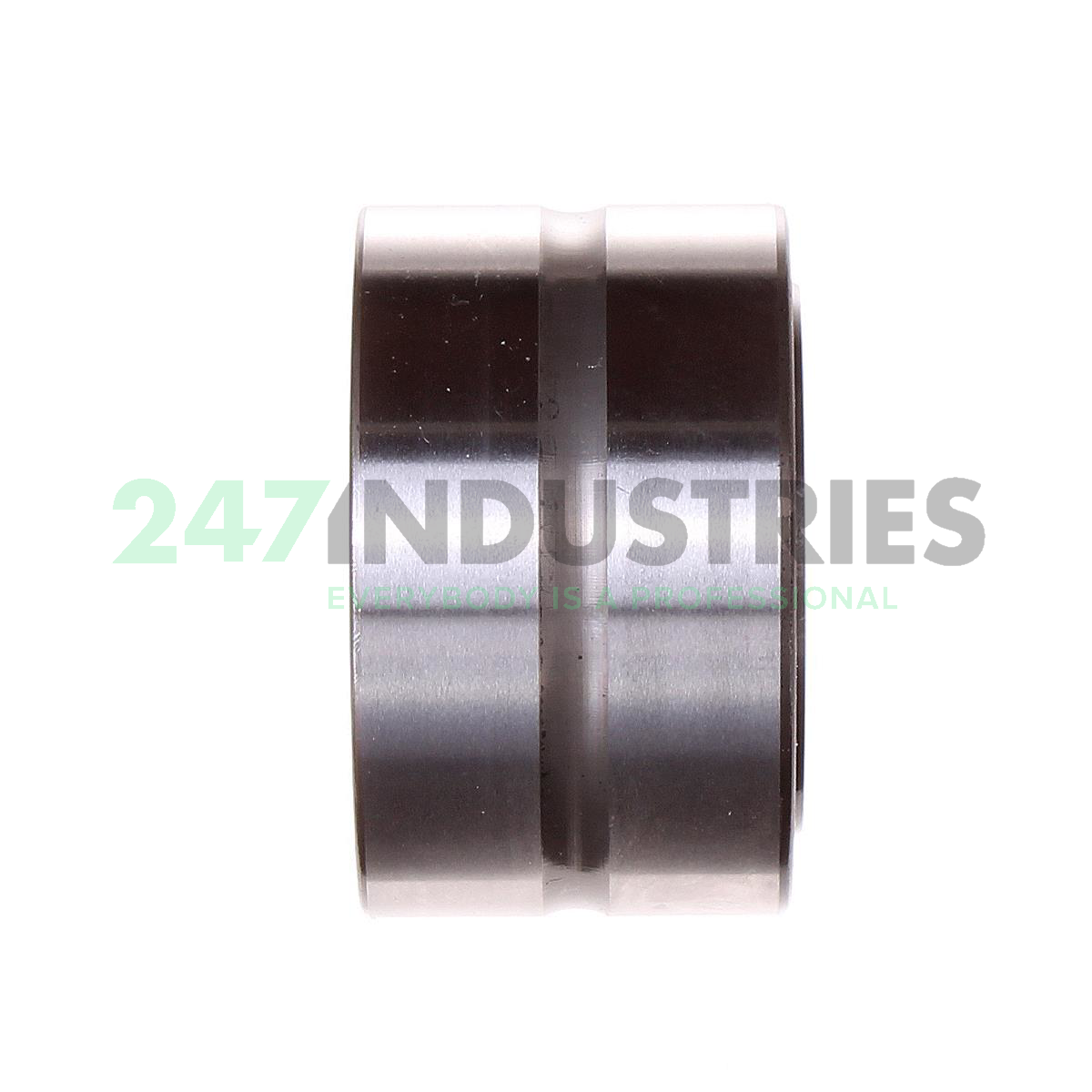

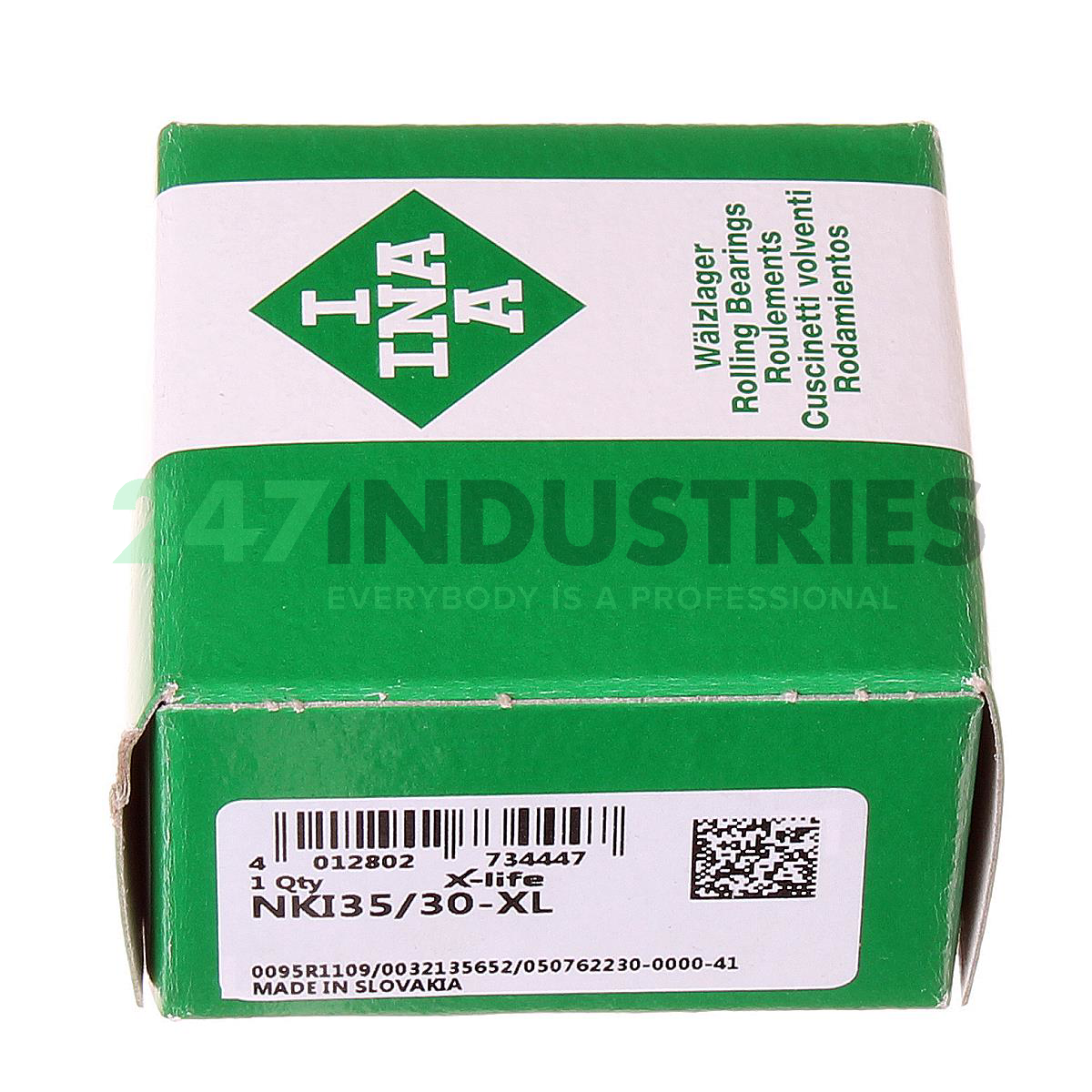

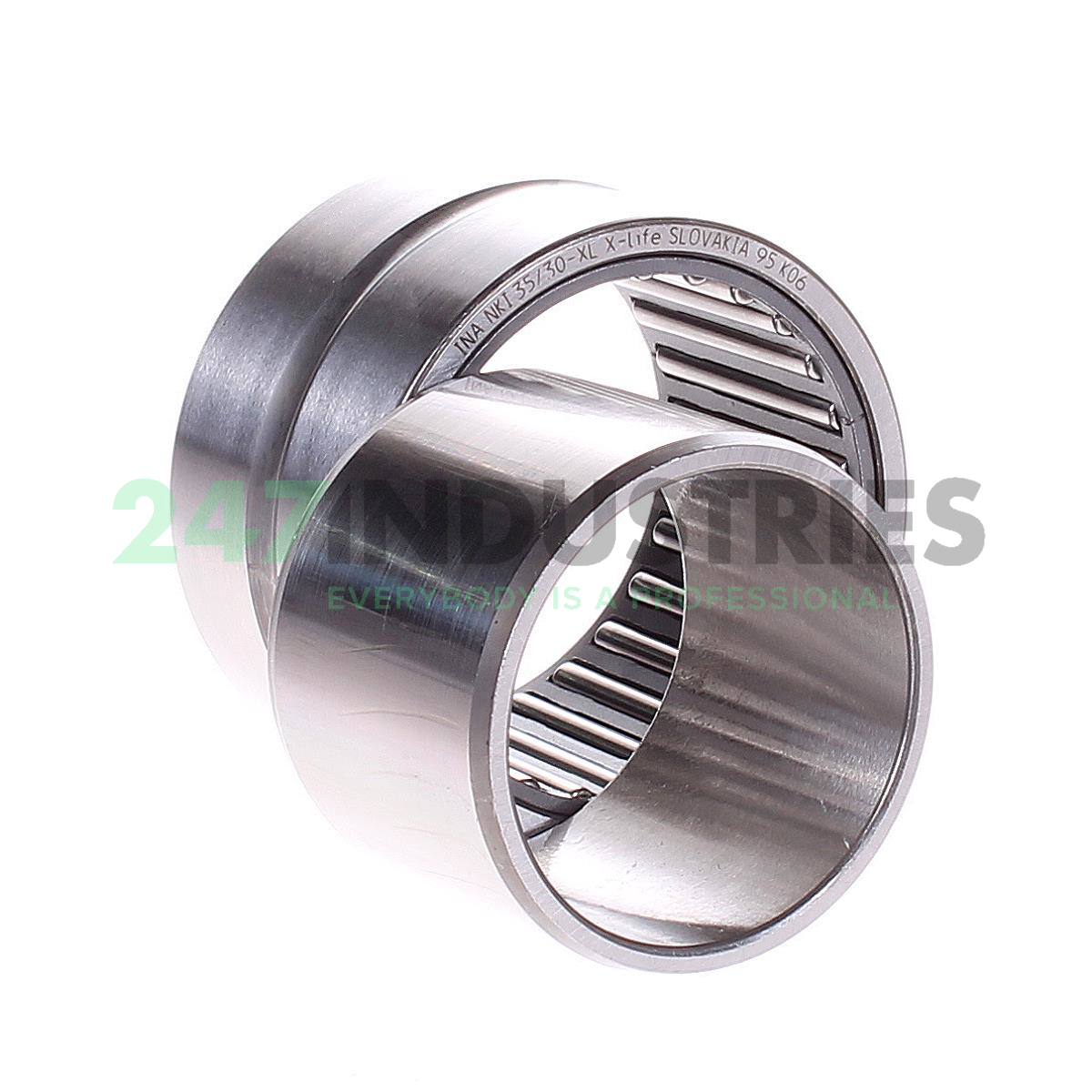

NKI35/30-XL INA

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 50,00
3. Width (B) MM 30,00
4. Inner (d) Inch 1.3780
5. Outer (D) Inch 1.9685
6. Width (B) Inch 1.1811
7. Width (b) mm 30,00

Suffix description

1. XL X-Life

Technical details

1. Availability 102 pcs
2. Brand INA
3. Item number NKI35/30-XL INA
4. Also known as 0507622300000
   NA355030
   NBI355030
   NKI35/30
   NKJ35/30A
   TAFI355030

5. EAN 4012802734447
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.193

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 79000
2. Radial Dynamic Load Rating Cr (N) 44000
3. Basic static load rating, radial (C 0r) "79000.0000"
4. Limiting speed (n G) "11400.0000"
5. Reference speed (n ϑr) "6200.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NKI, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
