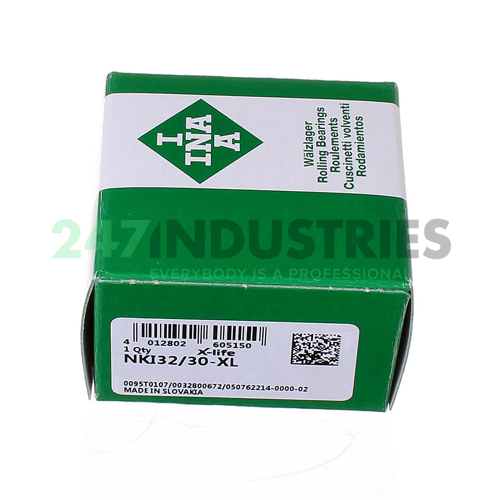

NKI32/30-XL INA

All dimensions

1. Inner (d) MM 32
2. Outer (D) MM 47
3. Width (B) MM 30
4. Inner (d) Inch 1.2598
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 37 pcs
2. Brand INA
3. Item number NKI32/30-XL INA
4. Also known as 0507622140000
   NA324730
   NKI32/30
   NKJ32/30A
   TAFI324730

5. EAN 4012802605150
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 73000
2. Radial Dynamic Load Rating Cr (N) 42000
3. Limiting speed (n G) 12300
4. Reference speed (n ϑr) 6600
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
