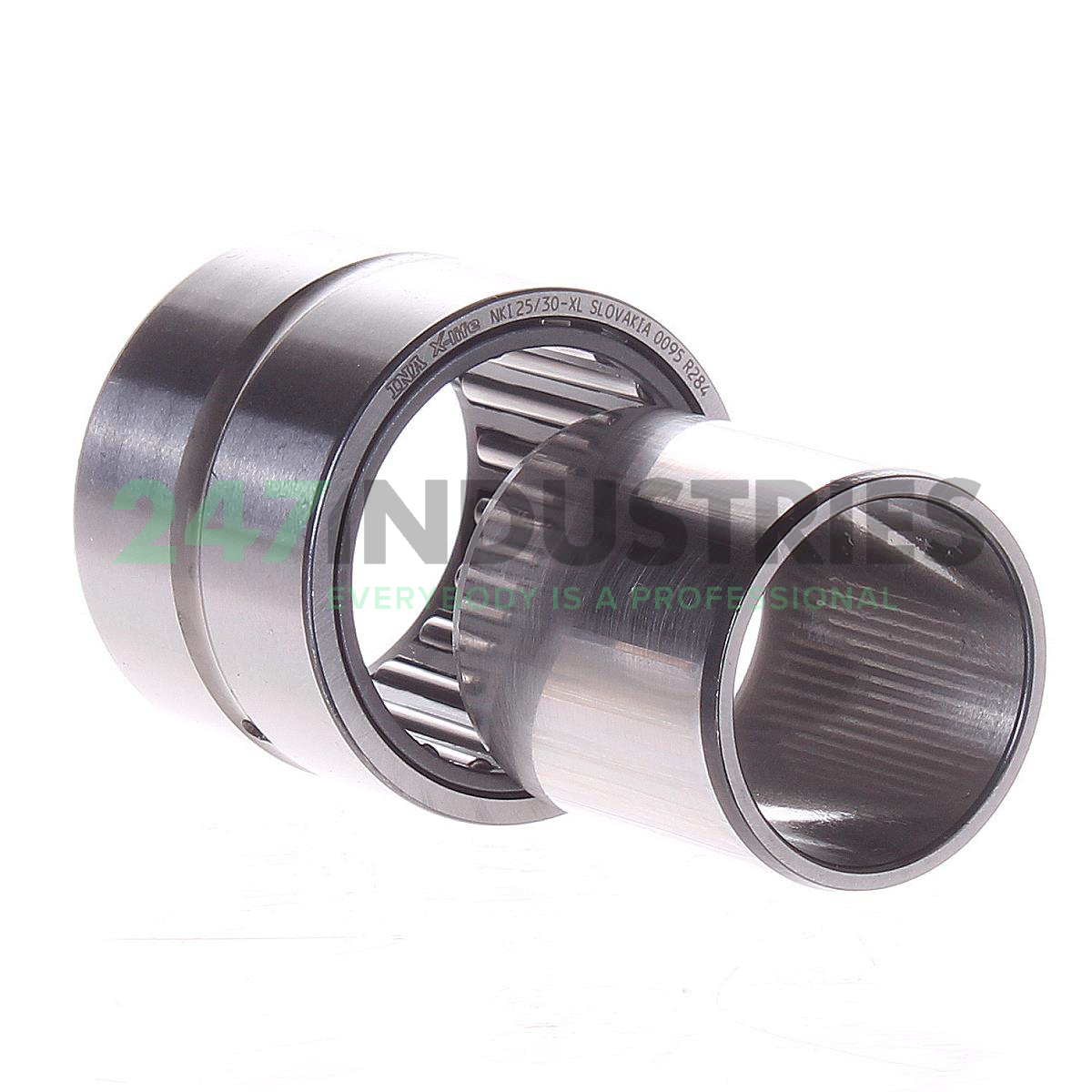

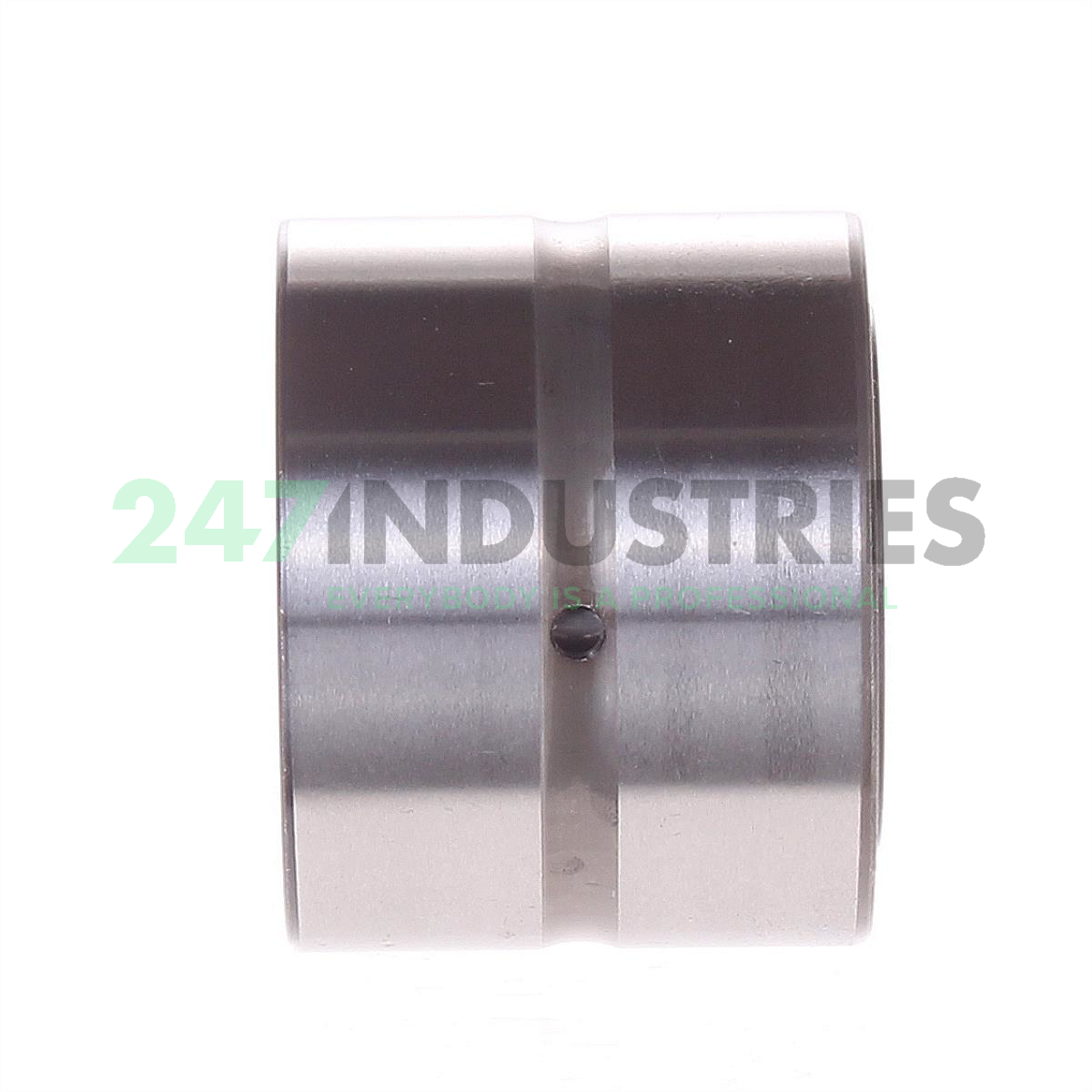

NKI25/30-XL INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 38
3. Width (B) MM 30
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.4961
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 185 pcs
2. Brand INA
3. Item number NKI25/30-XL INA
4. Also known as 0507621500000
   NA253830
   NBI253830
   NKI25/30
   NKJ25/30A
   TAFI253830

5. EAN 4012802405699
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.12

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 57000
2. Radial Dynamic Load Rating Cr (N) 37000
3. Limiting speed (n G) 15300
4. Reference speed (n ϑr) 8200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series
