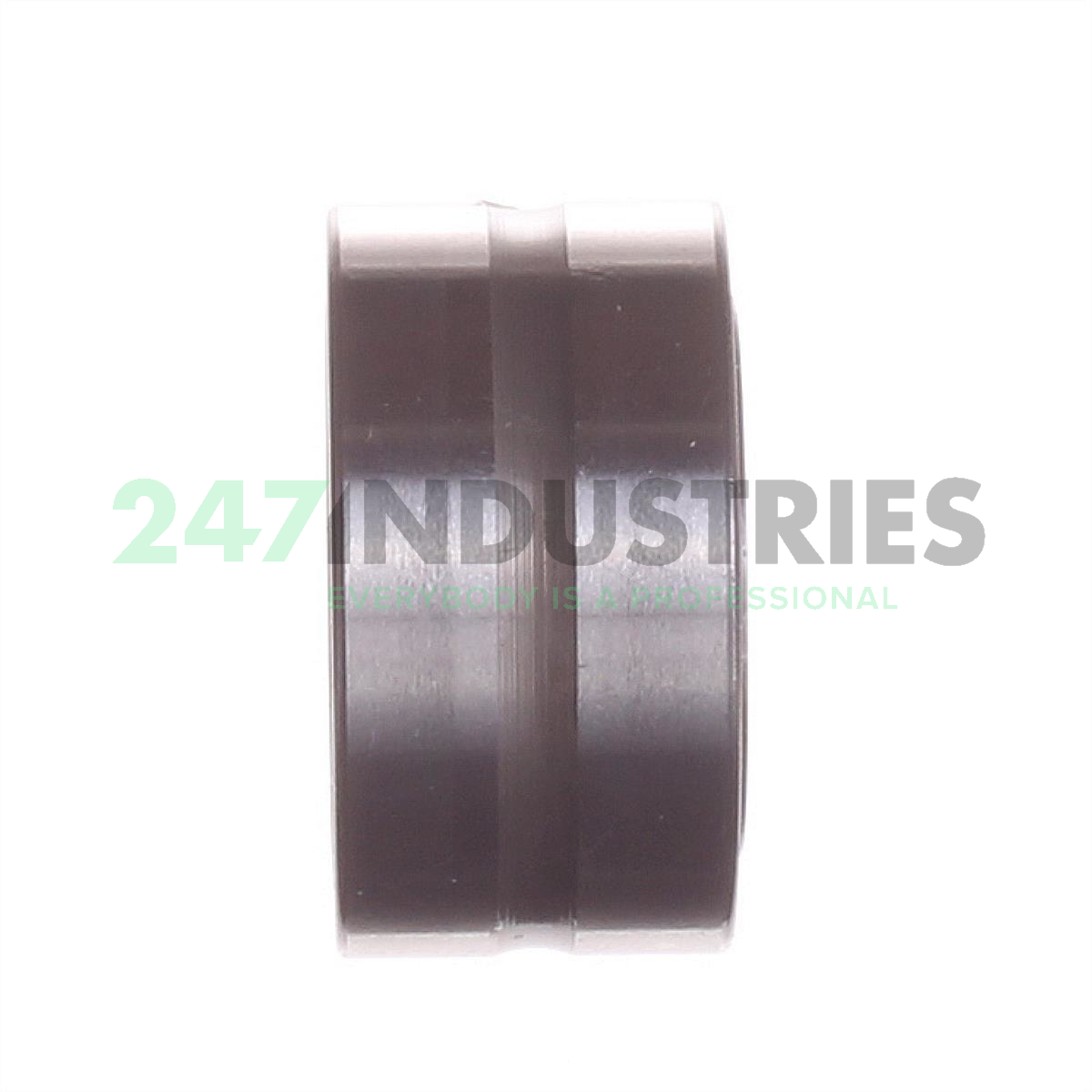

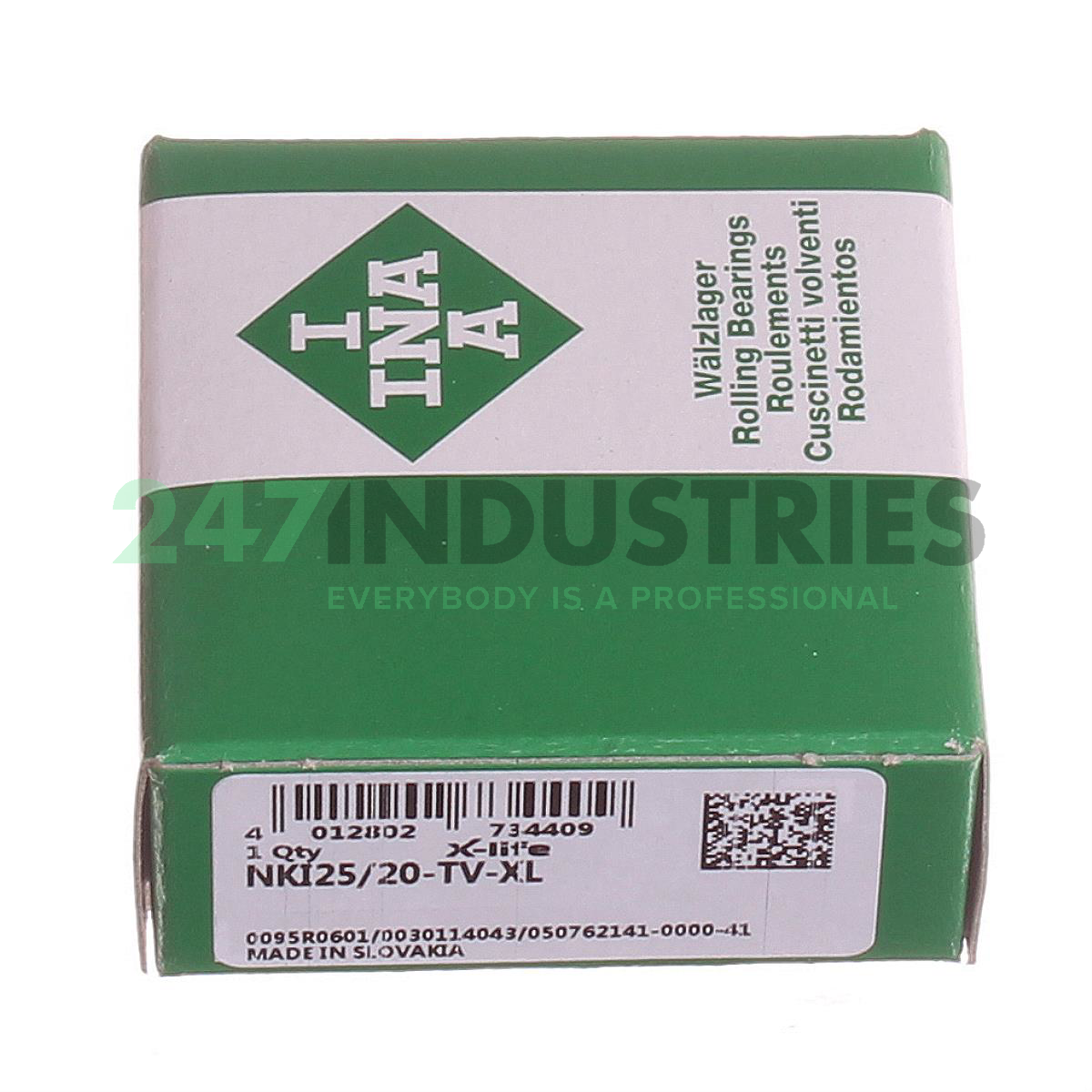

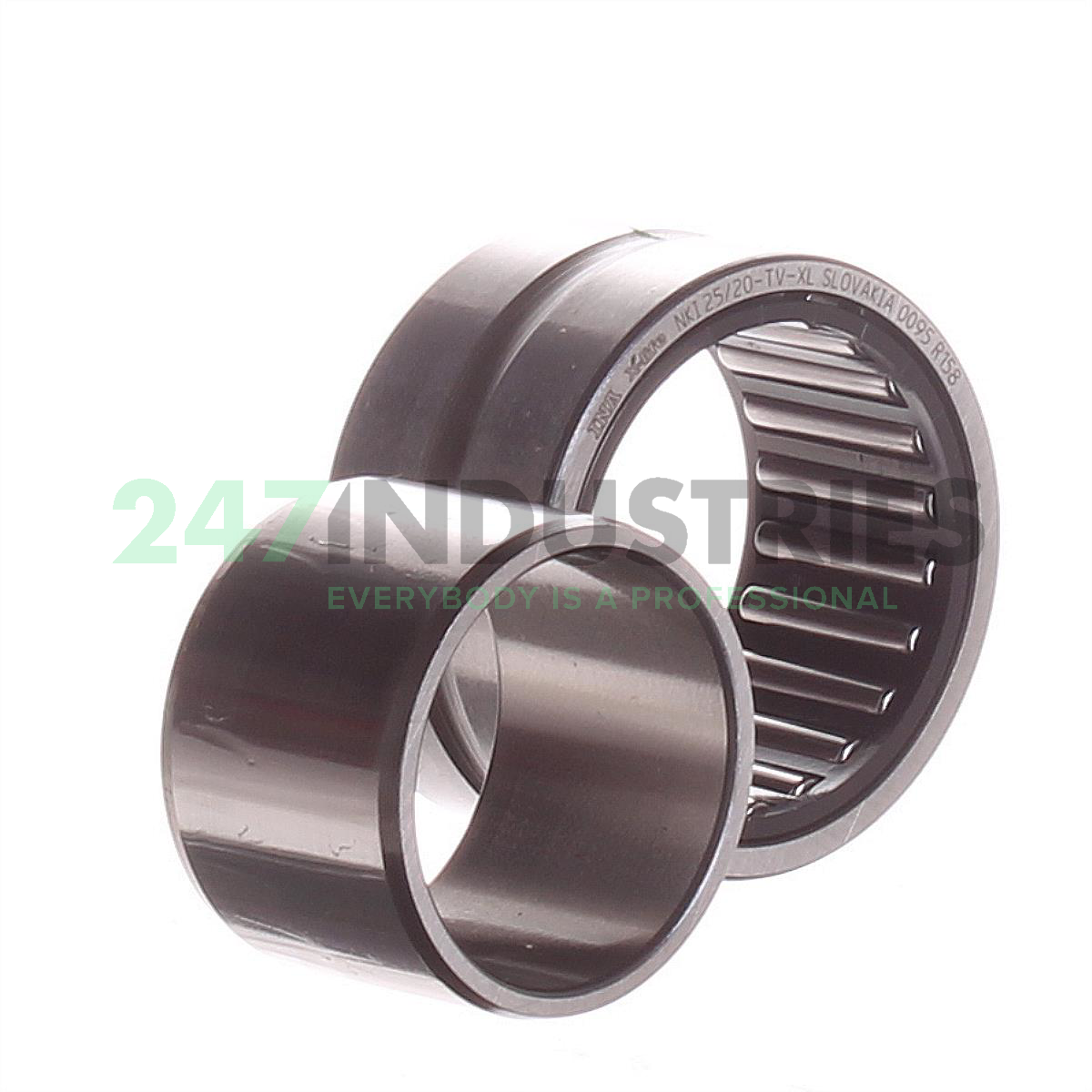

NKI25/20-TV-XL INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 38
3. Width (B) MM 20
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.4961
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. TV Polyamide Cage
2. XL X-Life

Technical details

1. Availability 79 pcs
2. Brand INA
3. Item number NKI25/20-TV-XL INA
4. Also known as 0507621410000
   NKI25/20-TV

5. EAN 4012802734409
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.079

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 39000
2. Radial Dynamic Load Rating Cr (N) 27500
3. Limiting speed (n G) 15300
4. Reference speed (n ϑr) 8100
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
