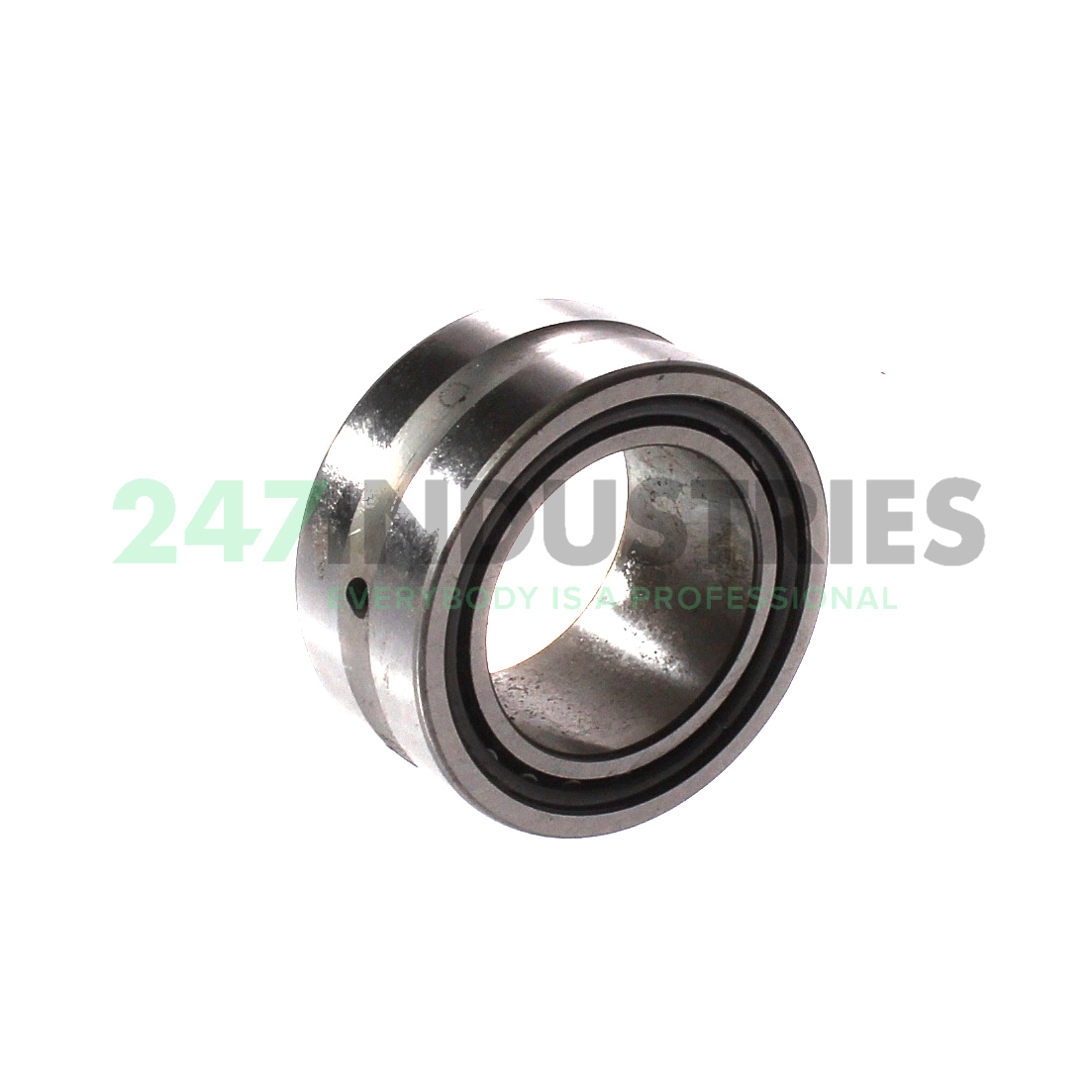

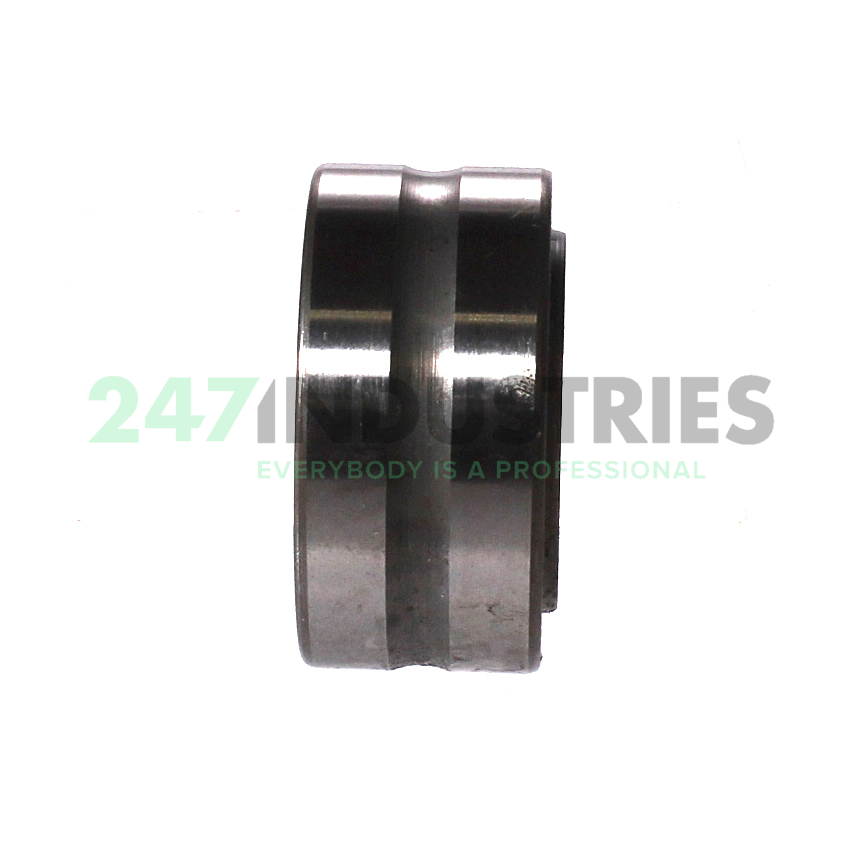

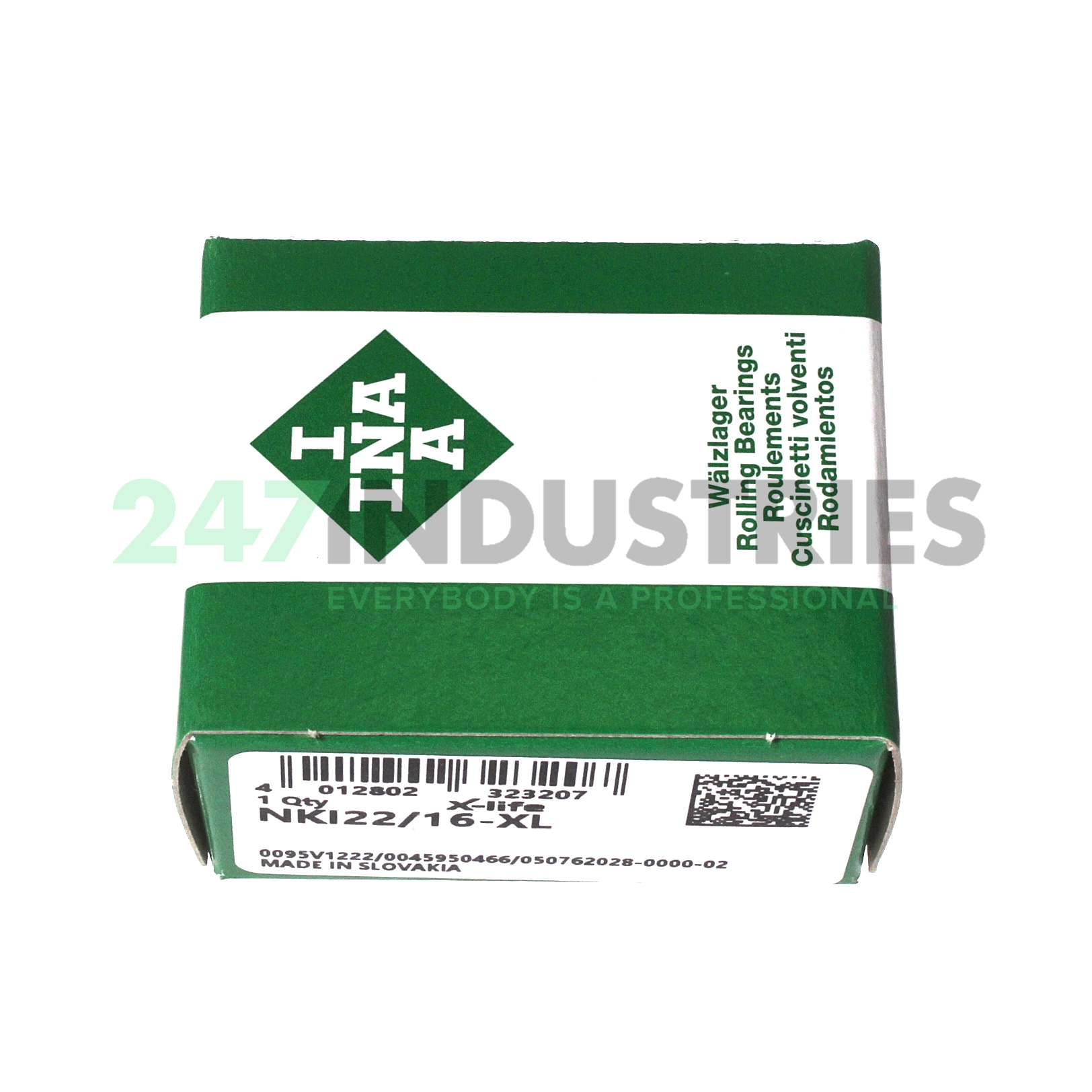

NKI22/16-XL INA

All dimensions

1. Inner (d) MM 22
2. Outer (D) MM 34
3. Width (B) MM 16
4. Inner (d) Inch 0.8661
5. Outer (D) Inch 1.3386
6. Width (B) Inch 0.6299
7. Width (b) mm 16

Suffix description

1. XL X-Life

Technical details

1. Availability 41 pcs
2. Brand INA
3. Item number NKI22/16-XL INA
4. Also known as 0507620280000
   NA223416
   NKI22/16
   NKJ22/16A
   TAFI223416

5. EAN 4012802323207
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.052

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23600
2. Radial Dynamic Load Rating Cr (N) 17300
3. Limiting speed (n G) 17200
4. Reference speed (n ϑr) 9500
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series
