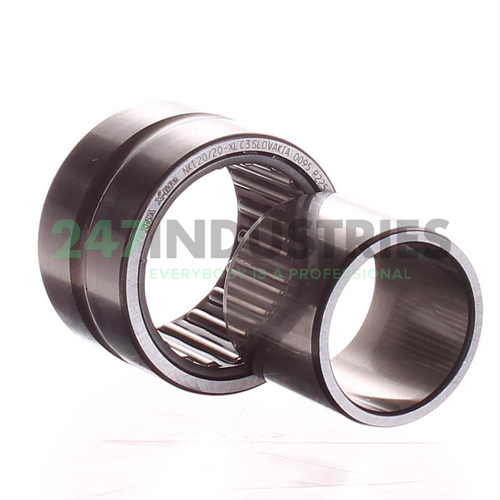

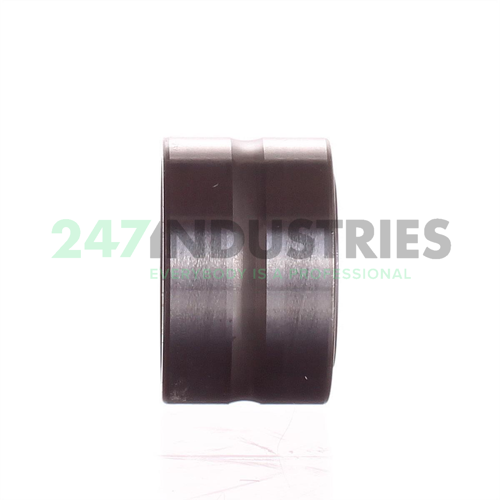

NKI20/20-XL INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 32
3. Width (B) MM 20
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. XL X-Life

Technical details

1. Availability 105 pcs
2. Brand INA
3. Item number NKI20/20-XL INA
4. Also known as 0507620100000
   NA203220
   NBI203220
   NKI20/20
   NKJ20/20A
   TAFI203220

5. EAN 4012802734362
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.066

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 30500
2. Radial Dynamic Load Rating Cr (N) 21400
3. Limiting speed (n G) 18500
4. Reference speed (n ϑr) 9900
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series
