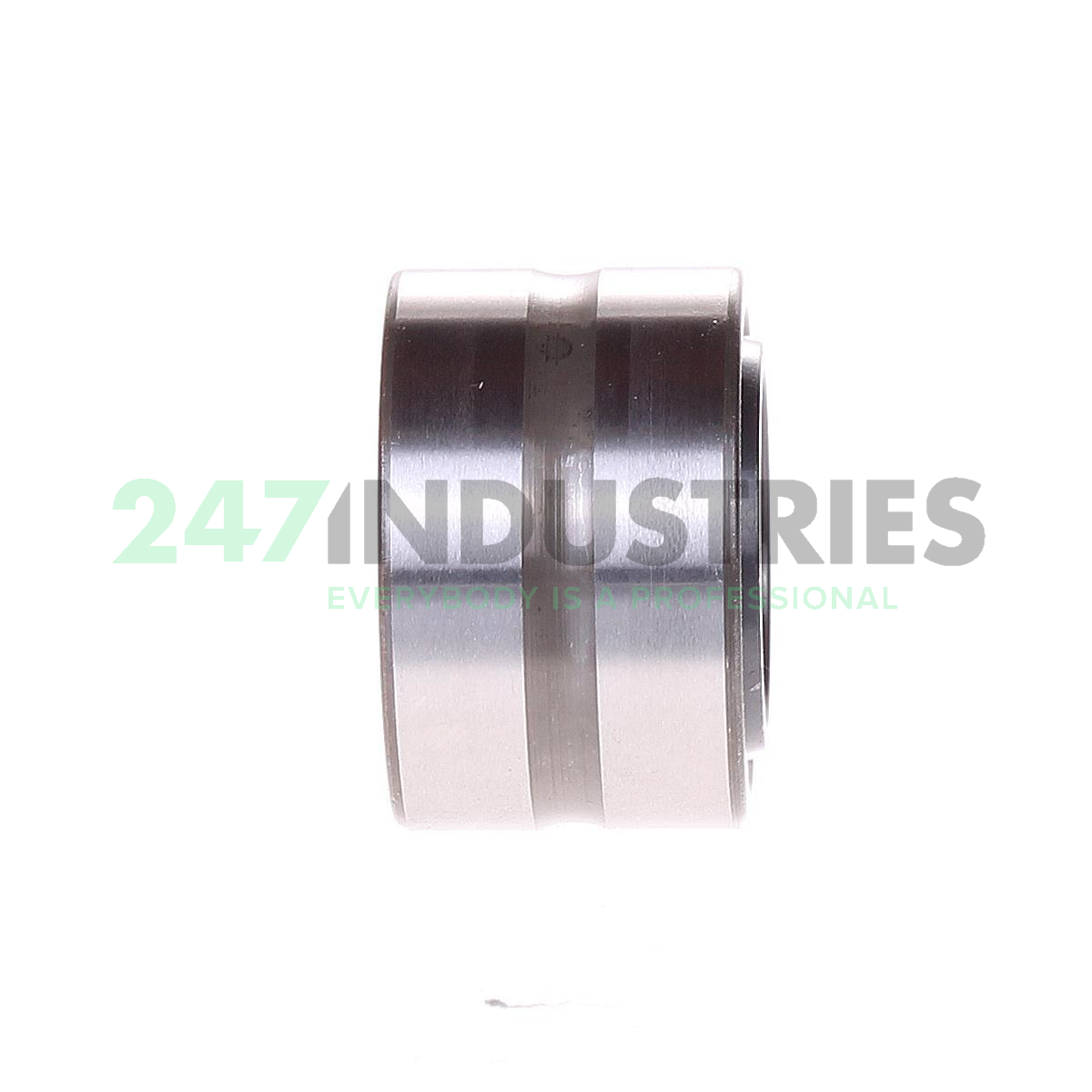

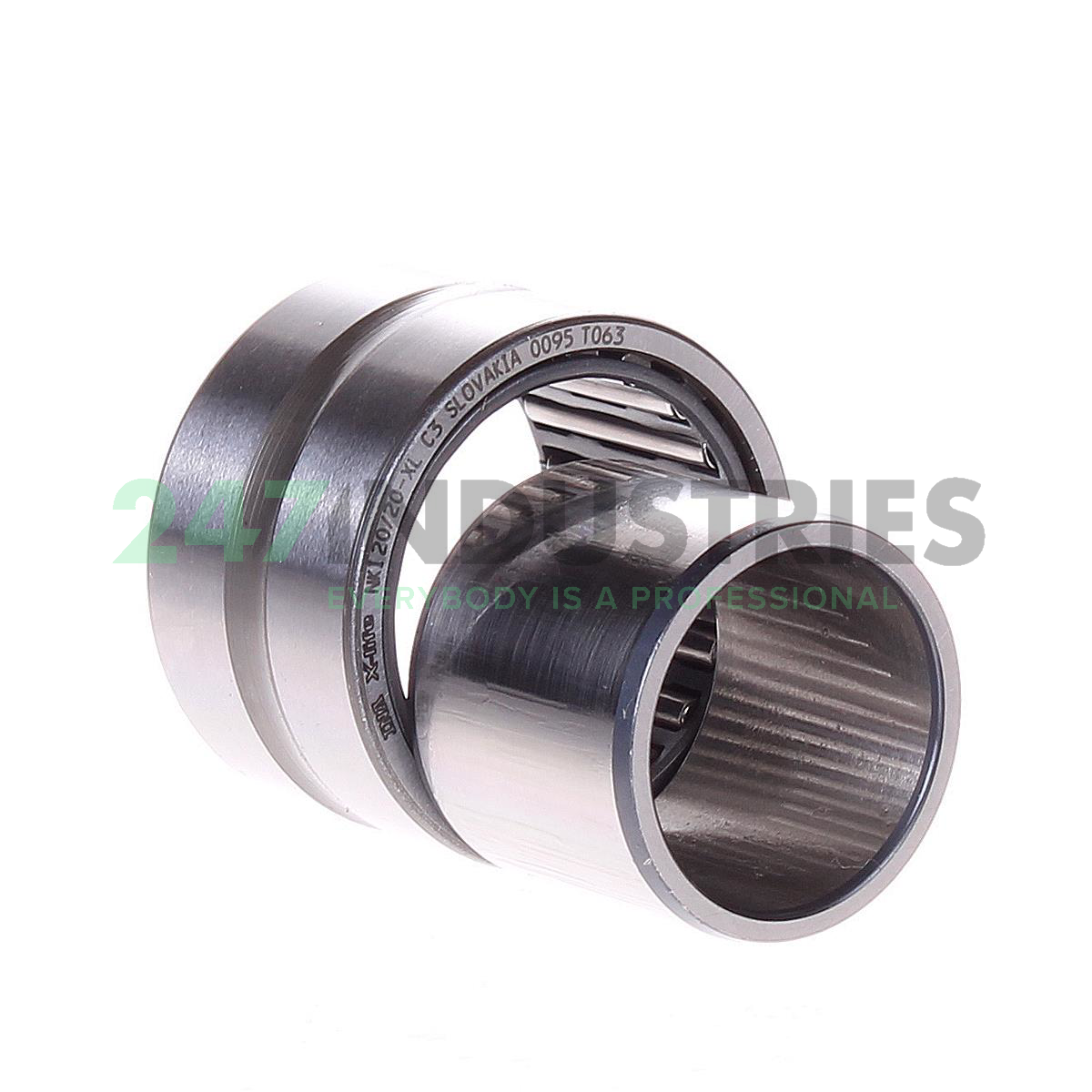

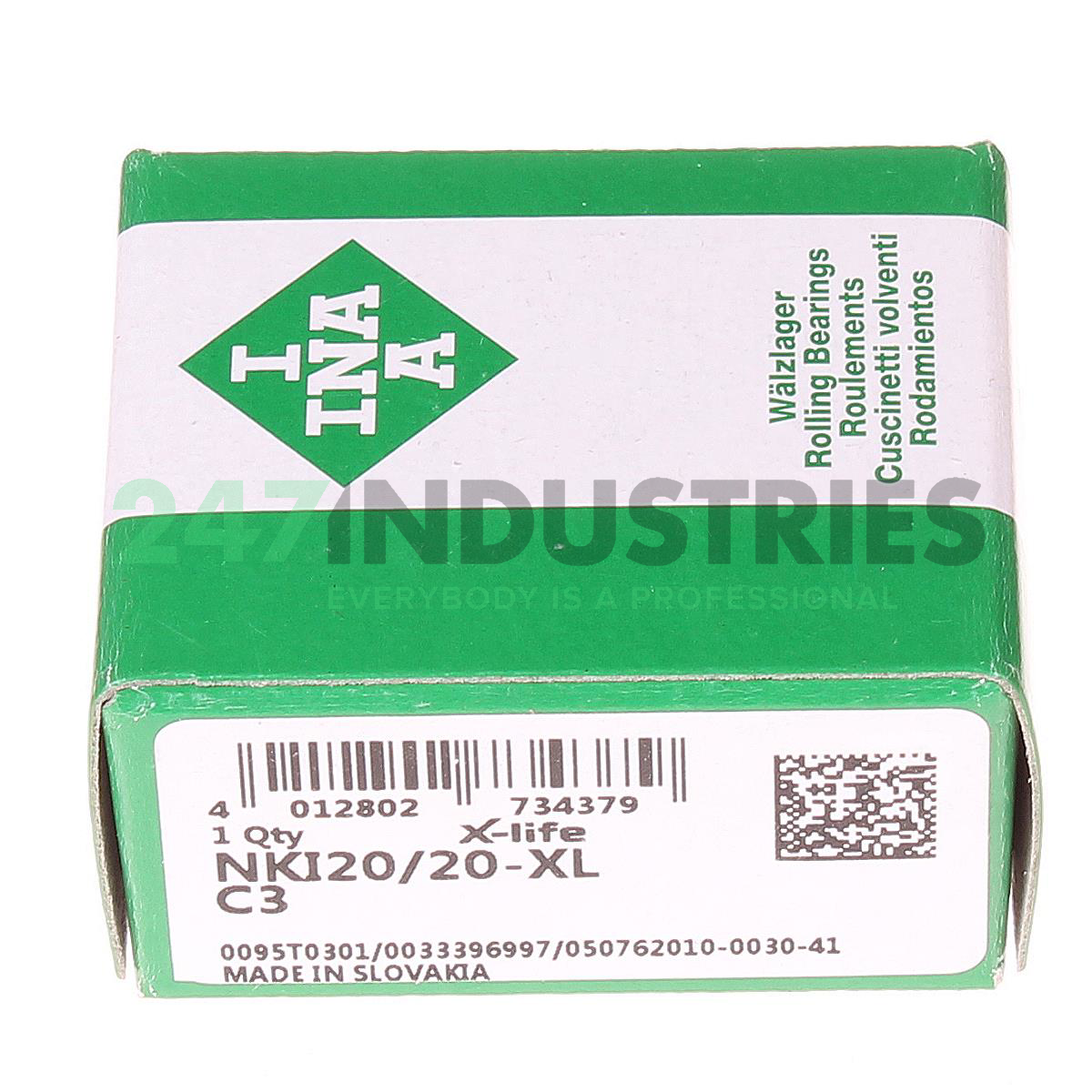

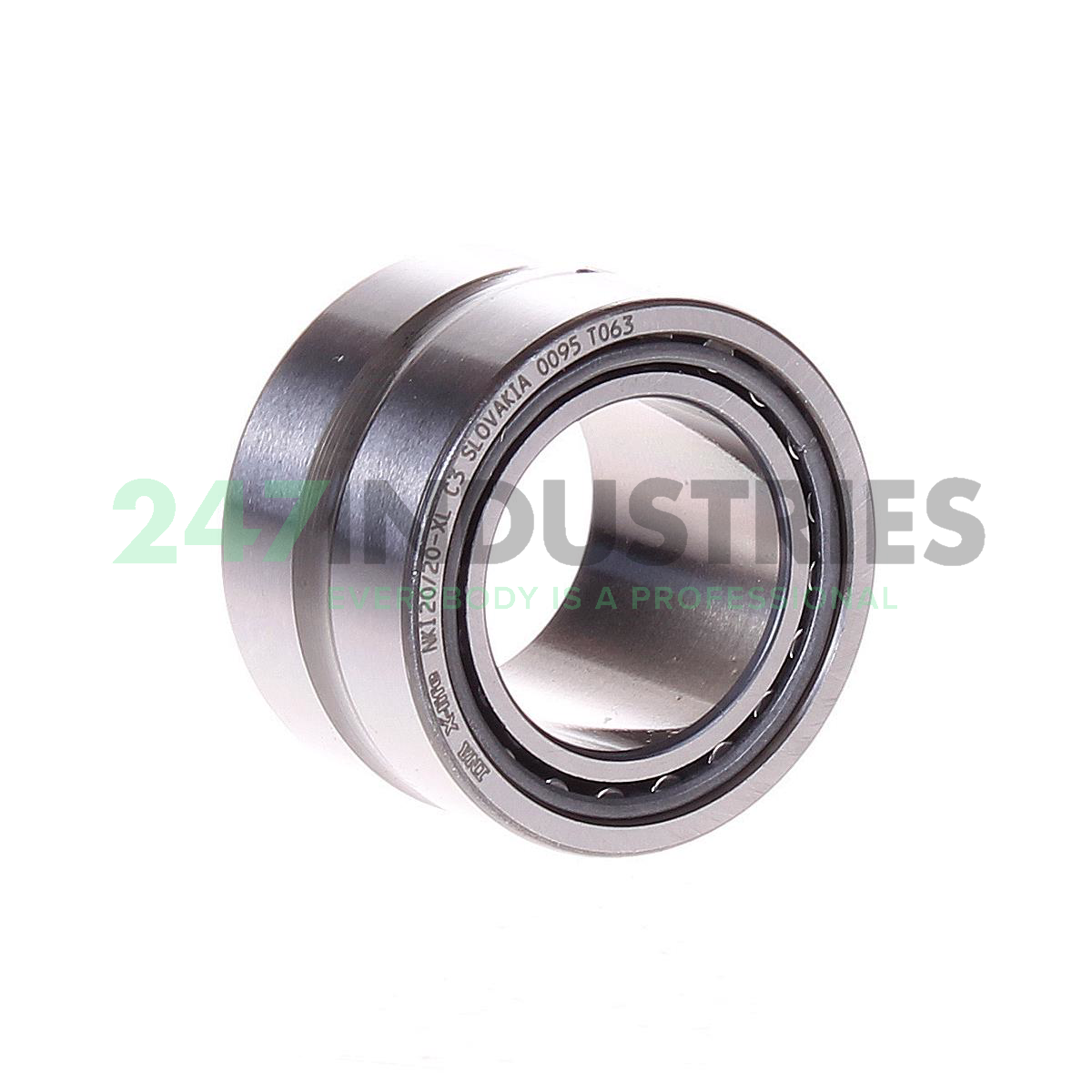

NKI20/20-XL-C3 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 32
3. Width (B) MM 20
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 43 pcs
2. Brand INA
3. Item number NKI20/20-XL-C3 INA
4. Also known as 0507620100030
   NA203220C3
   NBI203220C3
   NKI20/20-C3
   NKJ20/20A.C3
   TAFI203220C3

5. EAN 4012802734379
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.066

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 30500
2. Limiting speed (n G) 18500
3. Reference speed (n ϑr) 9900
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
