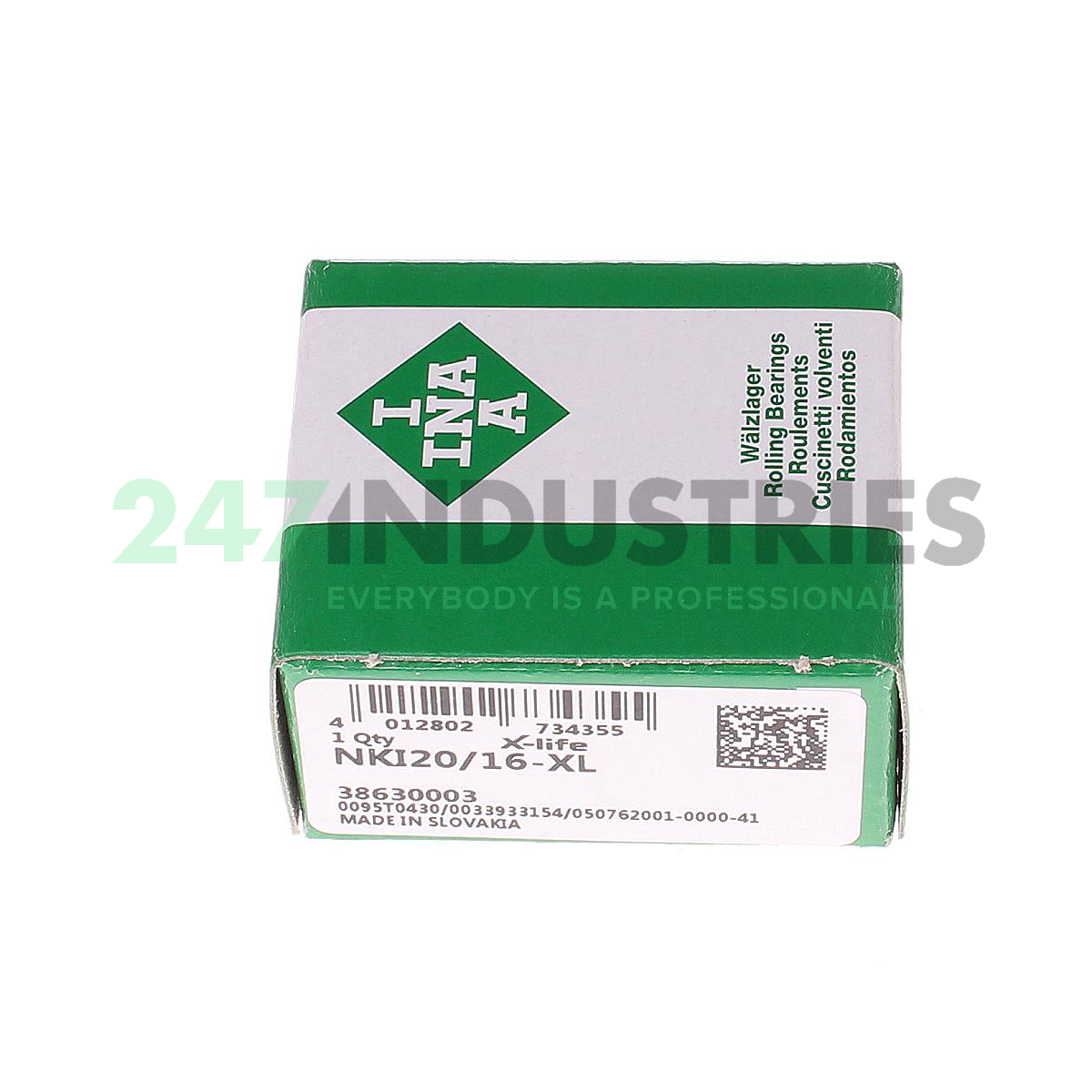

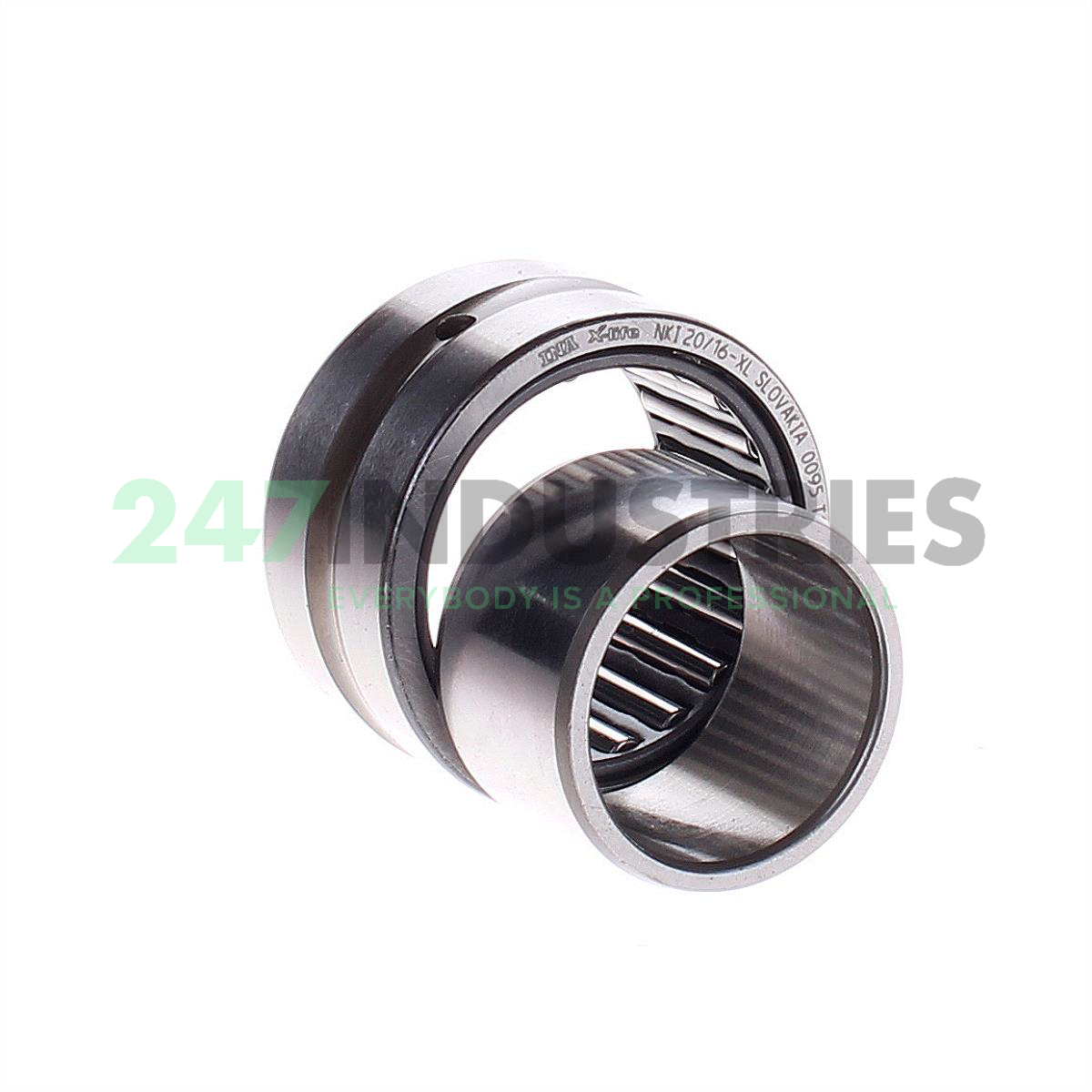

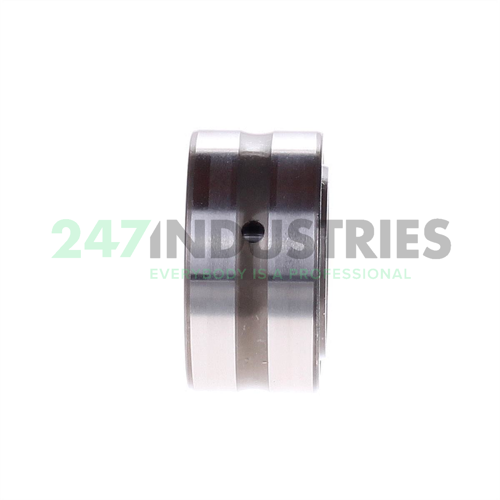

NKI20/16-XL INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 32
3. Width (B) MM 16
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.6299
7. Width (b) mm 16

Suffix description

1. XL X-Life

Technical details

1. Availability 397 pcs
2. Brand INA
3. Item number NKI20/16-XL INA
4. Also known as 0507620010000
   NA203216
   NBI203216
   NKI20/16
   NKJ20/16A
   TAFI203216

5. EAN 4012802734355
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.049

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 22300
2. Radial Dynamic Load Rating Cr (N) 16900
3. Limiting speed (n G) 18500
4. Reference speed (n ϑr) 10100
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
