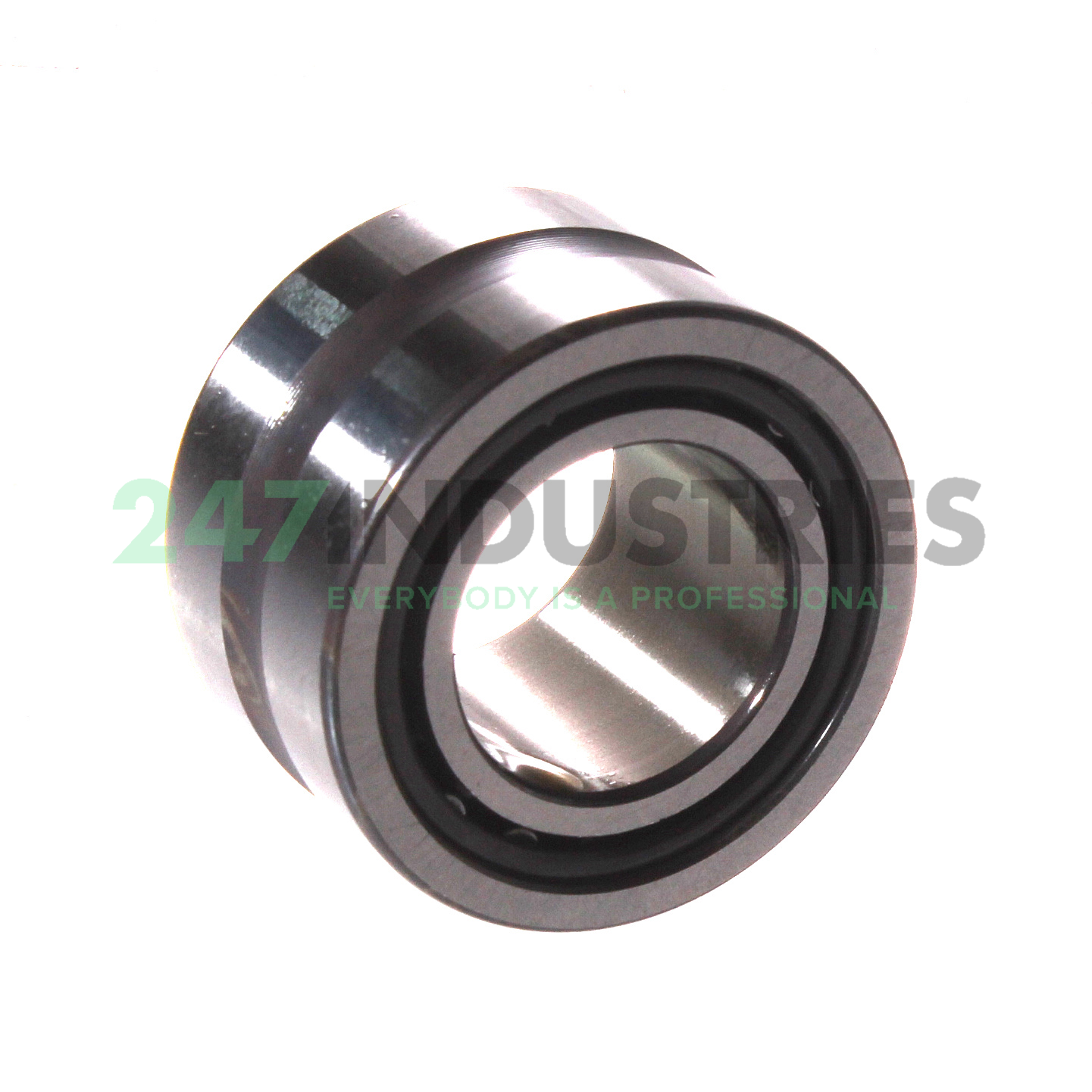

NKI15/16-XL-C3 INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 27
3. Width (B) MM 16
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.063
6. Width (B) Inch 0.6299
7. Width (b) mm 16

Suffix description

1. XL X-Life
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 289 pcs
2. Brand INA
3. Item number NKI15/16-XL-C3 INA
4. Also known as 0507619600030
   NA152716-C3
   NBI152716-C3
   NKI15/16-C3
   NKJ15/16-A-C3
   TAFI152716-C3

5. EAN 4012802734270
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.039

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 17400
2. Limiting speed (n G) 21600
3. Reference speed (n ϑr) 12400
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
