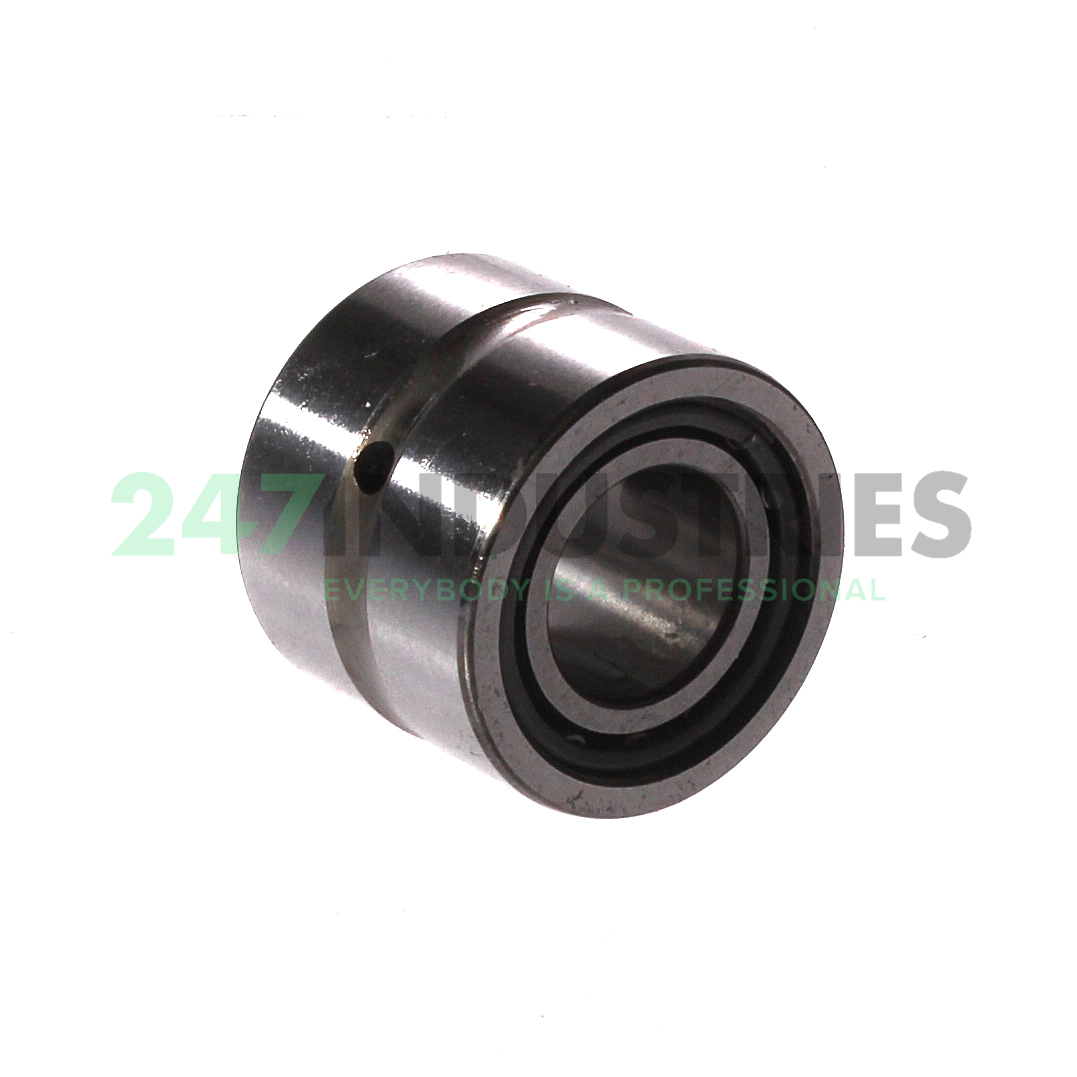

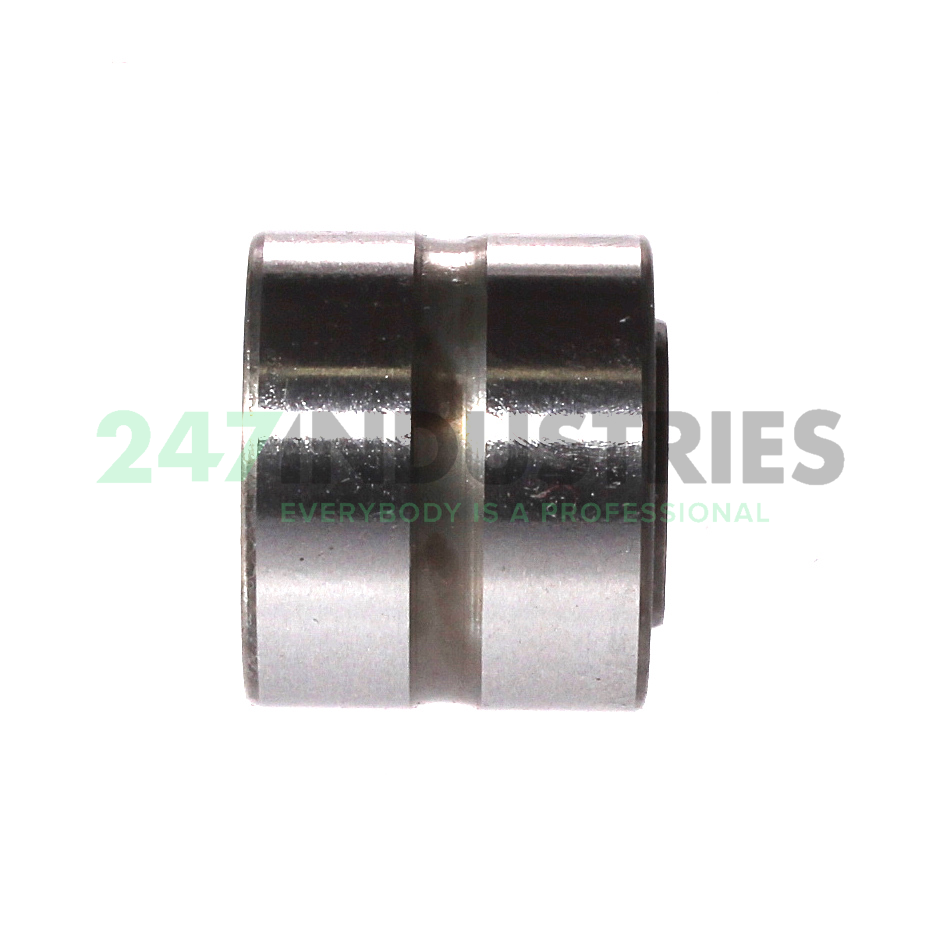

NKI12/20-XL INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 24
3. Width (B) MM 20
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.9449
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. XL X-Life

Technical details

1. Availability 171 pcs
2. Brand INA
3. Item number NKI12/20-XL INA
4. Also known as 0507619430000
   NA122420
   NKI12/20
   NKJ12/20A
   TAFI122420

5. EAN 4012802734249
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.042

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 18800
2. Radial Dynamic Load Rating Cr (N) 16300
3. Limiting speed (n G) 23200
4. Reference speed (n ϑr) 14200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series
