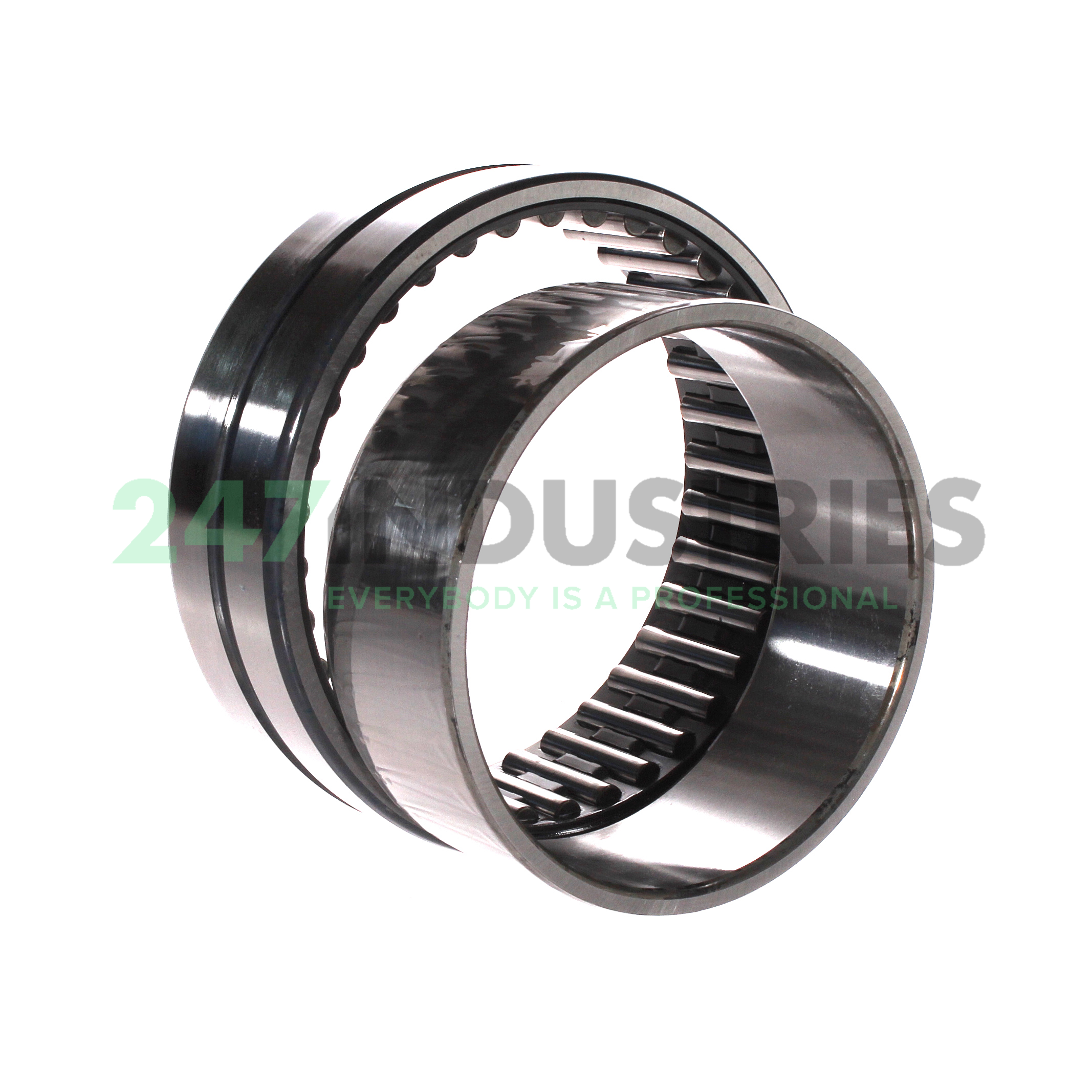

NKI100/40-XL INA

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 130
3. Width (B) MM 40
4. Inner (d) Inch 3.937
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.5748
7. Width (b) mm 40

Suffix description

1. XL X-Life

Technical details

1. Availability 15 pcs on Tue 26 May
2. Brand INA
3. Item number NKI100/40-XL INA
4. Also known as 0507629580000
   NA10013040
   NKI100/40
   NKJ100/40A
   TAFI10013040

5. EAN 4012802652536
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 1.33

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 290000
2. Radial Dynamic Load Rating Cr (N) 143000
3. Limiting speed (n G) 4200
4. Reference speed (n ϑr) 2600
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series
