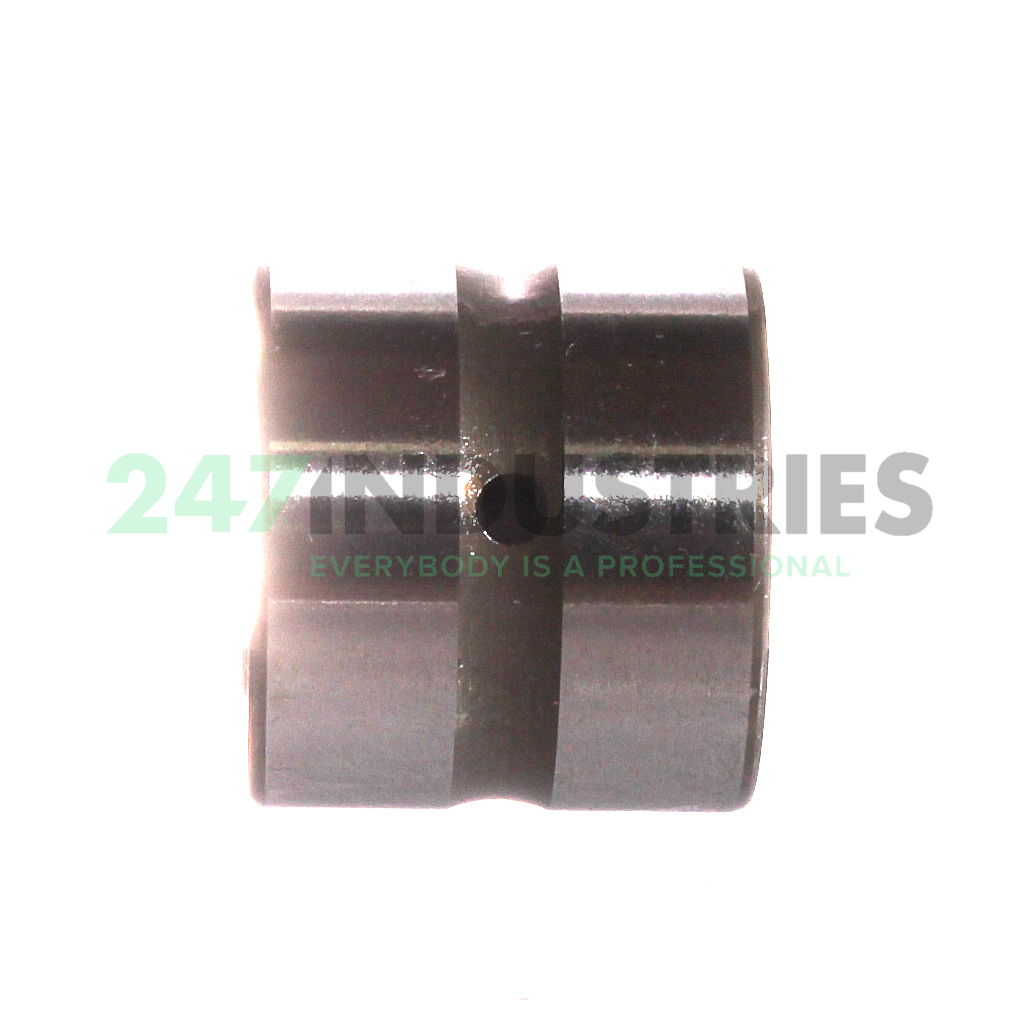

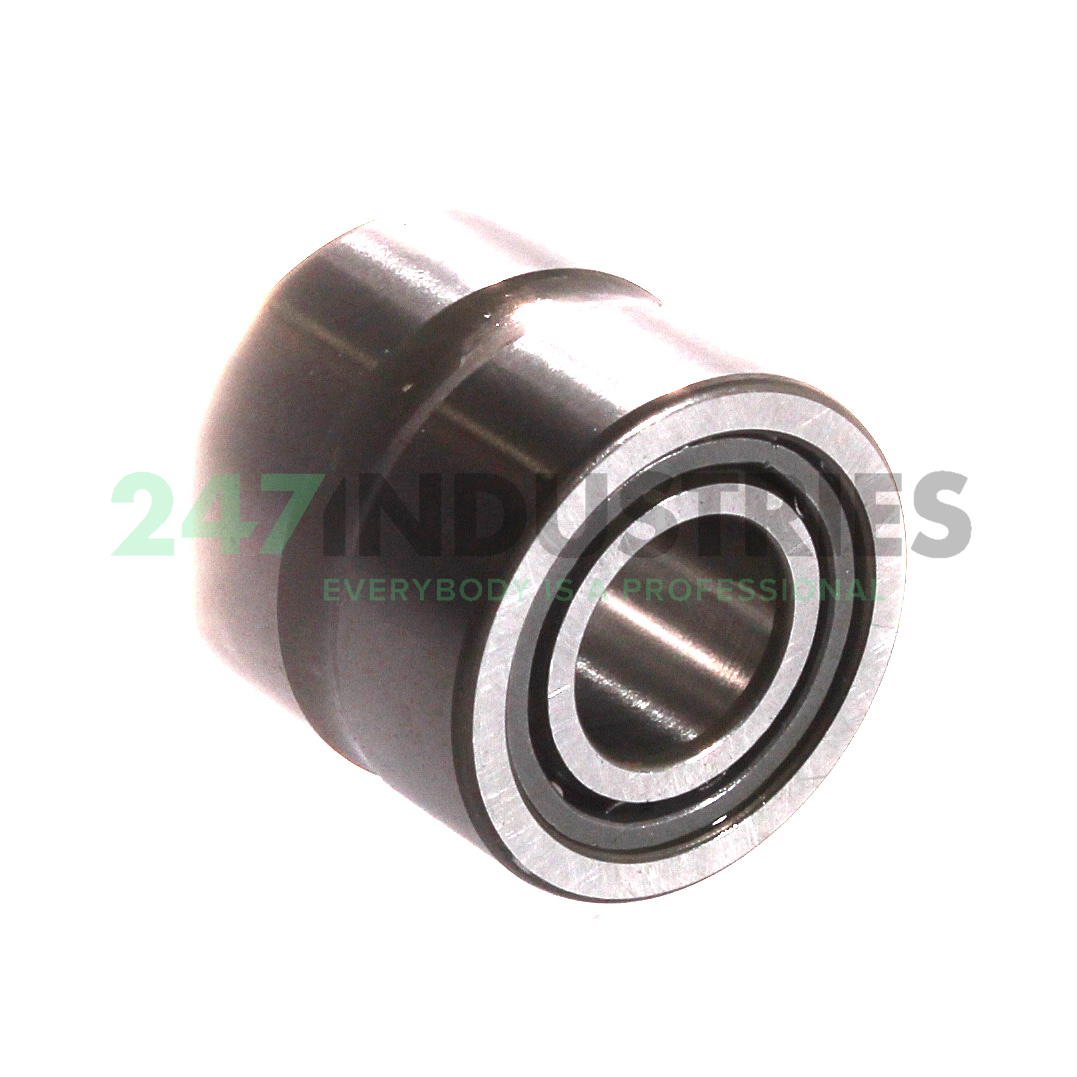

NKI10/20-XL INA

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 22
3. Width (B) MM 20
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 0.8661
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. XL X-Life

Technical details

1. Availability 39 pcs
2. Brand INA
3. Item number NKI10/20-XL INA
4. Also known as 0507617220000
   NA102220
   NKI10/20
   NKJ10/20A
   TAFI102220

5. EAN 4012802734218
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.037

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15600
2. Radial Dynamic Load Rating Cr (N) 14500
3. Limiting speed (n G) 24600
4. Reference speed (n ϑr) 16100
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NKI, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
